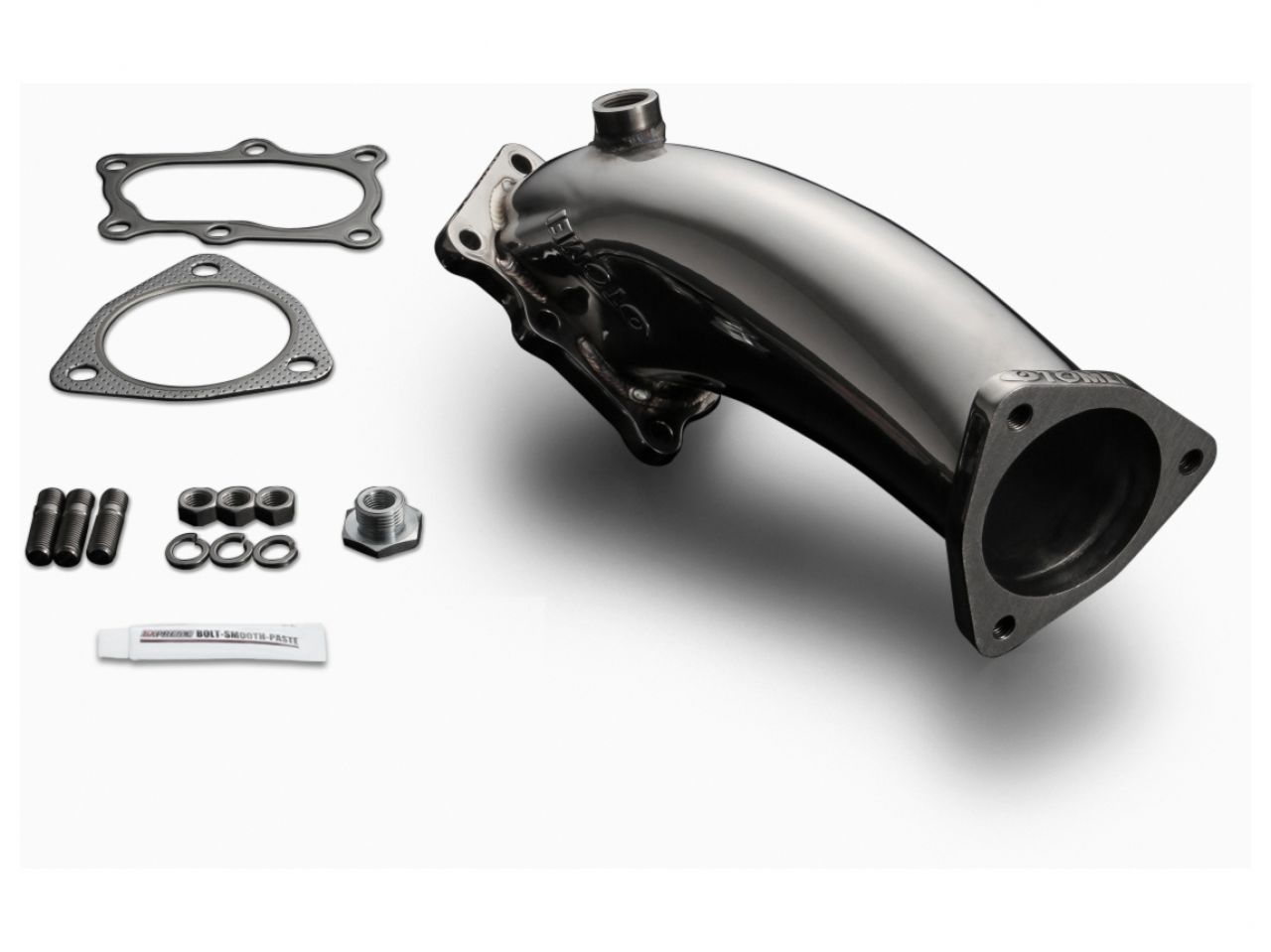

TURBINE OUTLET PIPE KIT EXPREME RB25DET/RB20DET (Previous Part Number 422001)
With a smooth inner walls, high flow capacity, easy to install flange design for an easy direct bolt on application. Compatible with the stock turbo and the Tomei ARMS Turbo will contribute with improving the power output. Designed to suit a ¦76.3mm front pipe.
- Category: Exhaust Turbine Outlet Pipe
- Engine: RB25,RB20
- Weight (lb): 6
- Dimension (inch):13x7x7

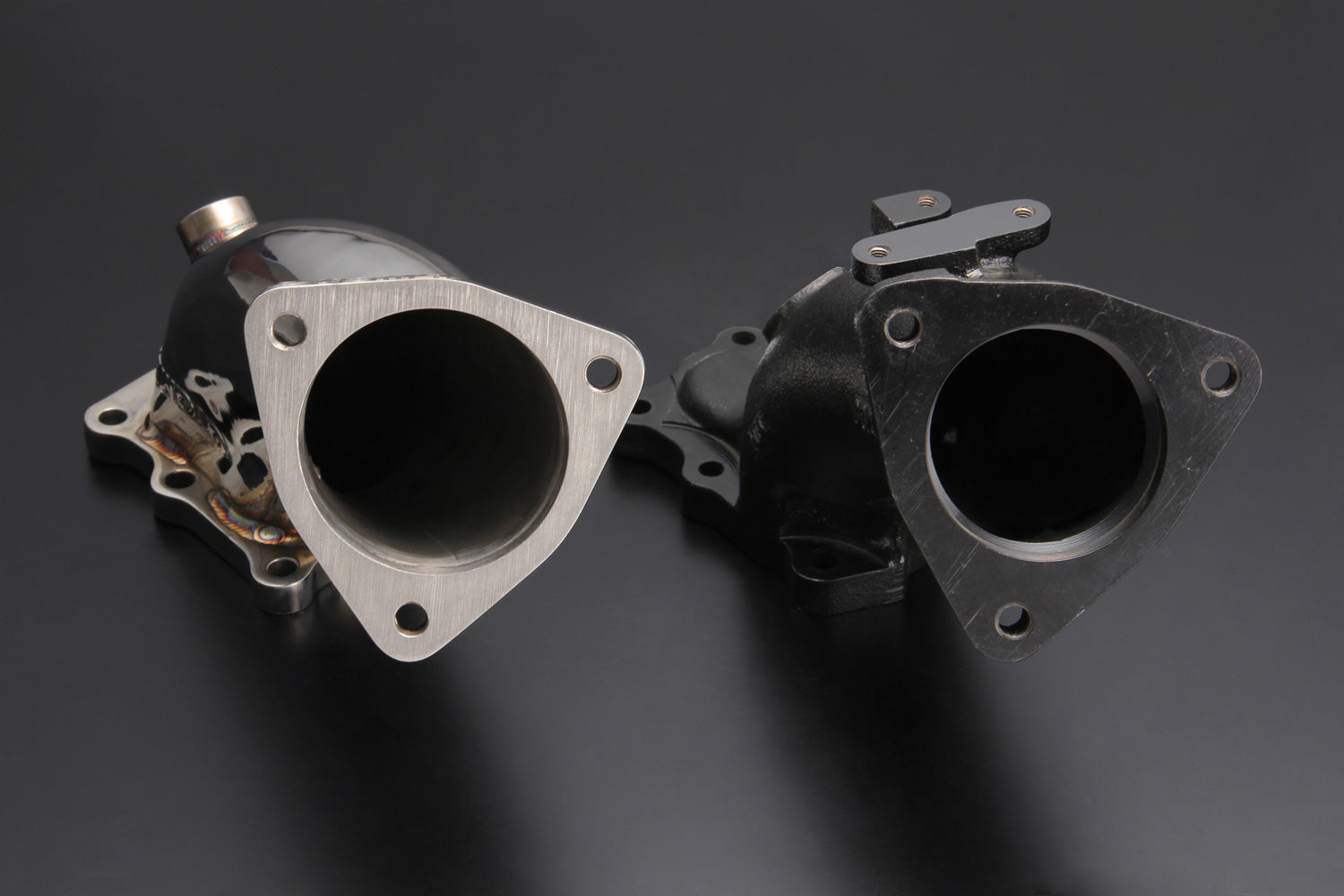

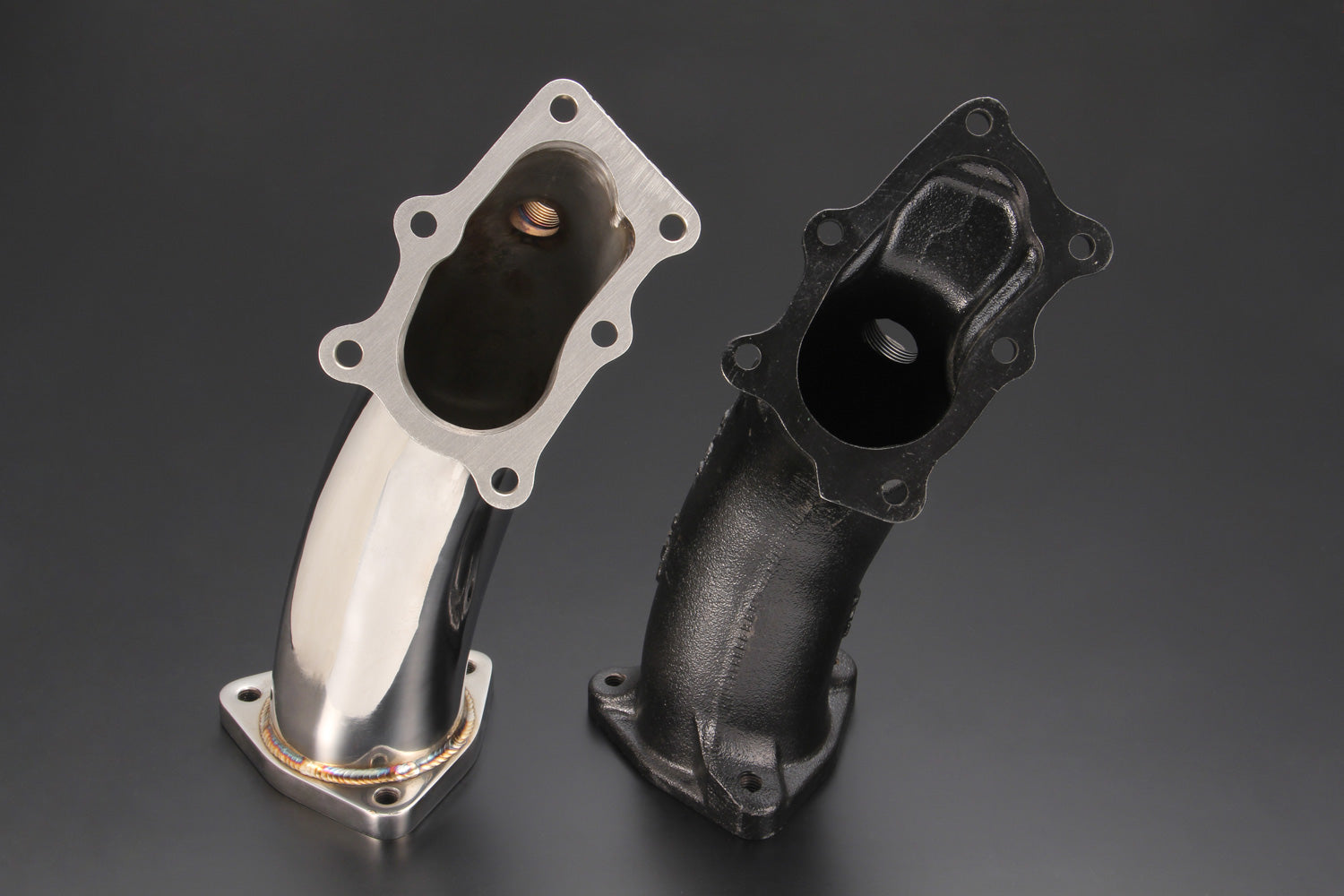

WIDE MOUTH, STEPLESS SMOOTH PORTING
The stock outlet pipes mouth is partially blocked at the port bypass side. This design is for low engine speed response. We've enlarged this section to improve power gains. By optimizing the shape of the enlarged area, we were able to prevent the loss of both torque and power in the low engine speed range.

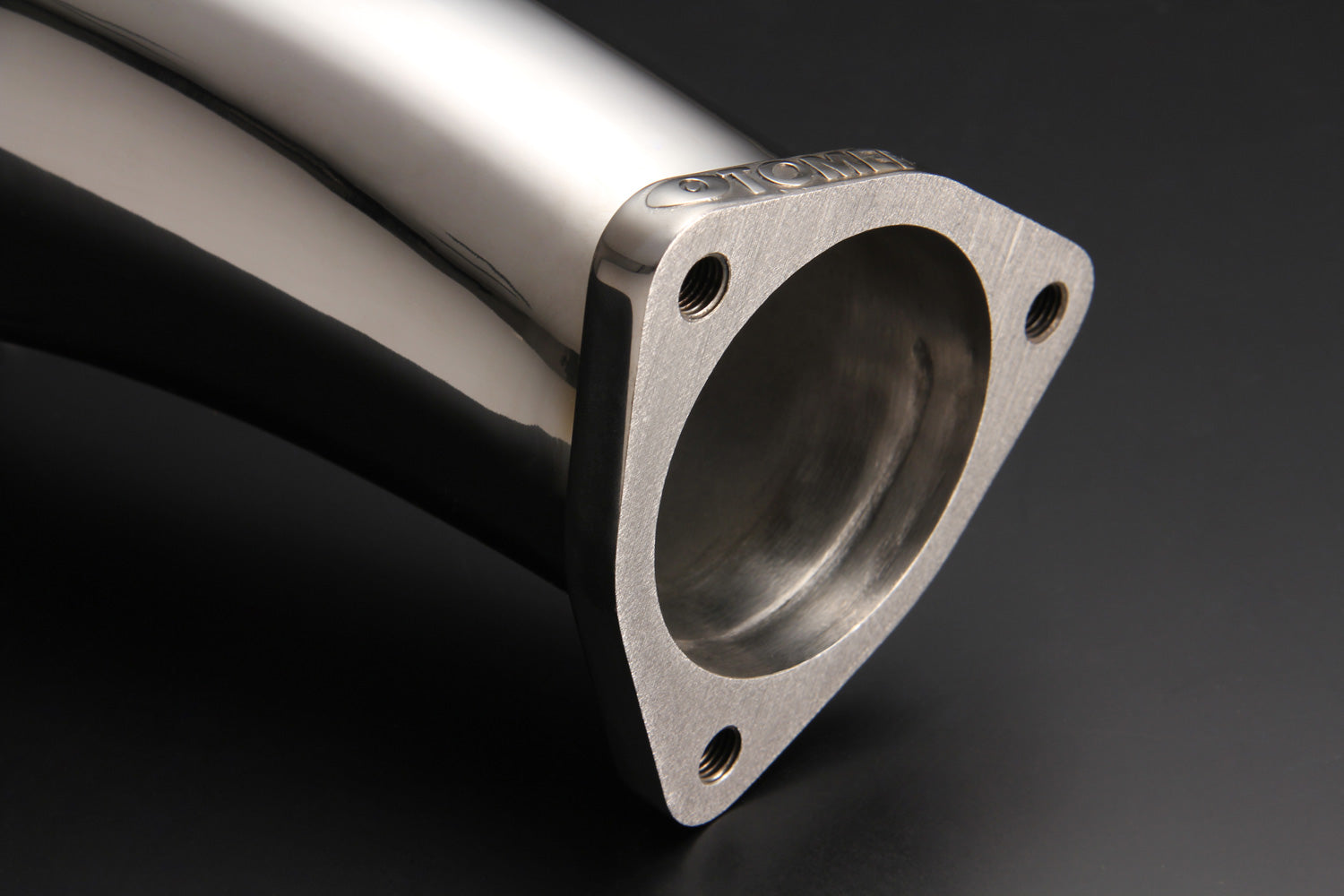

3 INCH (Æ76.3mm) COMPATIBLE

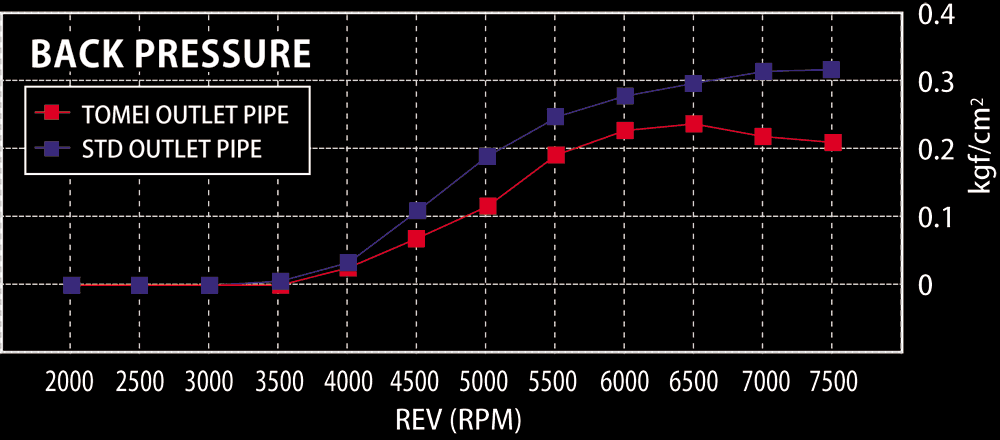

The internal diameter has been enlarged by 120%. This will significantly drop exhaust back pressure.
| |
MATERIAL |
EXIT DIAMETER ¦ |
VOLUME
(cc) |
FLANGE THICKNESS(mm) |
WEIGHT (kg) |
| TOMEI |
SUS304 |
76.3 |
1050 |
12.0 |
1.55 |
| STD |
STEEL |
60.0 |
750 |
13.8 |
2.25 |
|
|
| |
| APPLICATION |
PART NUMBER |
R31,R32, C32,C33, A31, Z31
RB20DET POWERED VEHICLES |
TB6020-NS06A |
R33,R34, C34,C35,WC34
RB25DET POWERED VEHICLES |
|
|
| |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1991 - 1998 |
Nissan |
240SX |
LE |
| 1989 - 1998 |
Nissan |
240SX |
SE, Base |
| 1989 - 1990 |
Nissan |
240SX |
XE |
Will these fit my car? We can only confirm fitment for the vehicles listed above pertaining to the tile, content, and description. For questions or concerns regarding fitment, reach out to us via phone or text. 📞(831)-222-0779
