Tomei LSD Kit Technical Trax Advance 2Way MAZDA
Regular price
$890.00 USD
Regular price
$990.00 USD
Sale
Sale price
$890.00 USD
Couldn't load pickup availability
Product Details
- Type Differential
- Vendor Tomei
- SKU 1E4FQ
Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779
Like this product? Share via the links below!
Lsd Kit Technical Trax Advance 2Way MAZDA
Category | Engine | Parts Number |
NA6 MIATA ZA2 | B6 | TC101A-MZZA2 |
NB MIATA ZB2 | 13B;BP-ZE;B6 | TC101A-MZZB2 |
RX-7 FD3S ZC2 | 13B | TC101A-MZZC2 |
RX-7 FC3S VISCOUS ZD2 | 13B | TC101A-MZZD2 |
NC MIATA ZE2 | LF-VE | TC101A-MZZE2 |
Descriptions:
1. TC101A-MZZA2
The T-TRAX ADVANCE is the most effective LSD unit & has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting.
The friction clutch discs also have a larger surface area, furthermore with the use of the coil spring discs and the high setting of initial torque which is raised higher than any other brands in the market today. The high response reacts to accelerator work instantaneously, and the quality cam angle of the pressure ring was optimized, ideal for drift and circuit guaranteed.
2 Way LSD locks very well with being ON or OFF the throttle. At Tomei, they have chosen an LSD design and product range to suit FR (RWD) sports cars to help revive the real sports feeling in these cars. Now drivers can drive their cars the way they were mean to be driven.
Please specify transmission type below
Features:
- New Design Friction Discs
- Largest Surface Area Possible
- Guaranteed Transfer of Power
- Minimal Maintenance
- Unmatched Durability
Vehicle Specific Information:
- Number of Discs: 12
- Disc Size: Super Small
- OEM Differential: Open / Viscous
- Fits: 90-93 Mazda Miata 1.6L
Fitment
- Mazda Miata 1990-1993
2. TC101A-MZZB2
The T-TRAX ADVANCE is the most effective LSD unit & has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting.
The friction clutch discs also have a larger surface area, furthermore with the use of the coil spring discs and the high setting of initial torque which is raised higher than any other brands in the market today. The high response reacts to accelerator work instantaneously, and the quality cam angle of the pressure ring was optimized, ideal for drift and circuit guaranteed.
2 Way LSD locks very well with being ON or OFF the throttle. At Tomei, they have chosen an LSD design and product range to suit FR (RWD) sports cars to help revive the real sports feeling in these cars. Now drivers can drive their cars the way they were mean to be driven.
Please specify transmission type below
Features:
- New Design Friction Discs
- Largest Surface Area Possible
- Guaranteed Transfer of Power
- Minimal Maintenance
- Unmatched Durability
Vehicle Specific Information:
- Number of Discs: 12
- Disc Size: Medium
- OEM Differential: Open / Torsen
- Fits: 94-05 Mazda Miata 1.8L
Fitment
- Mazda Miata 1990, 1994-1997, 1999-2005
3. TC101A-MZZC2
The T-TRAX ADVANCE is the most effective LSD unit & has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting.
The friction clutch discs also have a larger surface area, furthermore with the use of the coil spring discs and the high setting of initial torque which is raised higher than any other brands in the market today. The high response reacts to accelerator work instantaneously, and the quality cam angle of the pressure ring was optimized, ideal for drift and circuit guaranteed.
2 Way LSD locks very well with being ON or OFF the throttle. At Tomei, they have chosen an LSD design and product range to suit FR (RWD) sports cars to help revive the real sports feeling in these cars. Now drivers can drive their cars the way they were mean to be driven.
Features:
- New Design Friction Discs
- Largest Surface Area Possible
- Guaranteed Transfer of Power
- Minimal Maintenance
- Unmatched Durability
Vehicle Specific Information:
- Number of Discs: 12
- Disc Size: Large
- OEM Differential: Open
- Fits: 86-92 Mazda RX-7 FC3S 13B
Fitments
- Mazda RX-7 1986-1992
- Mazda RX-8 2004-2011
- Mazda RX-7 1993-2002
4. TC101A-MZZD2
2.0 Way Multiple Plate Clutch LSD
The Technical Trax LSD unit is based on the multiple plate clutch design. With this design the multiple friction clutch plates are located between the side gears and the differential casing and utilize the pinion and cam gears. This is a torque proportional type LSD. In the usual differential arrangement it is connected to both left & right axles directly, when the driving force of one side differs in speed the pinion gear with the cam angle forces the clutch plates to compress and grip to in effect transfer the driving torque evenly to both axles. The T-TRAX ADVANCE has adopted this system which has proven its effectiveness as the best for 2WD applications.
12 discs / size L
External Teeth Friction Disc: 6 Plates
Internal Teeth Friction Disc: 6 Plates
Spring Disc Ex. Teeth: 2 Plates / In. Teeth: 2 Plates
Initial Torque Pre-setting: 15.0-18.0kg.m
LSD Unit Specs:
Size of ring gear bolts: M10
Number of ring gear bolts: 10
Ring gear bolts PCD: 160mm
Side flanges:
Number of teeth: 30T
Snap ring: Right side - Without / Left side - Without
Washer: Both side - Without
Snap ring groove: Right side - With / Left side - With
Includes:

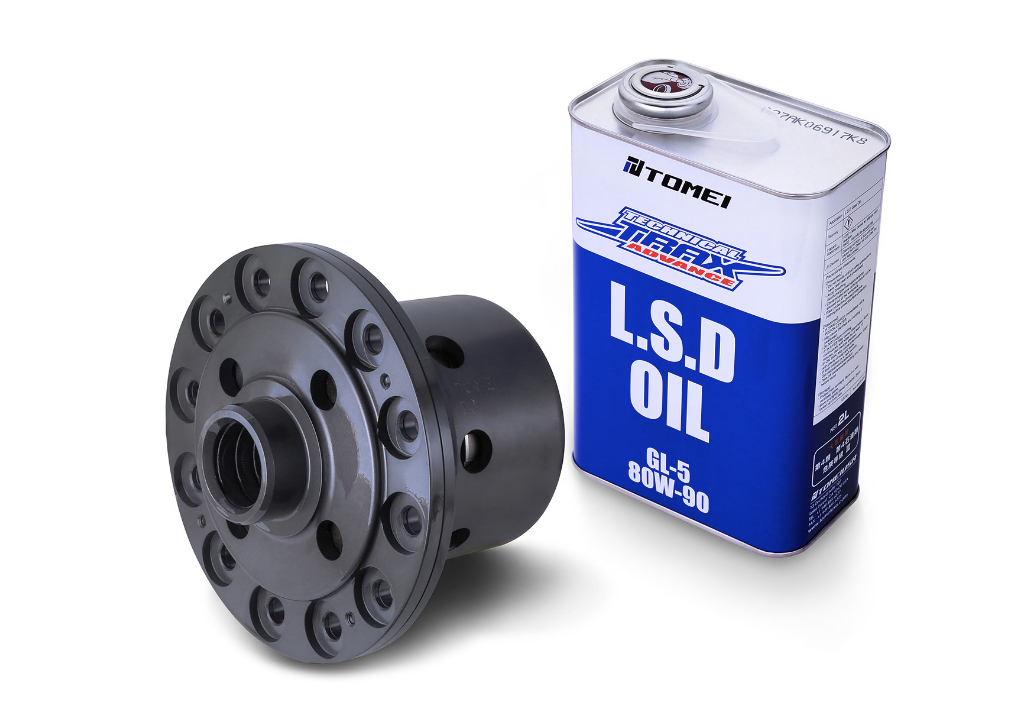

Tomei LSD x 1
2 Litters of Low Friction High Grade Oil x 1
5. TC101A-MZZE2
The T-TRAX ADVANCE is the most effective LSD unit & has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting.
The friction clutch discs also have a larger surface area, furthermore with the use of the coil spring discs and the high setting of initial torque which is raised higher than any other brands in the market today. The high response reacts to accelerator work instantaneously, and the quality cam angle of the pressure ring was optimized, ideal for drift and circuit guaranteed.
2 Way LSD locks very well with being ON or OFF the throttle. At Tomei, they have chosen an LSD design and product range to suit FR (RWD) sports cars to help revive the real sports feeling in these cars. Now drivers can drive their cars the way they were mean to be driven.
Please specify transmission type below
Features:
- New Design Friction Discs
- Largest Surface Area Possible
- Guaranteed Transfer of Power
- Minimal Maintenance
- Unmatched Durability
Vehicle Specific Information:
- Number of Discs: 8
- OEM Differential: Open
Fitment:
- Miata MX5 NC 2005-2015
