Tomei J/B Turbocharger Kit Arms RB26DETT
Regular price
$2,690.00 USD
Regular price
$2,990.00 USD
Sale
Sale price
$2,690.00 USD
Couldn't load pickup availability

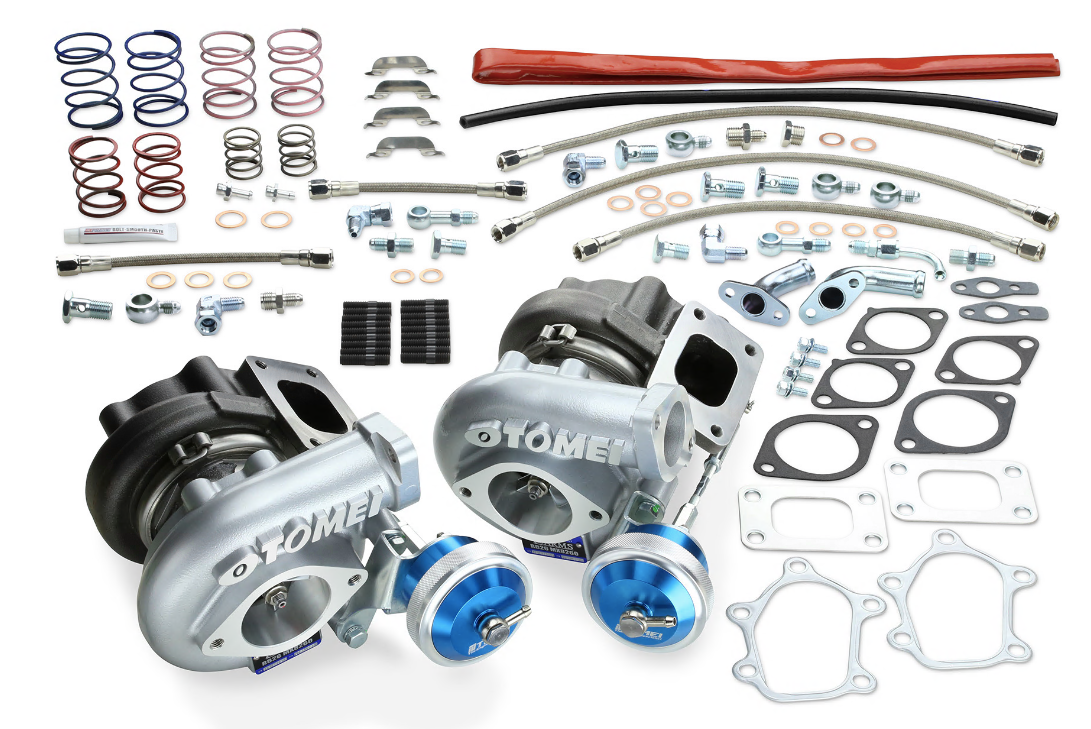

J/B Turbocharger Kit Arms
| Category | Engine | Parts Number |
| MX7655 RB26DETT | RB26 | TB401A-NS05A |
| MX8260 RB26DETT | RB26 | TB401A-NS05B |
Descriptions:
1. TB401A-NS05A
The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!
The Tomei ARMS Mx7655 Turbocharger kit for the RB26DETT is a 580HP capable kit produced soley for the RB26 powertrain, providing the best bolt-on upgrade solution for any RB equipped chassis.
The Tomei M7655 works well to suit the RB's mid-range characteristics, whilst still being a good performer up towards the higher power band. The Mx8260 however, even being a bolt on application will deliver the punch of a full peak power type turbo kit.
CNC Billet Compressor Wheel
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Compressor Wheel
- (A) IND (mm) : 50.3
- (B) ExD (mm) : 68.0
- Trim : 55
- Blades : 6
- Material : A2618
- Production : CNC Billet
Turbine Wheel
- (C) ExD (mm) : 47.5
- (D) IND (mm) : 56.0
- Trim : 72
- Blades : 12
- Material : K418
- Production : Cast
Compressor Housing
- IND (mm) : 51.3
- ExD (mm) : 38.75
- A/R : 0.74
Turbine Housing
- IND : T25
- ExD : RB26DETT
- A/R : 0.73
Initial Boost Setting
- 1.0kgf/cm2
2. TB401A-NS05B
The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!
The Tomei ARMS Mx8260 Turbocharger kit for the RB26DETT is a 650HP capable kit produced soley for the RB26 powertrain, providing the best bolt-on upgrade solution for any RB equipped chassis.
The Tomei Mx8260 delivers a higher overall power than the Mx7655, whilst being a big performer up towards the higher power band. The Mx7655 turbo produces good mid-range power and suits the RB's mid-range characteristics
CNC Billet Compressor Wheel
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Rate Billet Actuator
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Compressor Wheel
- (A) IND (mm) : 52.6
- (B) ExD (mm) : 68.0
- Trim : 60
- Blades : 6
- Material : A2618
- Production : CNC Billet
- (C) ExD (mm) : 58.8
- (D) IND (mm) : 67.0
- Trim : 77
- Blades : 11
- Material : K418
- Production : Cast
- IND (mm) : 53.5
- ExD (mm) : 38.75
- A/R : 0.74
- IND : T25
- ExD : RB26DETT
- A/R : 0.73
*** Proposition 65
WARNING: Cancer and Reproductive Harm
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1998 | Nissan | 240SX | SE, Base |
| 1989 - 1990 | Nissan | 240SX | XE |
