Tomei J/B Turbocharger Kit Arms KA24DE

J/B Turbocharger Kit Arms

Descriptions:

1. TB401A-NS16C

The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!

With over 20 years since it's initial debut Nissan enthusiasts are continuously looking for high quality performance parts to tune their KA24DE. At TOMEI, we wanted to see more users enjoy tuning their engines, so we continued development on new products. After many years of testing and production Tomei now has all components available to turbocharge your KA24.

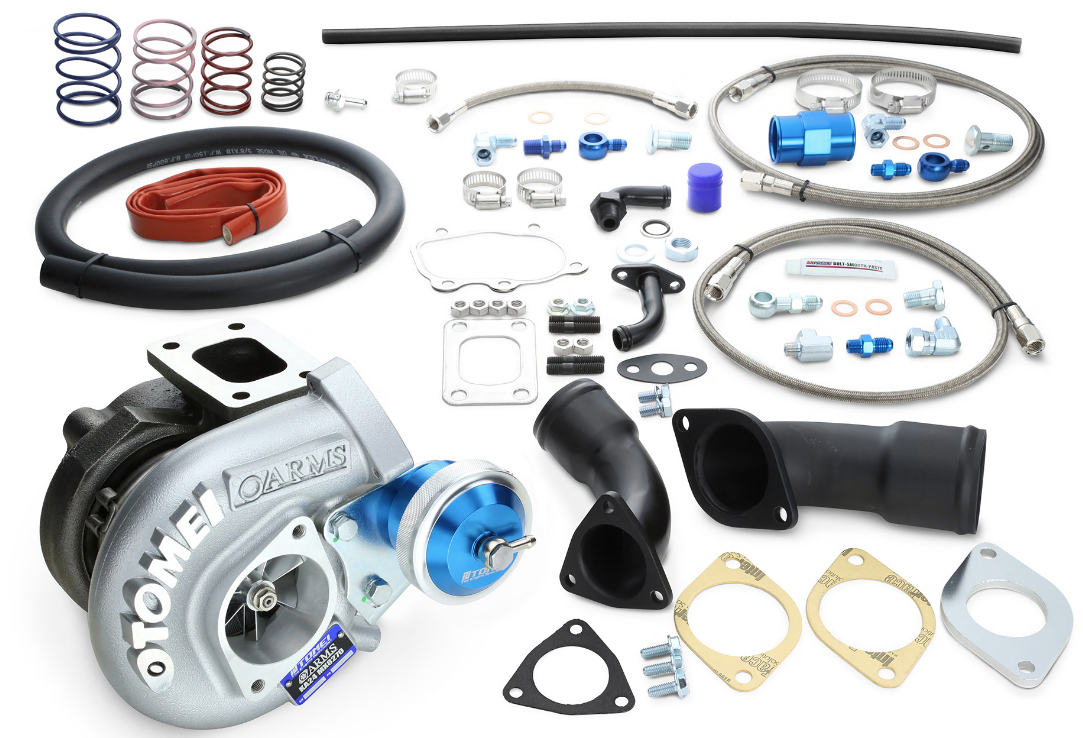

The Tomei ARMS Mx7960 Turbocharger Kit includes turbocharger, and all associated gaskets, lines, and hardware needed for install on your KA24. This turbocharger kit is rated for an approximate 400HP, depending on supporting mods.

The Tomei Mx7960 works well to suit the KA's mid-range characteristics, whilst still being a good performer up towards the higher power band. The Mx8270 however, even being a bolt on application will deliver the punch of a full peak power type turbo kit.

CNC Billet Compressor Wheel

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Range Billet Actuator

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Compressor Wheel

• (A) IND (mm) : 52.6
• (B) ExD (mm) : 68
• Trim : 60
• Blades : 6
• Material : A2618
• Production : CNC Billet

Turbine Wheel

• (C) ExD (mm) : 54
• (D) IND (mm) : 61
• Trim : 72
• Blades : 11
• Material : K418
• Production : Cast

Compressor Housing

• IND (mm) : 60
• ExD (mm) : 38.5
• A/R : 0.62

Turbine Housing

• IND : T25
• ExD : SR20DET
• A/R : 0.57

Initial Boost Setting

• 1.0kgf/cm2

2. TB401A-NS16D

The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!

With over 20 years since it's initial debut Nissan enthusiasts are continuously looking for high quality performance parts to tune their KA24DE. At TOMEI, we wanted to see more users enjoy tuning their engines, so we continued development on new products. After many years of testing and production Tomei now has all components available to turbocharge your KA24.

The Tomei ARMS Mx8270 Turbocharger Kit includes turbocharger, and all associated gaskets, lines, and hardware needed for install on your KA24. This turbocharger kit is rated for an approximate 450HP, depending on supporting mods.

The Tomei Mx8270 delivers a higher overall power than the Mx7960, whilst being a big performer up towards the higher power band. The Mx7960 turbo produces good mid-range power and suits the KA's mid-range characteristics.

CNC Billet Compressor Wheel

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Range Billet Actuator

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Compressor Wheel

• (A) IND (mm) : 59
• (B) ExD (mm) : 76.2
• Trim : 60
• Blades : 6
• Material : A2618
• Production : CNC Billet

Turbine Wheel

• (C) ExD (mm) : 58.8
• (D) IND (mm) : 67
• Trim : 77
• Blades : 11
• Material : K418
• Production : Cast

Compressor Housing

• IND (mm) : 53.5
• ExD (mm) : 38.75
• A/R : 0.62

Turbine Housing

• IND : T25
• ExD : SR20DET
• A/R : 0.57

Initial Boost Setting

• 1.0kgf/cm2

3. TB401A-NS16PK

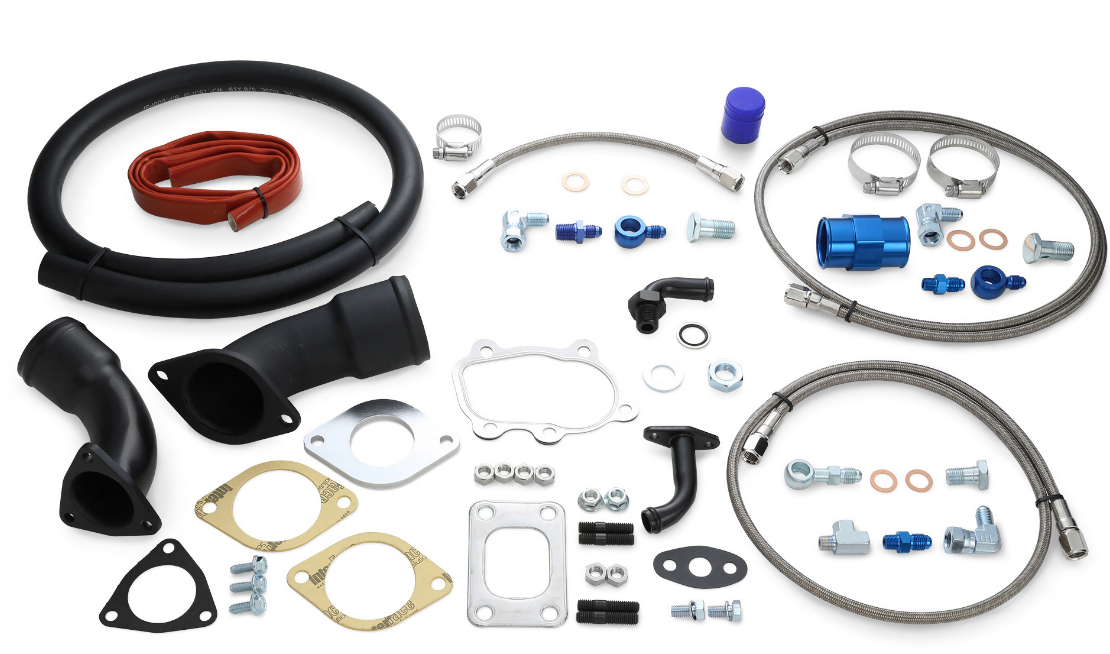

Tomei's provided tuners with a proper hardware solution when utilizing Tomei's ARMS turbochargers. This kit will provides necessary oil lines and additional accessories to ensure your turbocharger conversion has everything it needs.

Features

• Hardware Kit for Tomei ARMS turbocharger covnersion applications
• Provides tuners with additional turbocharging solutions outside of M7960 and M8270 turbochargers

Fitment

• Nissan 240SX S13 | S14 KA24DE Engine 89-98

*** Note(s):

• Pictures used for marketing purposes only, actual product may vary
