Tomei

Tomei Full Titanium Muffler Kit Expreme Ti JZX100

In stock - 15 items available
SKU: 1Q17N
No reviews
$1,160.00 USD
$1,290.00 USD Sale $1,160.00 USD

Product Details

  • Type Exhaust
  • Vendor Tomei
  • SKU 1Q17N
  • Barcode 650229662635

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65

Application :

• JZX100 CRESTA 1JZ-GTE EARLY/LATE AT/MT

• JZX100 CHASER 1JZ-GTE EARLY/LATE AT/MT

• JZX100 MARK II 1JZ-GTE EARLY/LATE AT/MT



Specification

• MATERIAL: TTi

• MAIN PIPE A DIAMETER: 3.15inch(80mm)

• MAIN PIPE THICKNESS: 1.0mm

• SILENCER DIAMETER: 5.98inch(152mm)

• SILENCER THICKNESS: 1.0mm

• EXIT DIAMETER: 4.53inch(115mm)

• EXIT THICKNESS: 1.0mm

• FLANGE THICKNESS: 8.0mm

• WEIGHT: 15.43lbs(7.0kg)

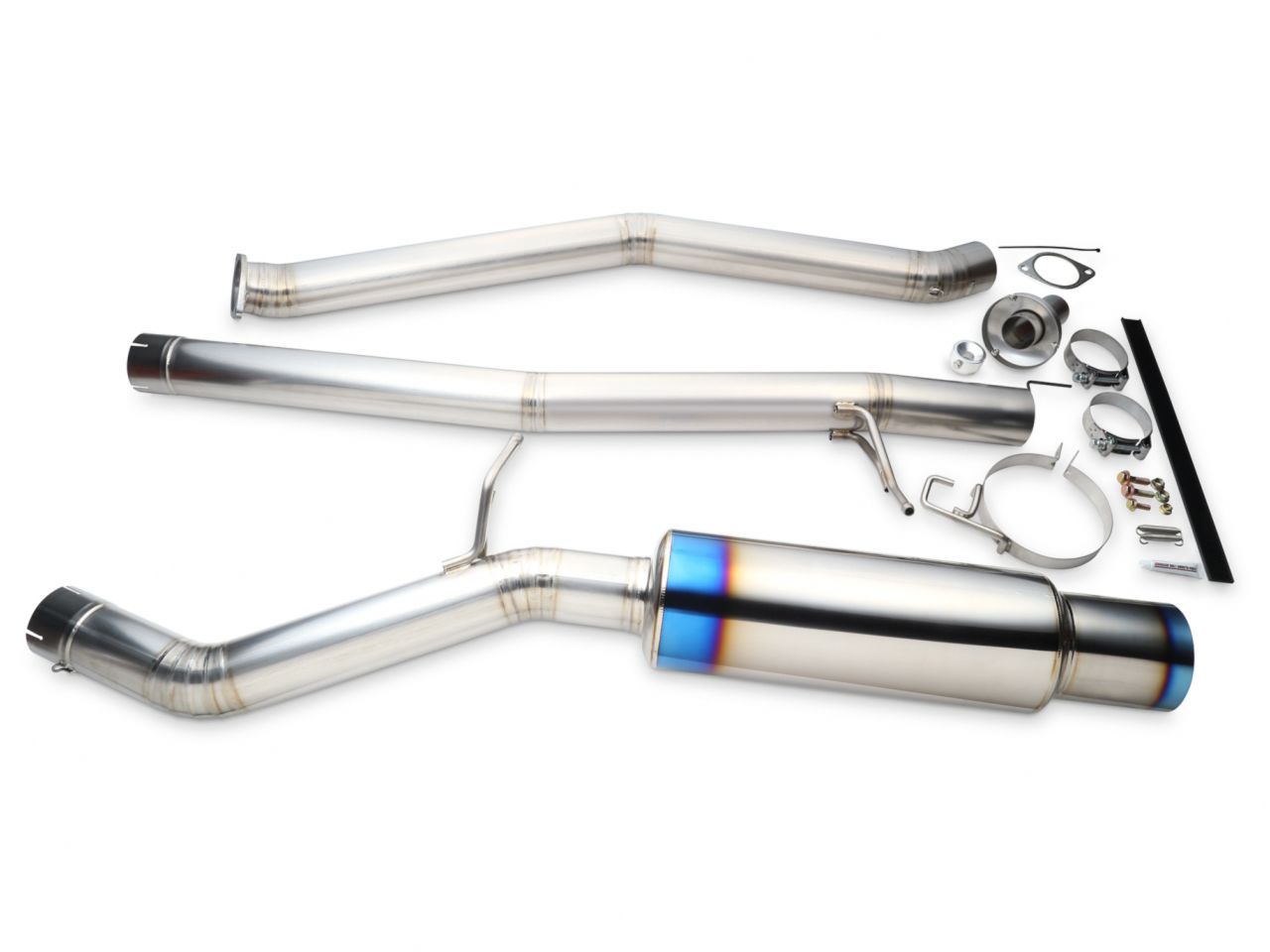

Kit Content

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • SILENCER (1)
  • GASKET (1)
  • FLANGE BOLT M10 L=35mm P=1.25mm (2)
  • FLANGE NUT M10 P=1.25mm (2)
  • CLAMP BAND (2)
  • SPRING (2)
  • SILENCER BAND (1)
  • SILENCER BAND RUBBER (1)
  • FLANGE BOLT M8 L=25mm P=1.25mm (1)
  • FLANGE NUT M8 P=1.25mm (1)
  • SOUND REDUCER ver.2 (1)
  • BUTTON BOLT (3)
  • FLANGE NUT (3)
  • ALLEN KEY (1)
  • ZIP TIE (1)
  • BOLT SMOOTH PASTE (1)
