*Note* Images are for reference; actual product may vary in color, size, or design.

Tomei

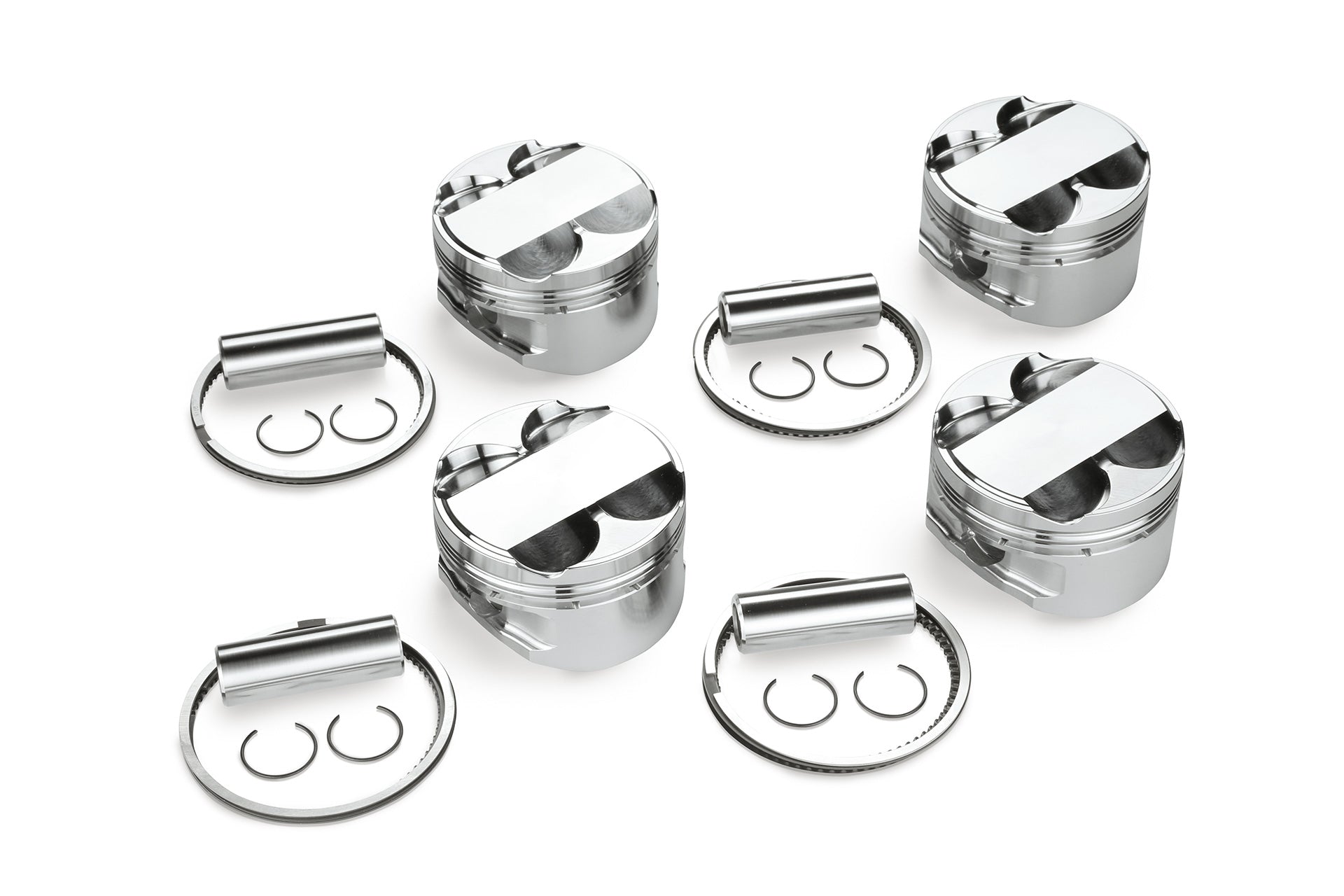

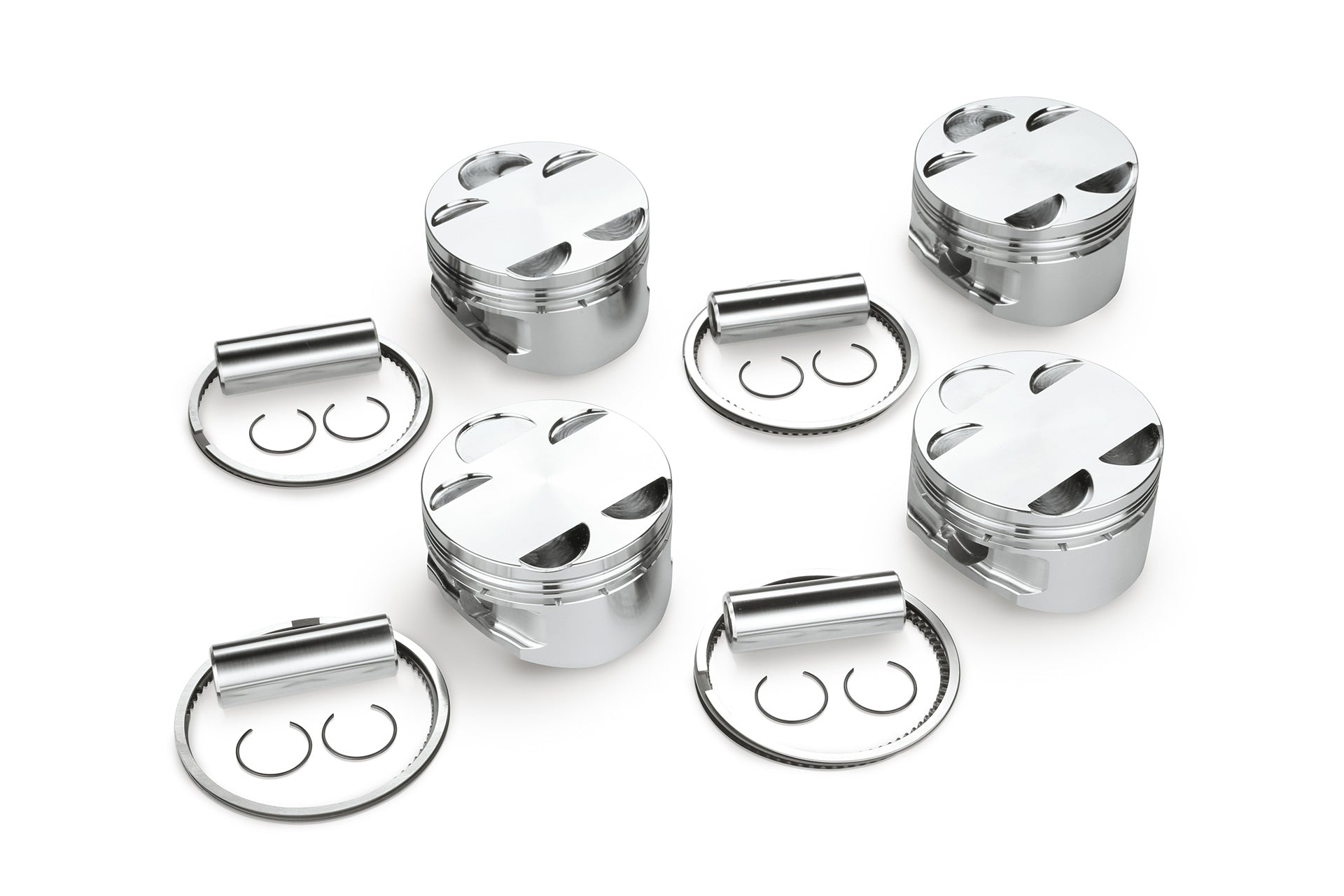

Tomei Forged Piston Kit 4A-G

In stock - 1 items available

No reviews

$1,080.00 USD

~~$1,200.00 USD~~ Sale $1,080.00 USD

Option

16V 82.00mm CH27.70 (1.8) CP 20V 82.00mm CH27.70 (1.8) CP

Payment details

Shop with confidence: flexible payment options, including major credit cards, financing, and trusted online payment providers, all protected by advanced encryption.

Product Details

Type Pistons
Vendor Tomei
SKU 1WDTL

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(619) 929-0590

Like this product? Share via the links below!

Tomei Forged Piston Kit 4A-G

Category	Engine	Parts Number
82.00mm CH27.70 (1.8) CP	4AG-16V	TA202A-TY01AP
82.00mm CH27.70 (1.8) CP	4AG-20V	TA202A-TY02AP

Part Number	TA202A-TY02AP	TA202A-TY01AP
BORE (mm)	82.00 (OEM +1.0)	82.00 (OEM +1.0)
PIN DIA. (mm)	20	20
PIN LENGTH (mm)	57	60
CLIP INNNER DIA.	20	20
VALVE RECESS	WITH	WITH
COMP.HEIGHT (mm)	27.70 (OEM -3.0)	27.70 (OEM -3.0)
PISTON DOME VOL. (cc)	-1.38	-0.32
PISTON WEIGHT (g)	265	277
PIN WEIGHT (g)	90.4	90.4
TOTAL WEIGHT (g)	355.4	367.4
TOP RING (mm)	1.00 x 3.20	1.00 x 3.20
SECOND RING (mm)	1.20 x 3.5	1.20 x 3.5
OIL RING (mm)	2.8 x 2.50	2.8 x 2.50
MATERIAL	A2618	A2618
