Tomei

Tomei Forged Piston Kit 2JZ-GTE

In stock - 3 items available

SKU: 1Q11X

No reviews

$1,403.00 USD

~~$1,560.00 USD~~ Sale $1,403.00 USD

Option 87.00mm CH30.00 (3.4) 87.00mm CH30.00 (3.4) CP 87.00mm CH29.50 (3.6) 87.00mm CH29.50 (3.6) CP

Product variants

Product Details

Type Pistons
Vendor Tomei
SKU 1Q11X
Barcode 650229655699

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

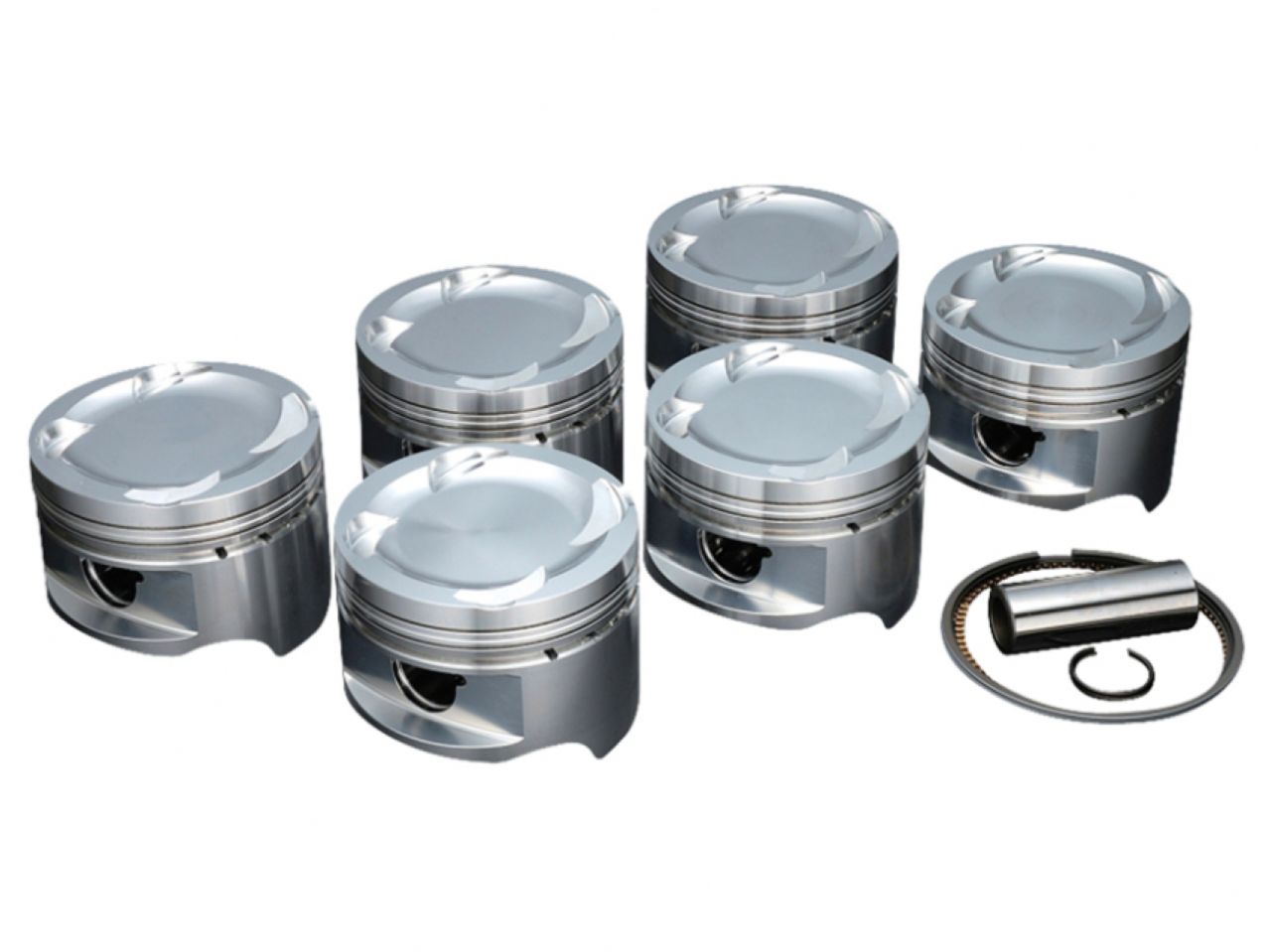

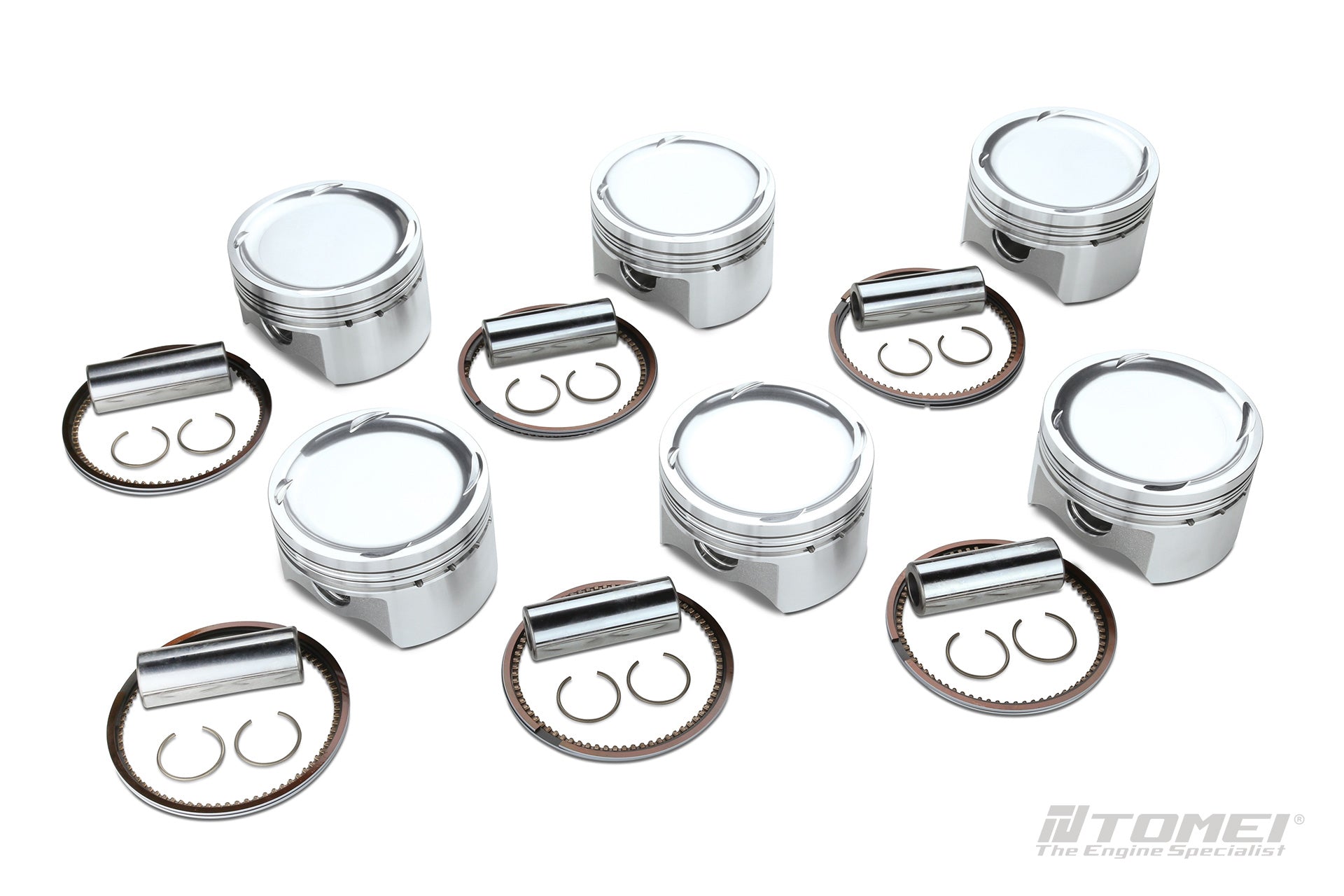

Forged Piston Kit 2JZ-GTE

Category: Cylinder Block Piston

Category	Parts Number
87.00mm CH30.00 (3.4)	TA202A-TY03A
87.00mm CH30.00 (3.4) CP	TA202A-TY03AP
87.00mm CH29.50 (3.6)	TA202A-TY03B
87.00mm CH29.50 (3.6) CP	TA202A-TY03BP

Part Number	TA202A-TY03A	TA202A-TY03B	TA202A-TY03AP	TA202A-TY03BP
BORE (mm)	87.00 (OEM +1.0)	87.00 (OEM +1.0)	87.00 (OEM +1.0)	87.00 (OEM +1.0)
PIN DIA. (mm)	22	22	22	22
PIN LENGTH (mm)	60	60	64	64
CLIP INNNER DIA.	22	22	22	22
VALVE RECESS	WITH	WITH	WITH	WITH
COMP.HEIGHT (mm)	30.00 (OEM -4.0)	29.50 (OEM -4.5)	30.00 (OEM -4.0)	29.50 (OEM -4.5)
PISTON DOME VOL. (cc)	-17.5	-22.6	-17.7	-22.6
PISTON WEIGHT (g)	299.6	278.5	326	319
PIN WEIGHT (g)	121.5	121.5	133	133
TOTAL WEIGHT (g)	421.1	400	459	452
TOP RING (mm)	1.20 x 3.05	1.20 x 3.05	1.20 x 2.9	1.20 x 2.9
SECOND RING (mm)	1.20 x 3.90	1.20 x 3.90	1.20 x 3.0	1.20 x 3.0
OIL RING (mm)	2.50 x 2.95	2.50 x 2.95	2.0 x 2.7	2.0 x 2.7
MATERIAL	A4032	A4032	A2618	A2618
