Tomei

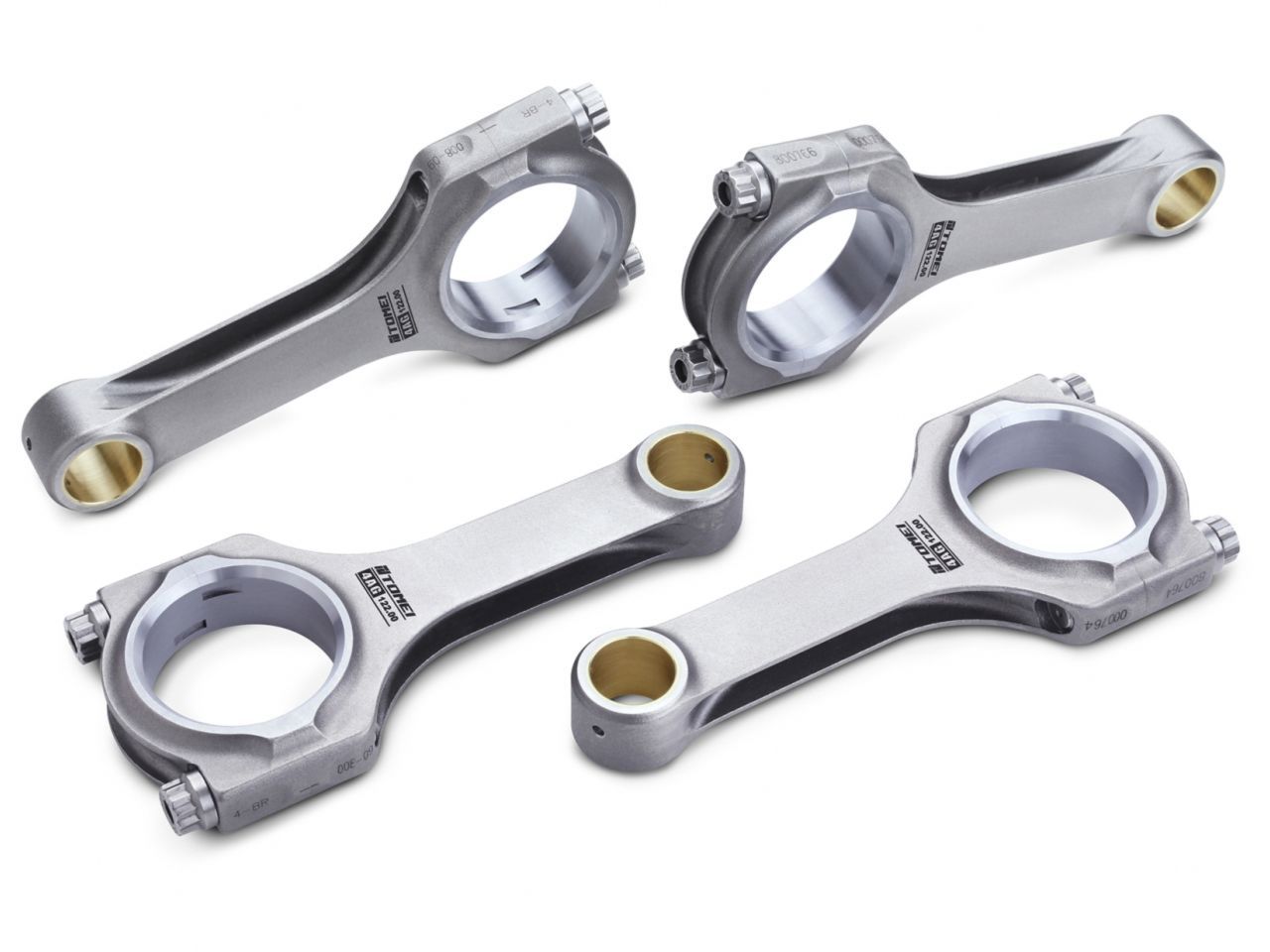

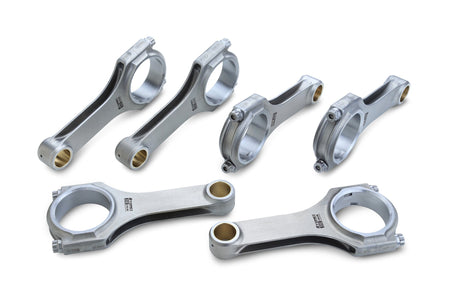

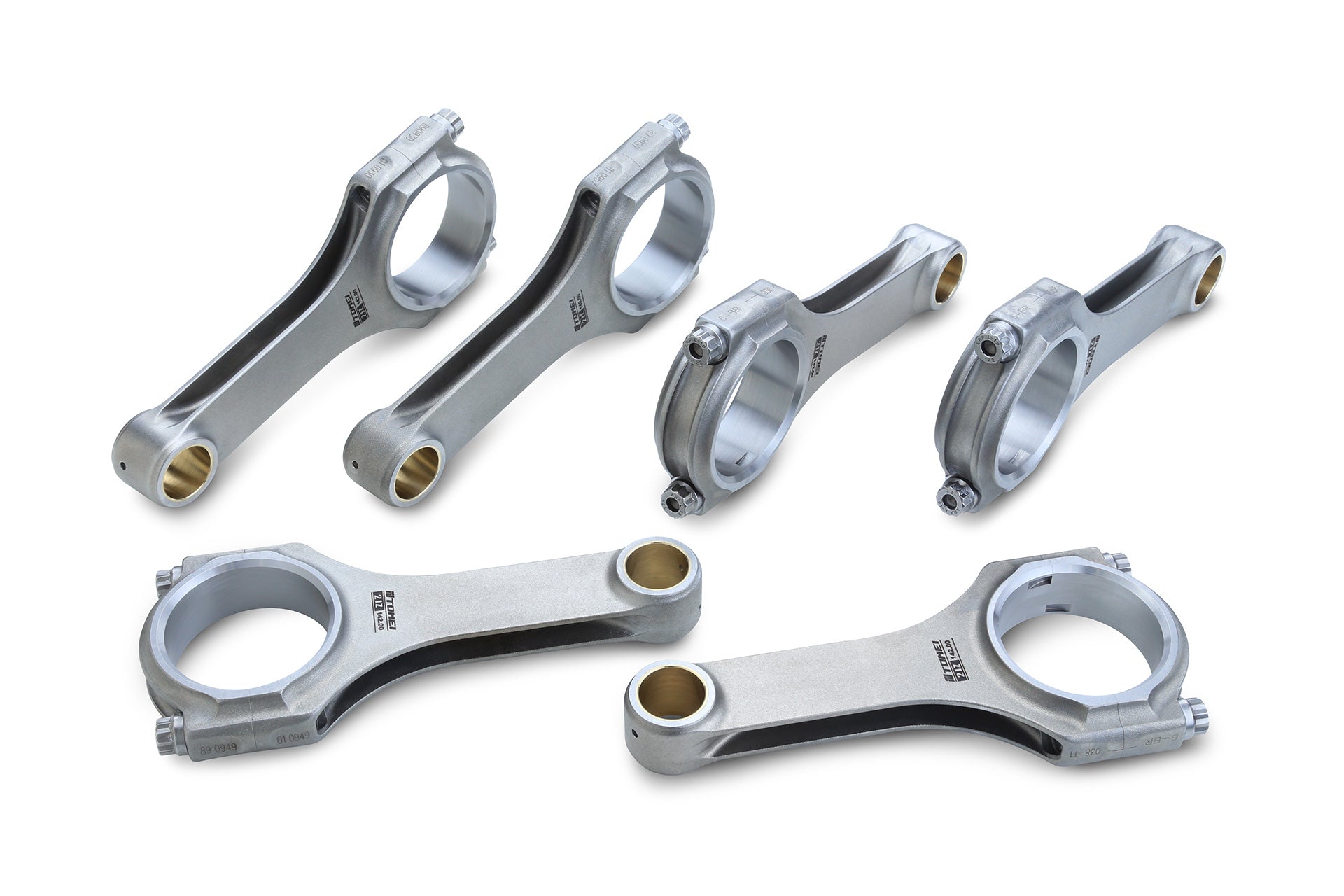

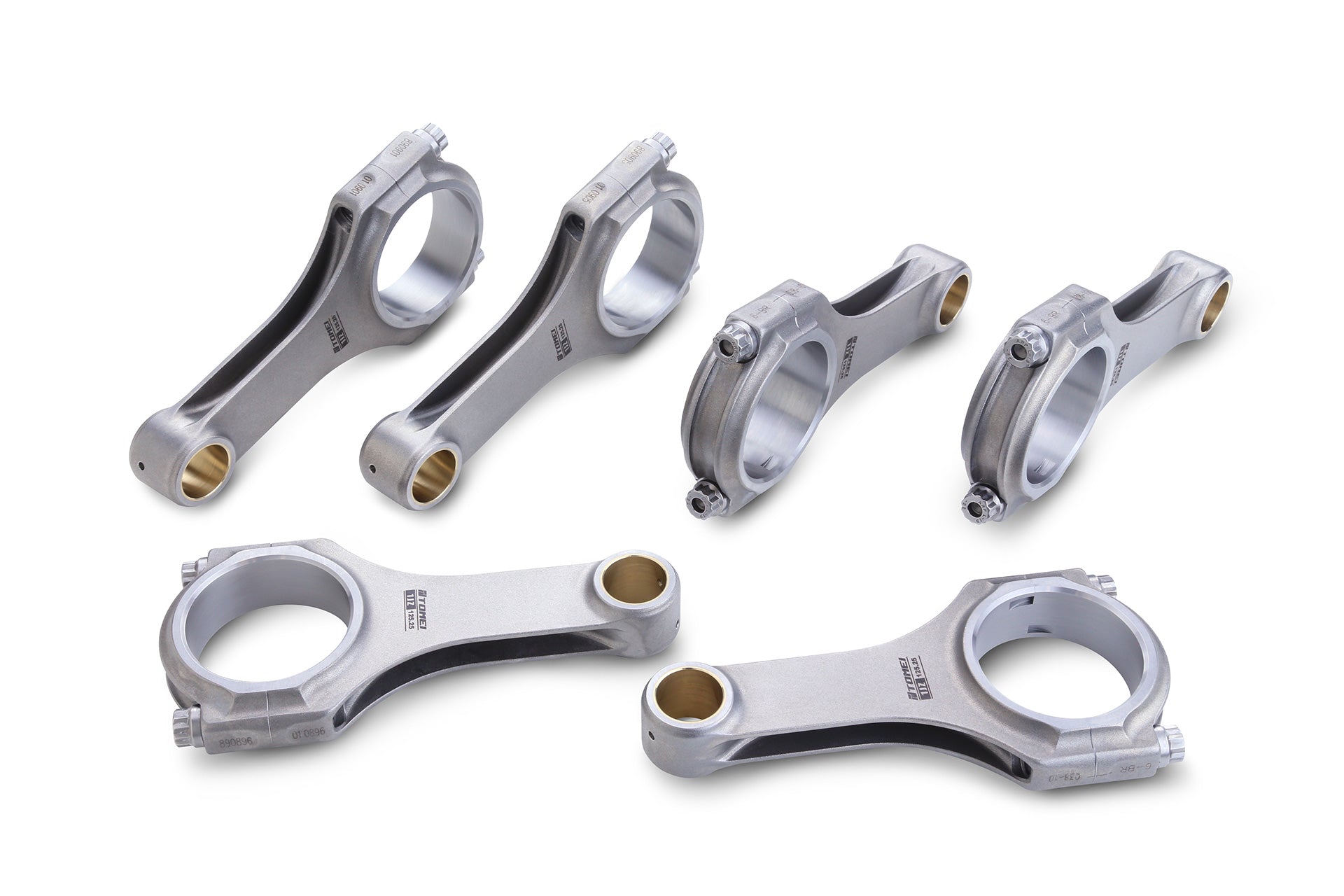

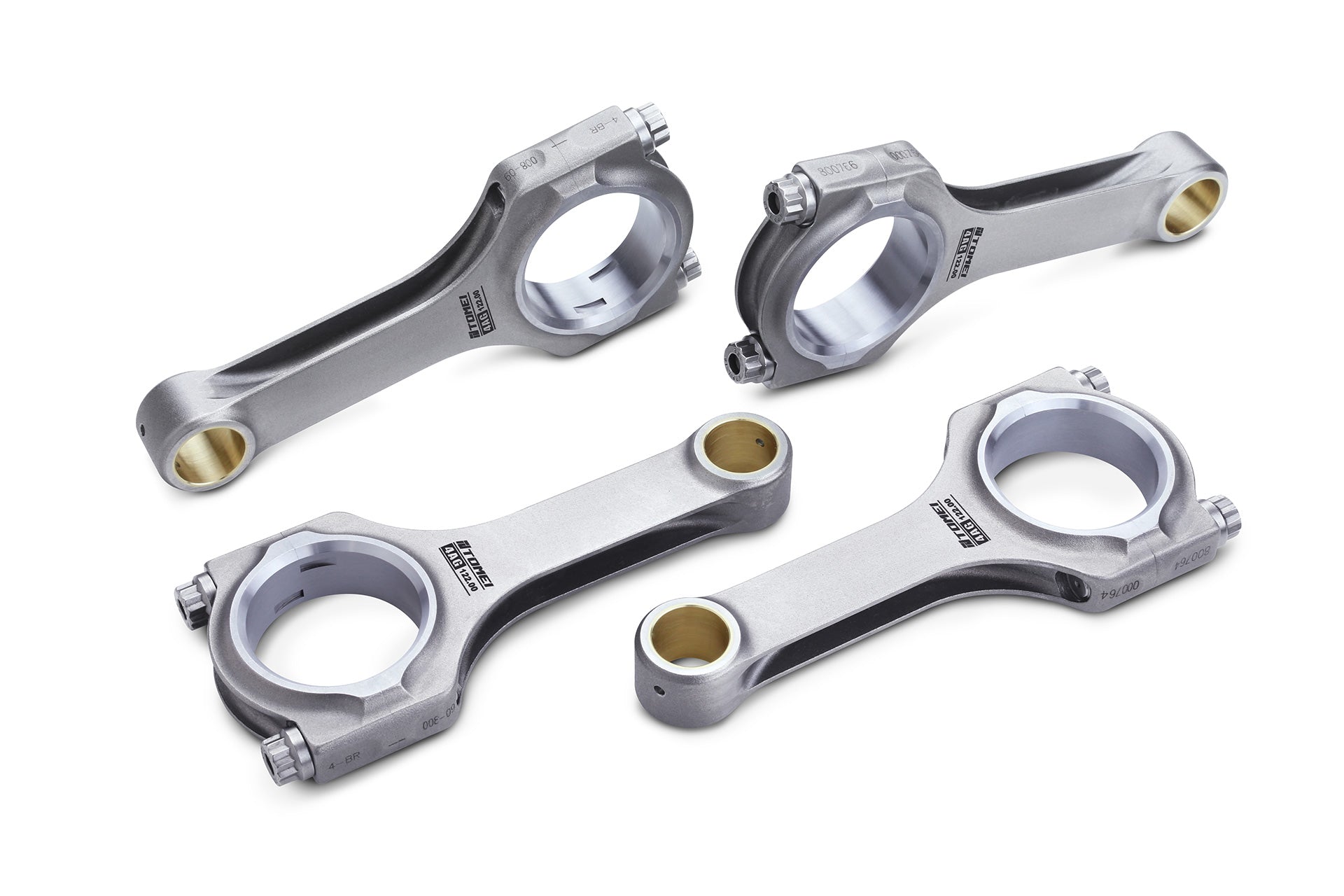

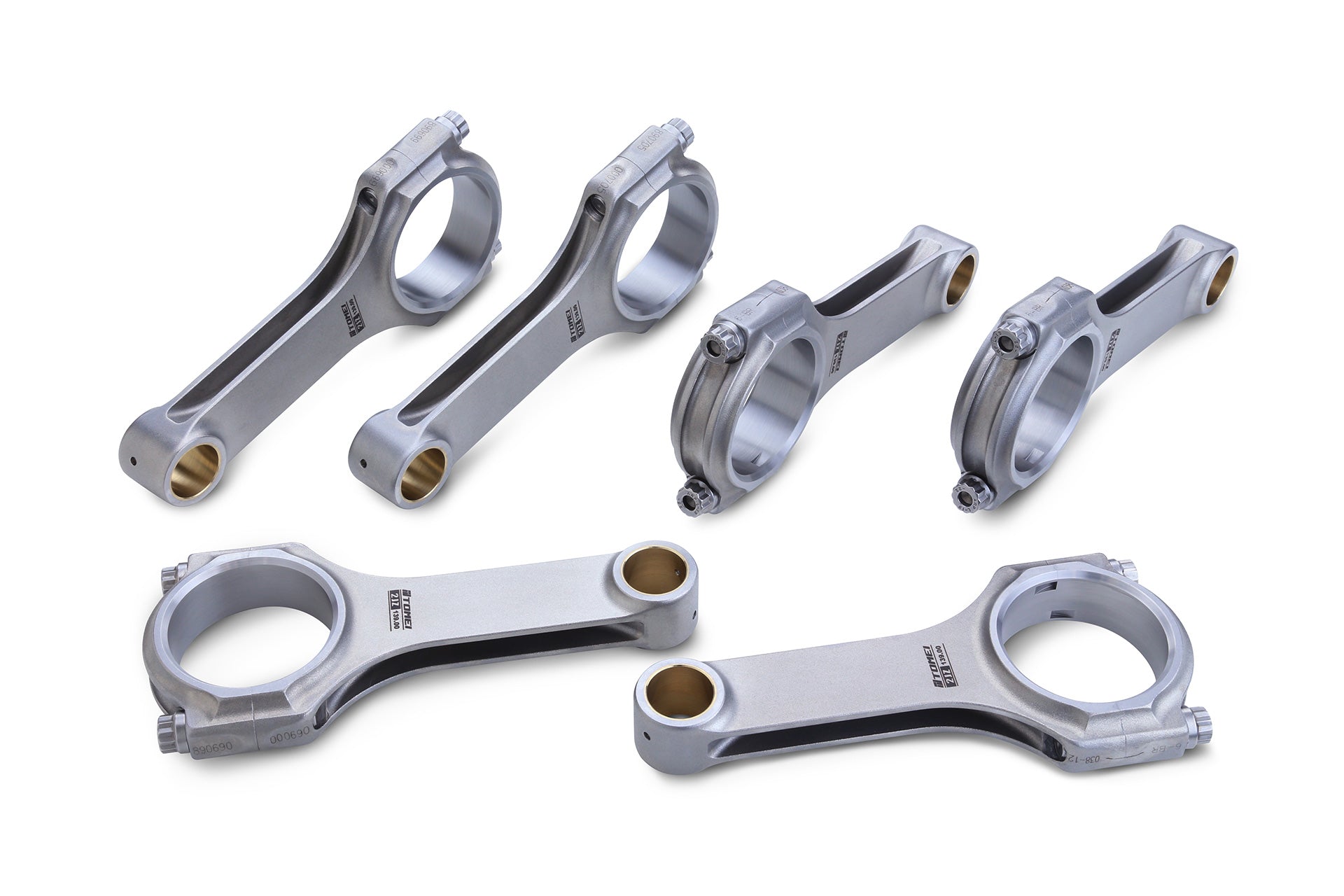

Tomei Forged H-Beam Connecting Rod Set

In stock - 3 items available
SKU: 1E4D1
No reviews
$647.00 USD
$720.00 USD Sale $647.00 USD
Option

Product Details

  • Type Connecting Rods
  • Vendor Tomei
  • SKU 1E4D1
  • Barcode 650229655828

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod



Category  Engine Parts Number
Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8) 4AG-16V,4AG-20V TA203A-TY01A
Forged H-Beam Connecting Rod Set 2JZ-GTE 142.00mm (STD/3.4) 2JZ TA203A-TY03A
Forged H-Beam Connecting Rod Set 2JZ-GTE 139.00mm (3.6) 2JZ TA203A-TY03B
Forged H-Beam Connecting Rod Set 1JZ-GTE 125.25mm (STD) 1JZ TA203A-TY04A



Part Number TA203A-TY01A TA203A-TY03A TA203A-TY03B TA203A-TY04A
C-to-C (mm) 122.00 (OEM ±0.0)
 142.00 (OEM ±0.0)
 139.00 (OEM -3.0) 125.25 (OEM ±0.0)
BE.BORE×WIDTH
(mm)		 45.0×21.85
 55.0 x 26.0 55.0 x 26.0 55.0 x 26.0
PE.BORE×WIDTH
(mm)
(Bush inner cir)		 20.0×21.85
 22.0 x 26.0 22.0 x 26.0 20.0 x 26.0
MATERIAL SNCM439
 SNCM439
 SNCM439
 SNCM439
BOLT  ARP L19
3/8-24 40.0mm		 ARP L19
3/8-24 40.0mm		 ARP L19
3/8-24 40.0mm		 ARP L19
3/8-24 40.0mm
BEARING SIZE  INNER DIA. 42.0mm
WIDTH 17.2mm		 INNER DIA. 52.0mm
WIDTH 19mm		 INNER DIA. 52.0mm
WIDTH 19mm		 INNER DIA. 52.0mm
WIDTH 19mm
WEIGHT (g)  469.0
 647 658 630
