Tomei

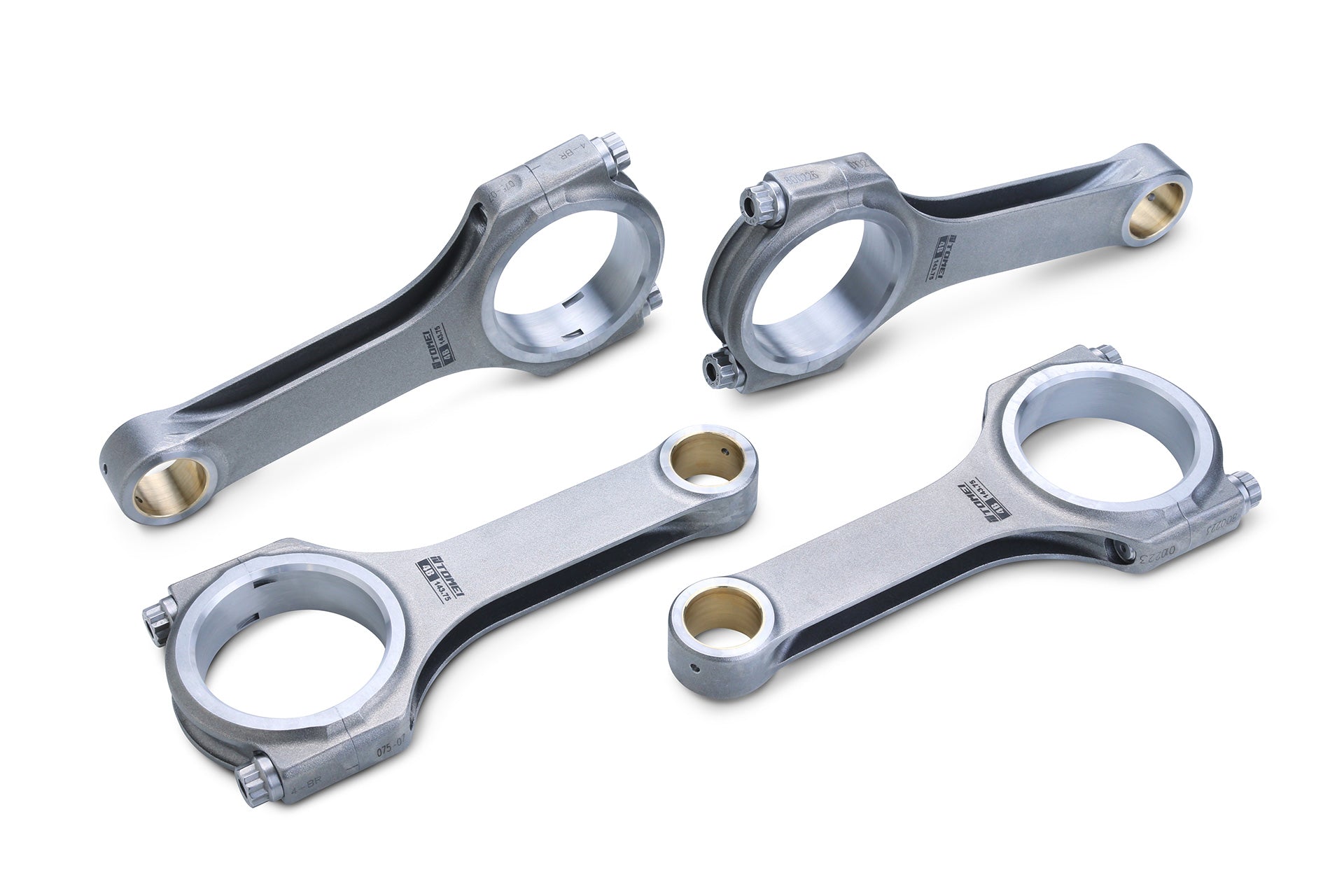

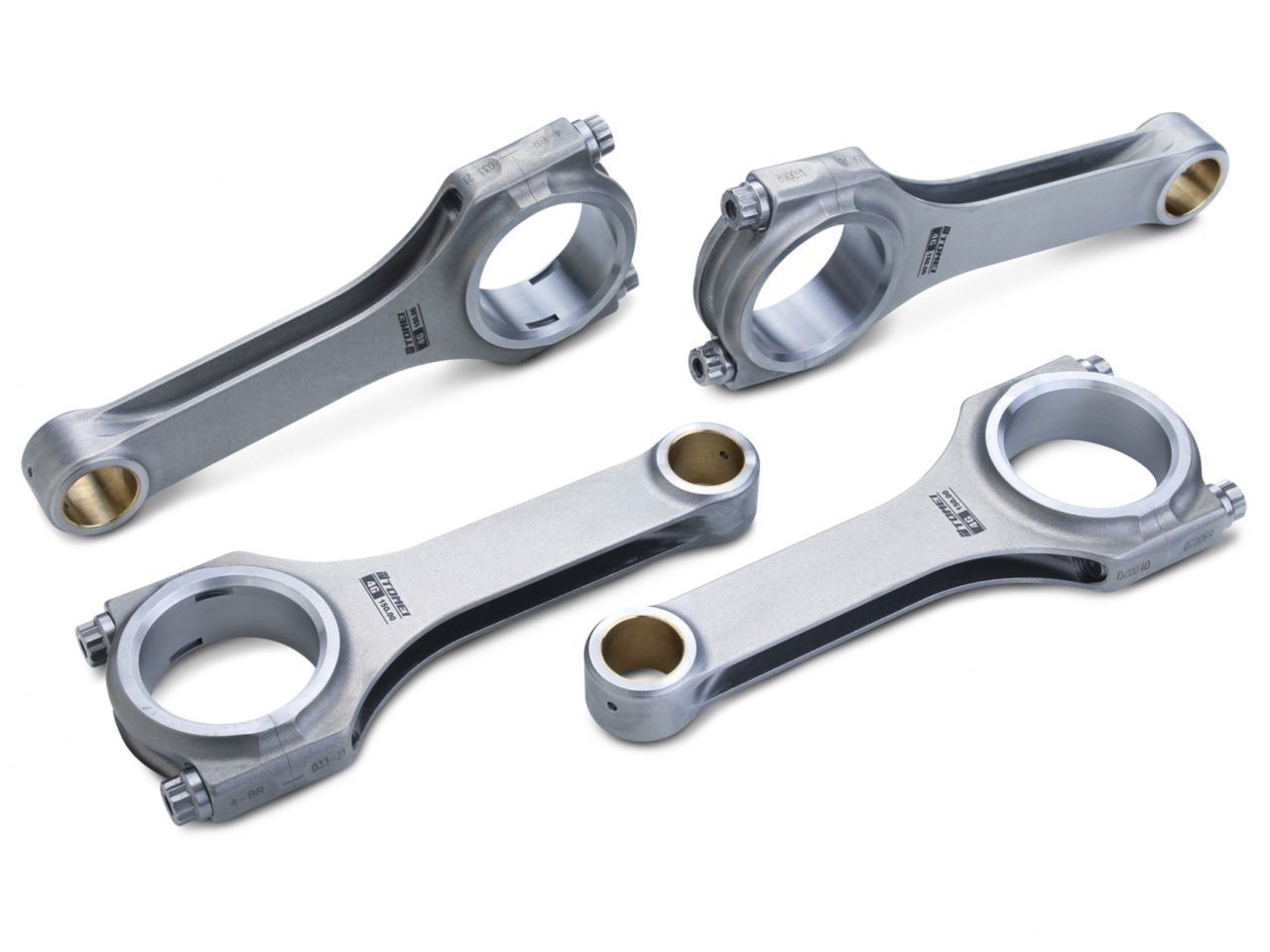

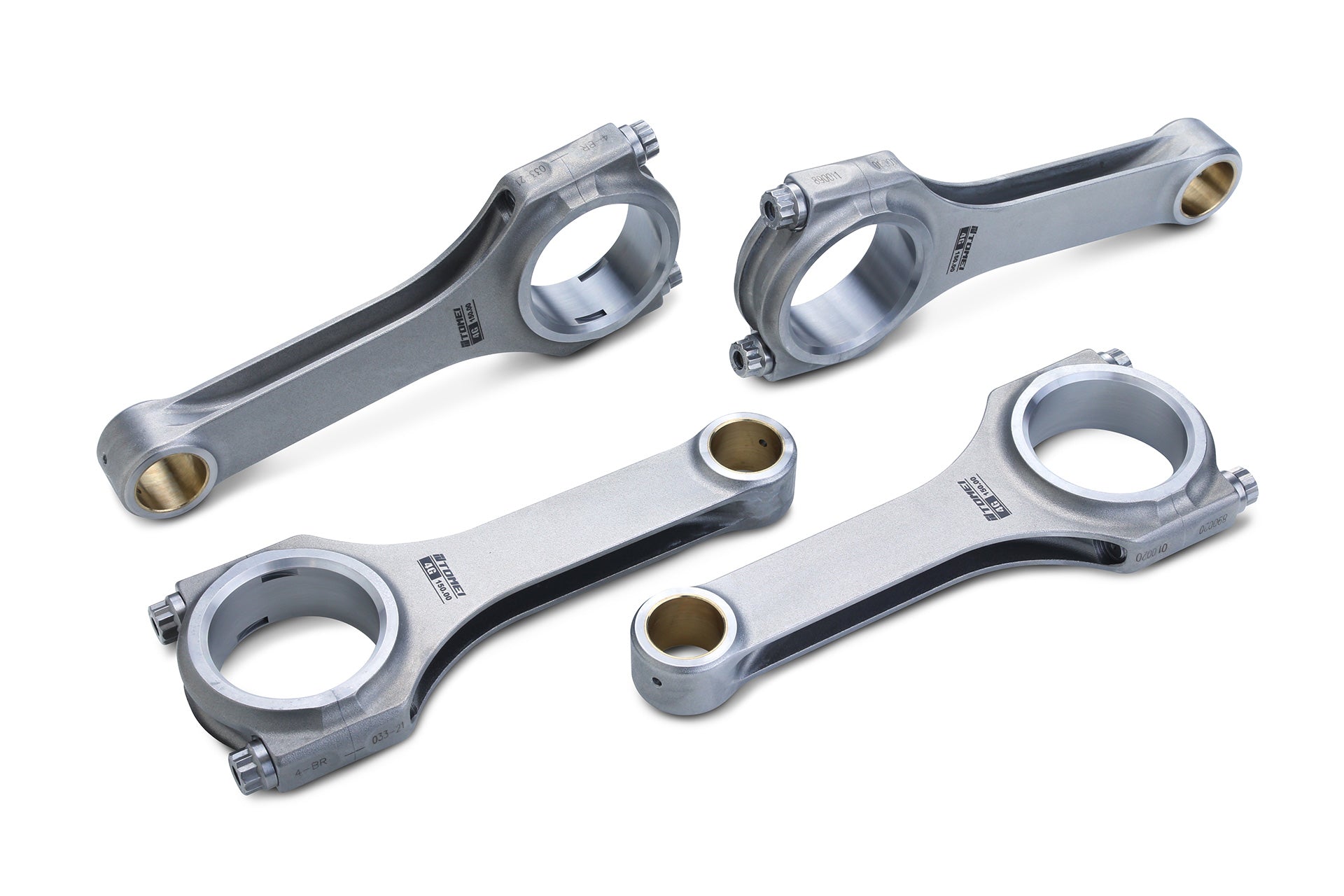

Tomei Forged H-Beam Connecting Rod Set

In stock - 2 items available

SKU: 1E4CX

No reviews

$647.00 USD

~~$720.00 USD~~ Sale $647.00 USD

Option 4G63 150.00mm (STD/2.2) 4B11 EVO10 143.75mm (STD/2.3)

Product variants

Product Details

Type Connecting Rods
Vendor Tomei
SKU 1E4CX
Barcode 650229655712

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod

Category	Engine	Parts Number
FORGED H-BEAM CONNECTING ROD SET 4G63 150.00mm (STD/2.2)	4G63	TA203A-MT01A
FORGED H-BEAM CONNECTING ROD SET 4B11 EVO10 143.75mm (STD/2.3)	4B11	TA203A-MT02A

Part Number	TA203A-MT01A	TA203A-MT02A
C-to-C (mm)	150.00 (OEM ±0.0)	143.75 (OEM ±0.0)
BE.BORE×WIDTH (mm)	48.0×26.4	55.0×21.9
PE.BORE×WIDTH (mm) (Bush inner cir)	22.0×23.0	23.0×20.0
MATERIAL	SNCM439	SNCM439
BOLT	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm
BEARING SIZE	INNER DIA. 45.0mm WIDTH 21.0mm	INNER DIA. 52.0mm WIDTH 17.0mm
WEIGHT (g)	591.0	588.0
