Tomei

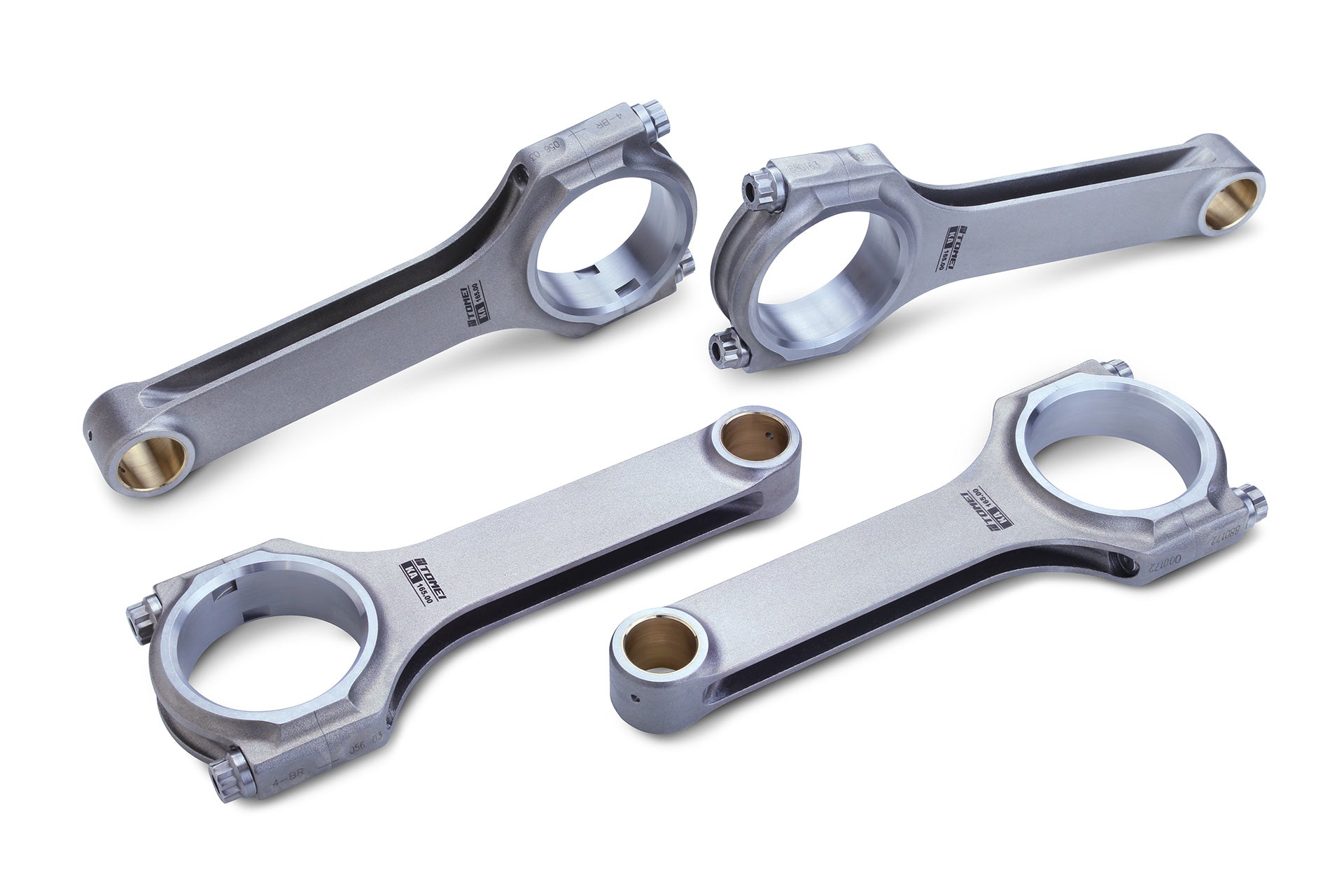

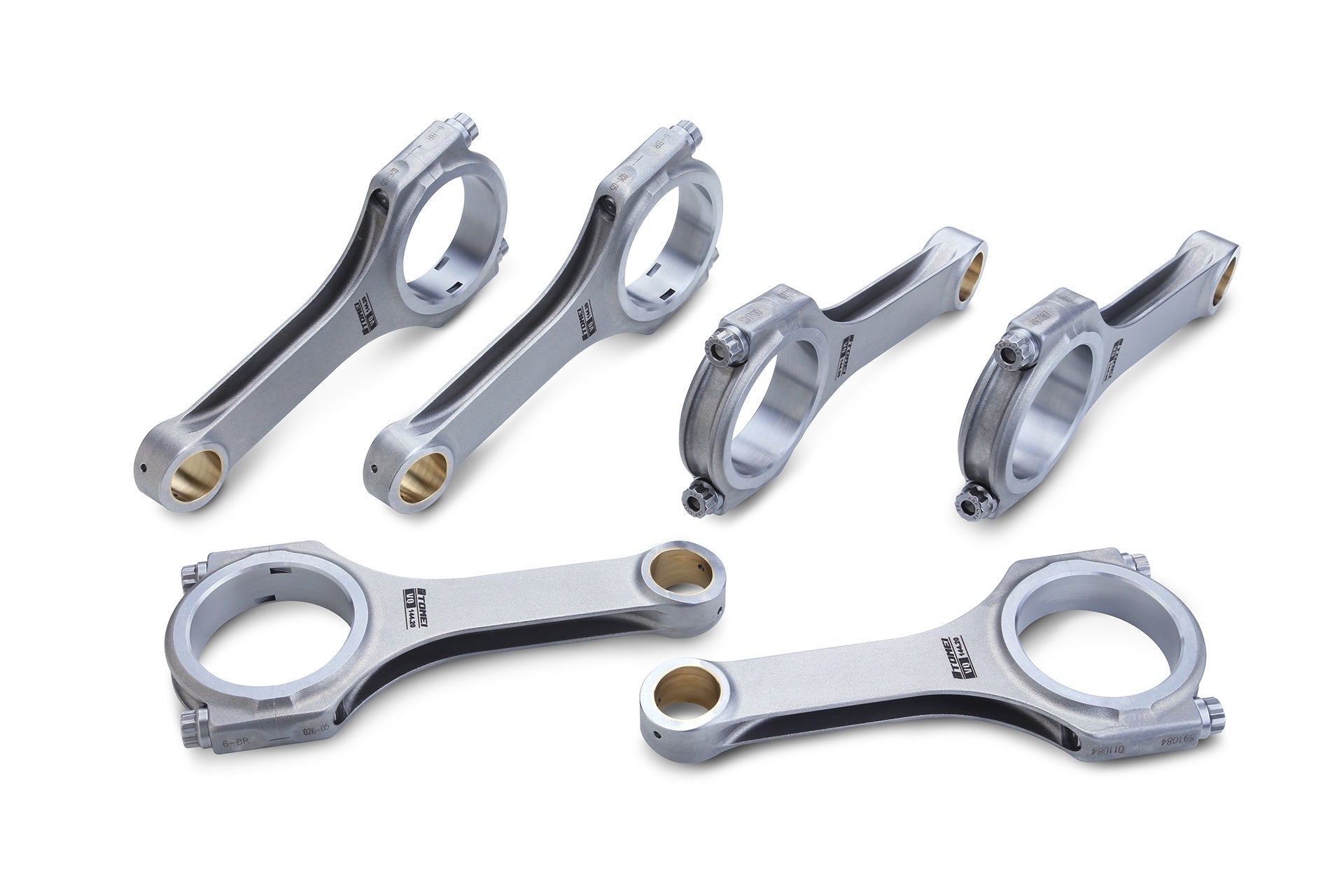

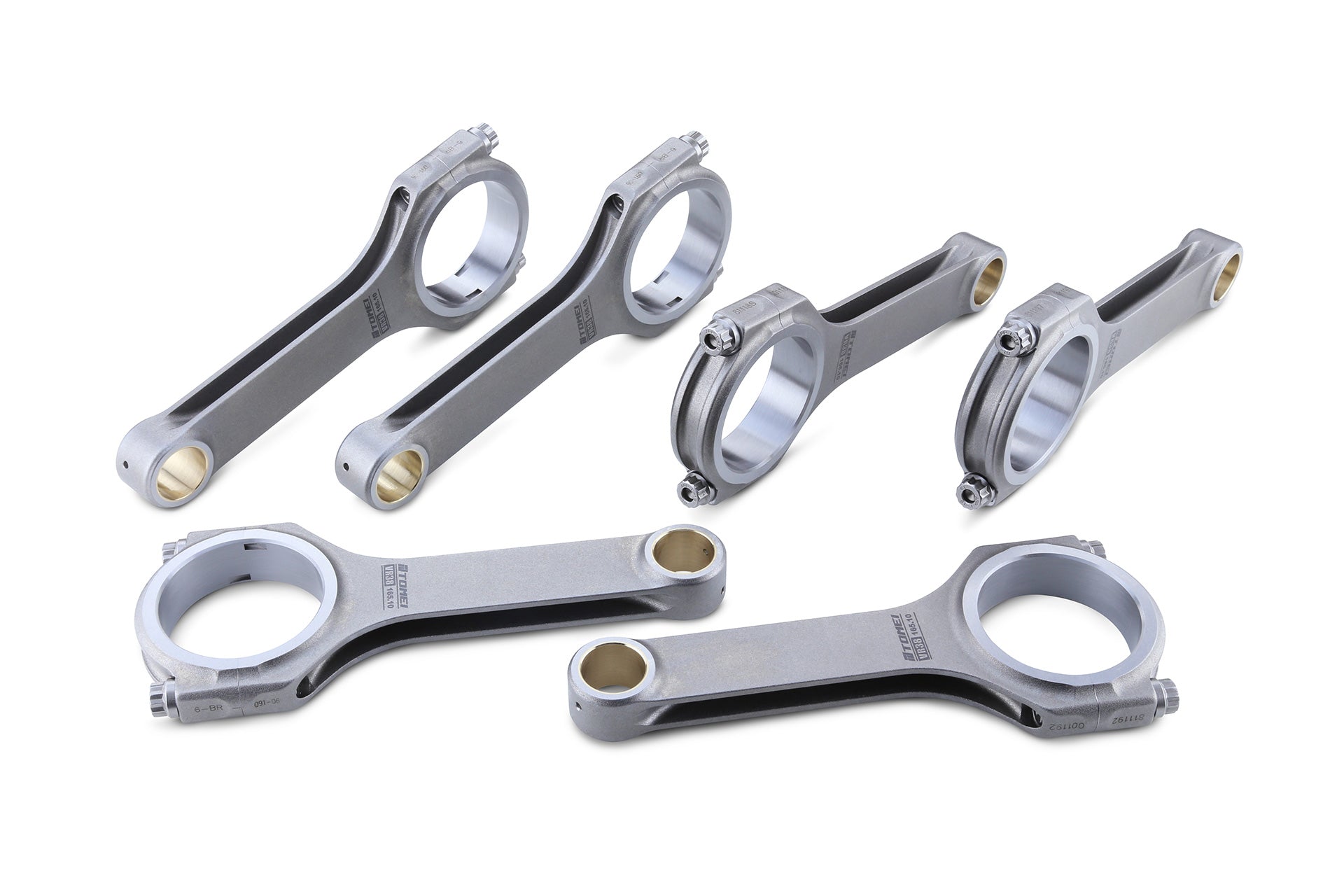

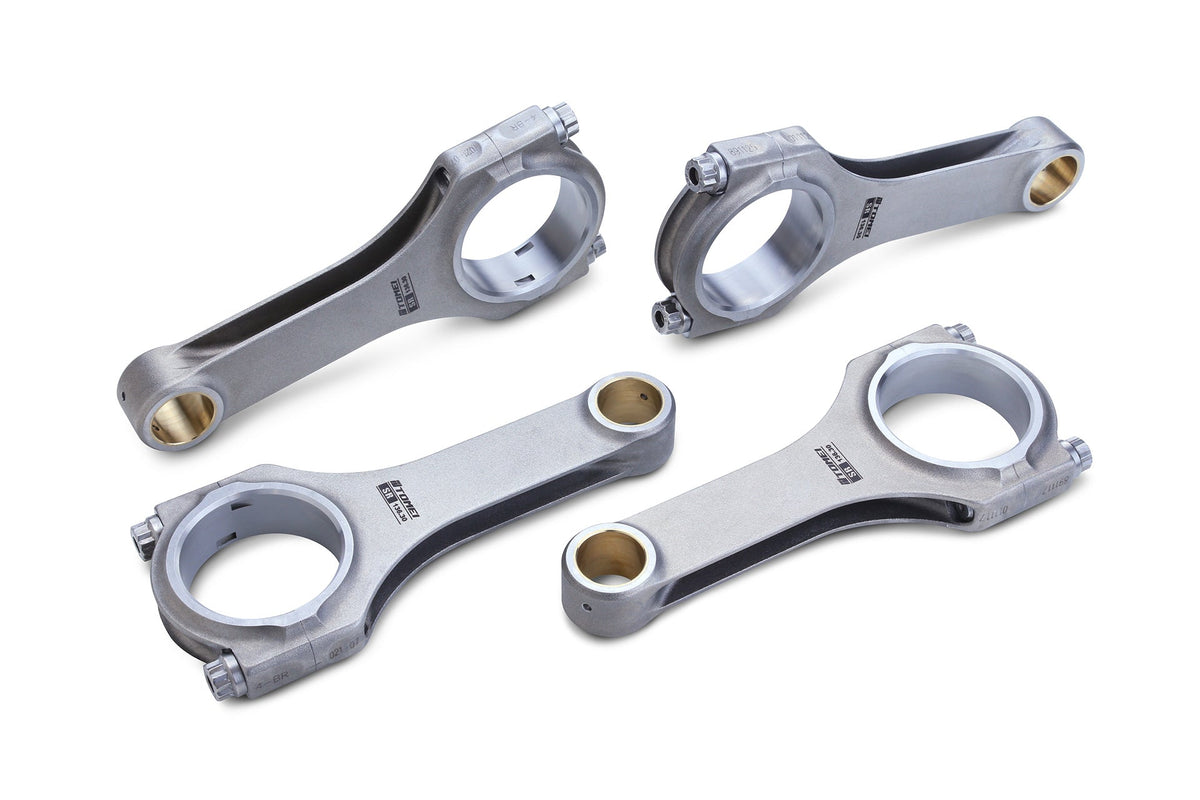

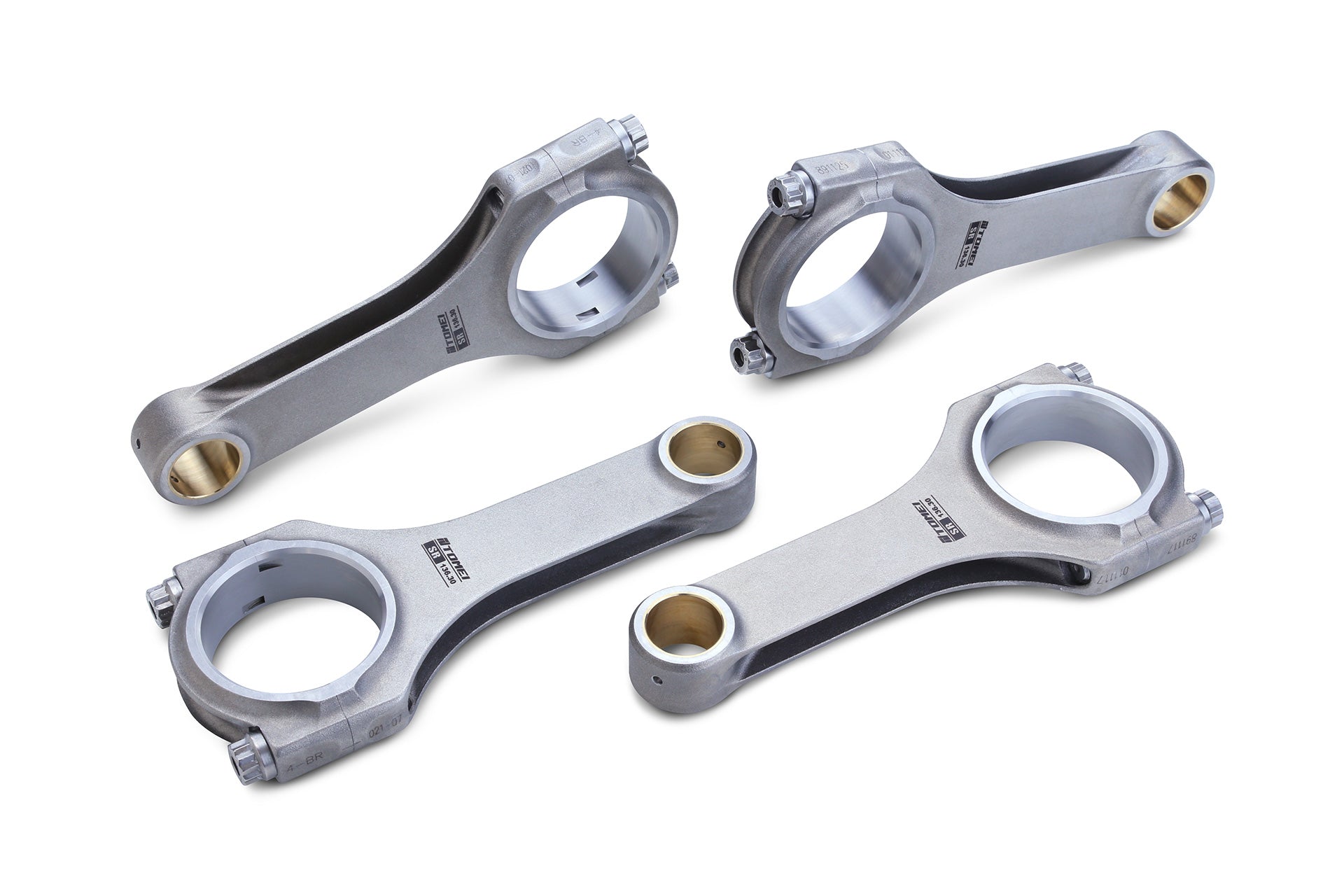

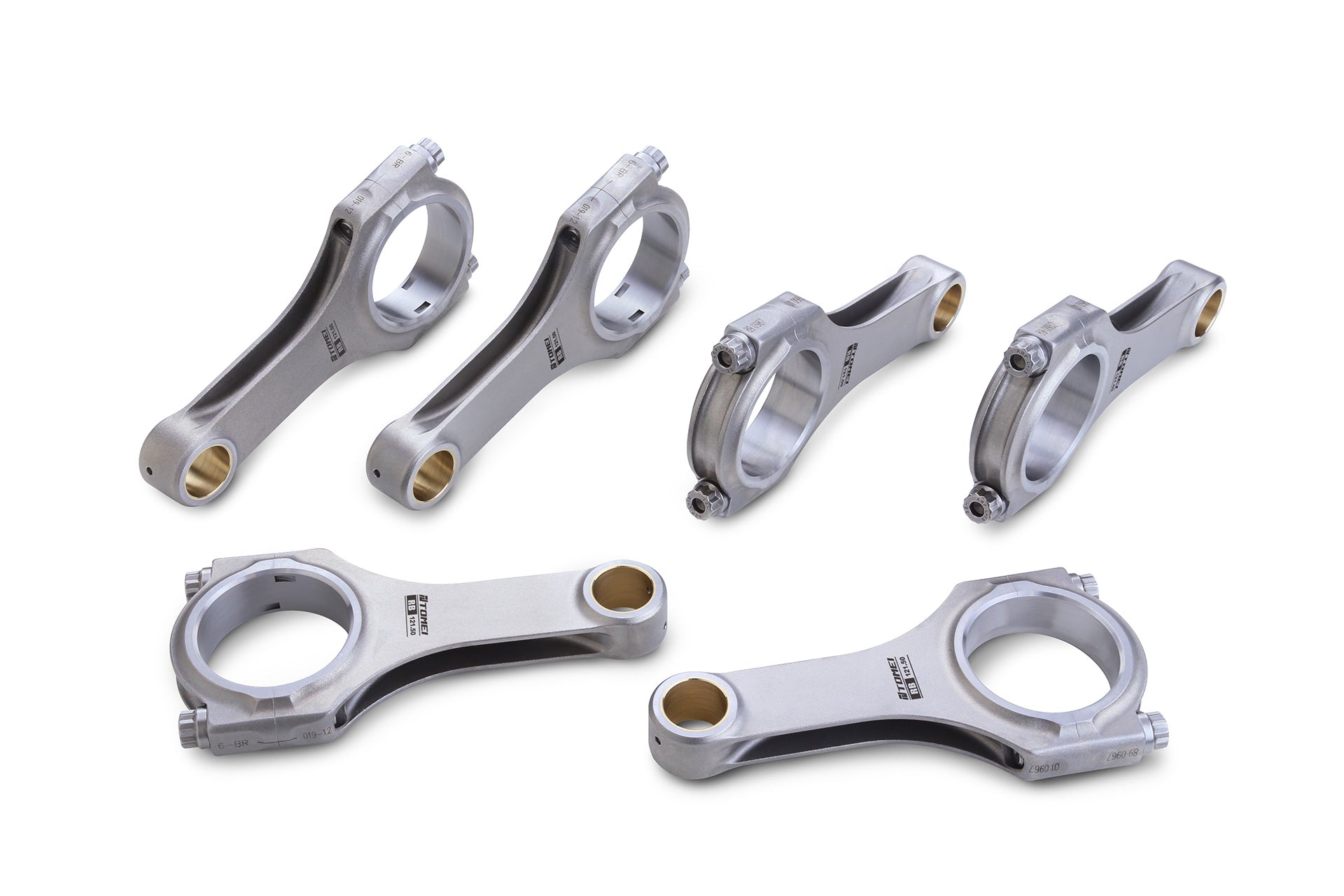

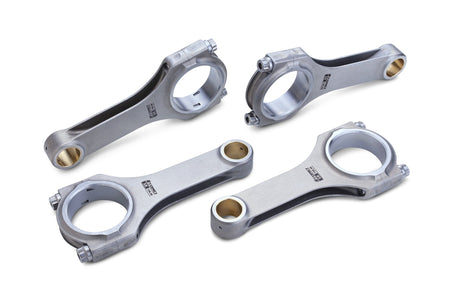

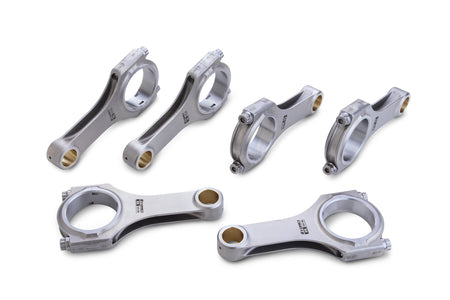

Tomei Forged H-beam Connecting Rod Set

In stock - 4 items available

SKU: 1KPNW

No reviews

$971.00 USD

~~$1,080.00 USD~~ Sale $971.00 USD

Option VR38DETT 165.10mm (STD/4.1) VQ35DE 144.20mm (STD) RB26DETT/RB25DE(T) 121.50mm (STD) RB26DETT/RB25DE(T) 119.50mm (2.8) SR20DE(T)/SR18DE 136.30mm (STD/2.2) KA24DE 165.00mm (STD)

Product variants

Product Details

Type Connecting Rods
Vendor Tomei
SKU 1KPNW
Barcode 650229655743

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

FORGED H-BEAM CONNECTING ROD SET

Category	Engine	Parts Number

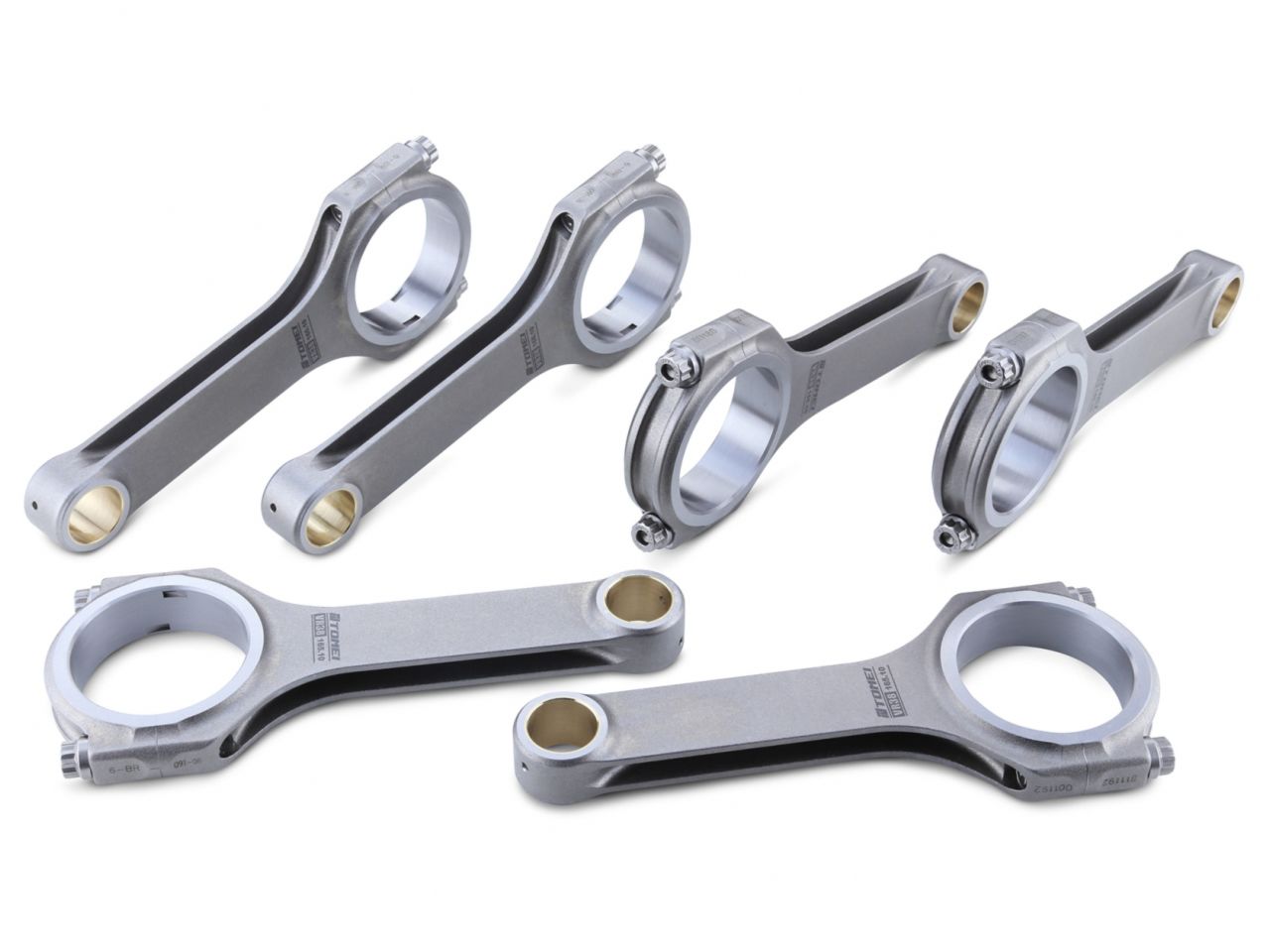

Forged H-Beam Connecting Rod Set VR38DETT 165.10mm (STD/4.1)	VR38	TA203A-NS01A
Forged H-Beam Connecting Rod Set VQ35DE 144.20mm (STD)	VQ35	TA203A-NS04A
Forged H-Beam Connecting Rod Set RB26DETT/RB25DE(T) 121.50mm (STD)	RB26,RB25	TA203A-NS05A
Forged H-Beam Connecting Rod Set SR20DE(T)/SR18DE RB26DETT/RB25DE(T) 119.50mm (2.8)	RB26	TA203A-NS05B
Forged H-Beam Connecting Rod Set KA24DE SR20DE(T)/SR18DE 136.30mm (STD/2.2)	SR20	TA203A-NS08A
Forged H-Beam Connecting Rod Set KA24DE 165.00mm (STD)	KA24	TA203A-NS16A

Part Number	TA203A-NS01A	TA203A-NS04A	TA203A-NS05A
C-to-C (mm)	165.10 (OEM ±0.0)	144.20 (OEM ±0.0)	121.50 (OEM ±0.0)
BE.BORE×WIDTH (mm)	59.0 x 22.8	55.0 x 2.8	51.0 x 21.8
PE.BORE×WIDTH (mm) (Bush inner cir)	23.0 x 22.8	22.0 x 20.8	21 x 21.8
MATERIAL	SNCM439	SNCM439	SNCM439
BOLT	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm
BEARING SIZE	INNER DIA. 56.0mm WIDTH 19mm	INNER DIA. 52.0mm WIDTH 16.5mm	INNER DIA. 48.0mm WIDTH 17mm
WEIGHT (g)	678	534	528

Part Number	TA203A-NS05B	TA203A-NS08A	TA203A-NS16A
C-to-C (mm)	119.50 (OEM -2.0)	136.30 (OEM ±0.0)	165.00 (OEM ±0.0)
BE.BORE×WIDTH (mm)	51.0 x 21.8	51.0 x 22.8	53.0 x 24.8
PE.BORE×WIDTH (mm) (Bush inner cir)	21 x 21.8	22.0 x 22.8	21 x 24.7
MATERIAL	SNCM439	SNCM439	SNCM439
BOLT	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm
BEARING SIZE	INNER DIA. 48.0mm WIDTH 17mm	INNER DIA. 48.0mm WIDTH 17mm	INNER DIA. 50.0mm WIDTH 20mm
WEIGHT (g)	525	562	658

Vehicle Fitments:

Year	Make	Model	Submodel
1991 - 1998	Nissan	240SX	LE
1989 - 1998	Nissan	240SX	SE, Base
1989 - 1990	Nissan	240SX	XE
