2007-2021 Toyota Tundra - Prefab Bed Cage

In stock

SKU: Make Selection

No reviews

$1,595.00 USD

Powder Coat

Select No Powder Coat Satin Black Powder Coat (+$200) Gloss Black Powder Coat (+$225) Gray Powder Coat (+$225)

Shock Mounts

Select No Shock Mounts Include Shock Mounts (+$149)

Product Details

Type Truck Bed Brace
Vendor Dirt King
SKU Make Selection
Barcode 266233119

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description

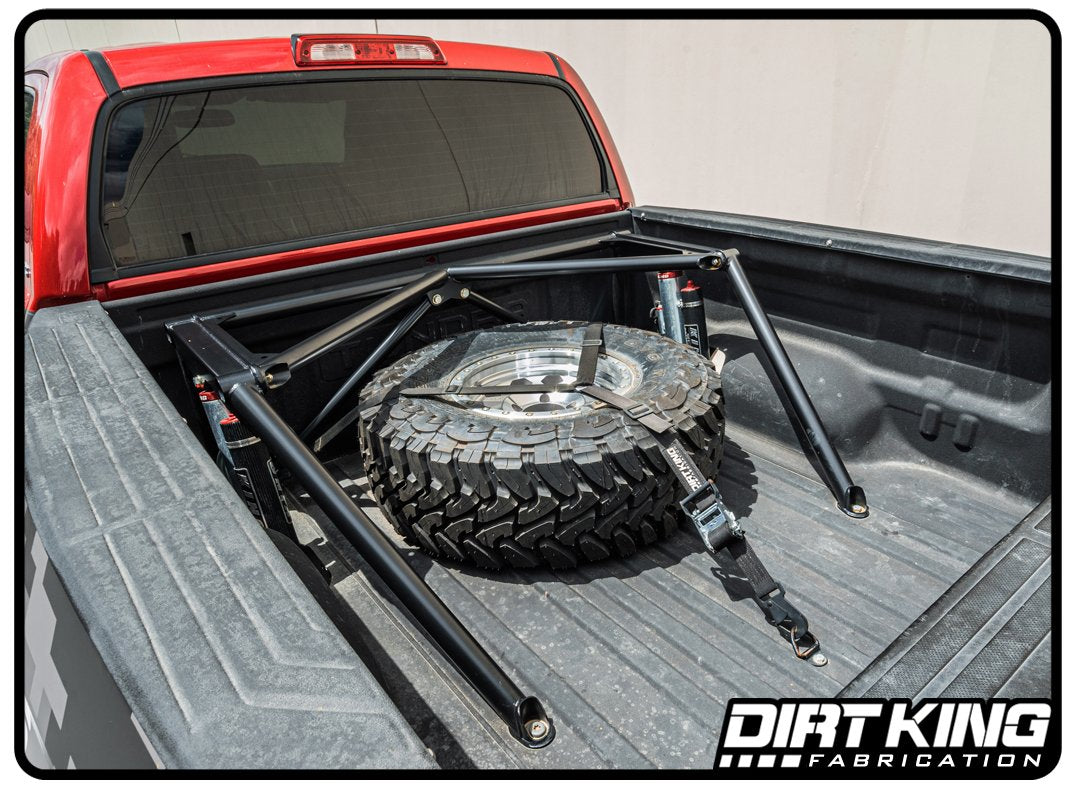

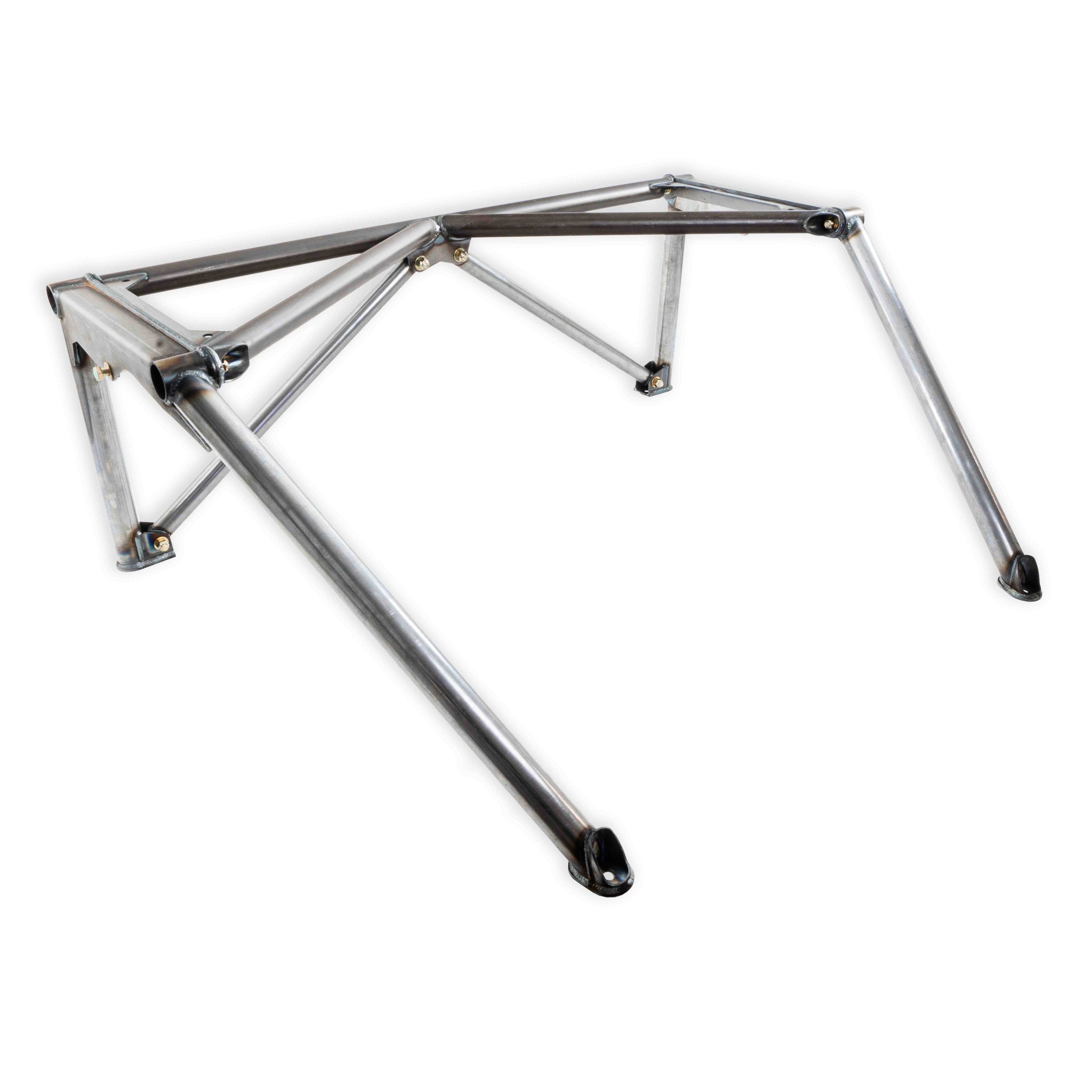

The Dirt King Prefab Bed Cage was developed after building numerous custom bed cages. With that experience we've perfected the design for maximum travel and easy installation. The bed cage takes up minimal bed space while not compromising strength. Accessory mounting holes are incorporated into the center section of the cage to mount dust lights and flag whips. The entire kit bolts together and installs in the factory bed mounting locations. It can be used with leaf over or leaf under spring packs. This suspension system is superior to a cantilever suspension system for two major reasons. The first reason is the shock mounts on the bed cage are outside the frame rails vs inside the frame rails for increased stability. The second reason is the shocks are mounted vertically with a motion ratio close to 1:1 allowing for proper dampening through the suspension travel. The cantilever suspension has a higher motion ratio resulting in smaller shocks, difficult to valve shocks properly, and heating up the shocks faster since they have less fluid. The Dirt King Prefab Bed Cage is your best choice to increase rear suspension performance while not breaking the bank.

Specifications

Recommend Leaf Pack: Deaver I96
Recommend Shocks: Fox or King (works with all shock manufactures)
Recommend Shock Length: 16" (26" collapsed, 42" extended)
- works with 14" shocks with extended rod ends
Recommended Shock Diameter: 3.0" (works with 2.5"-3.5" shocks)
Bypass Tube Layout: Bypass tubes on front and back of shocks
Bed cage Shock Mounting Width: 1.5"
Axle Width: Requires 1.5"-2" wheel spacers or 1.5"-2" wider per side axle
Accessory Mounting Hole Size: 1/2"

What's Included

Prefabbed bed cage structure
Grade 8 mounting hardware
Installation instructions

Features

CAD designed

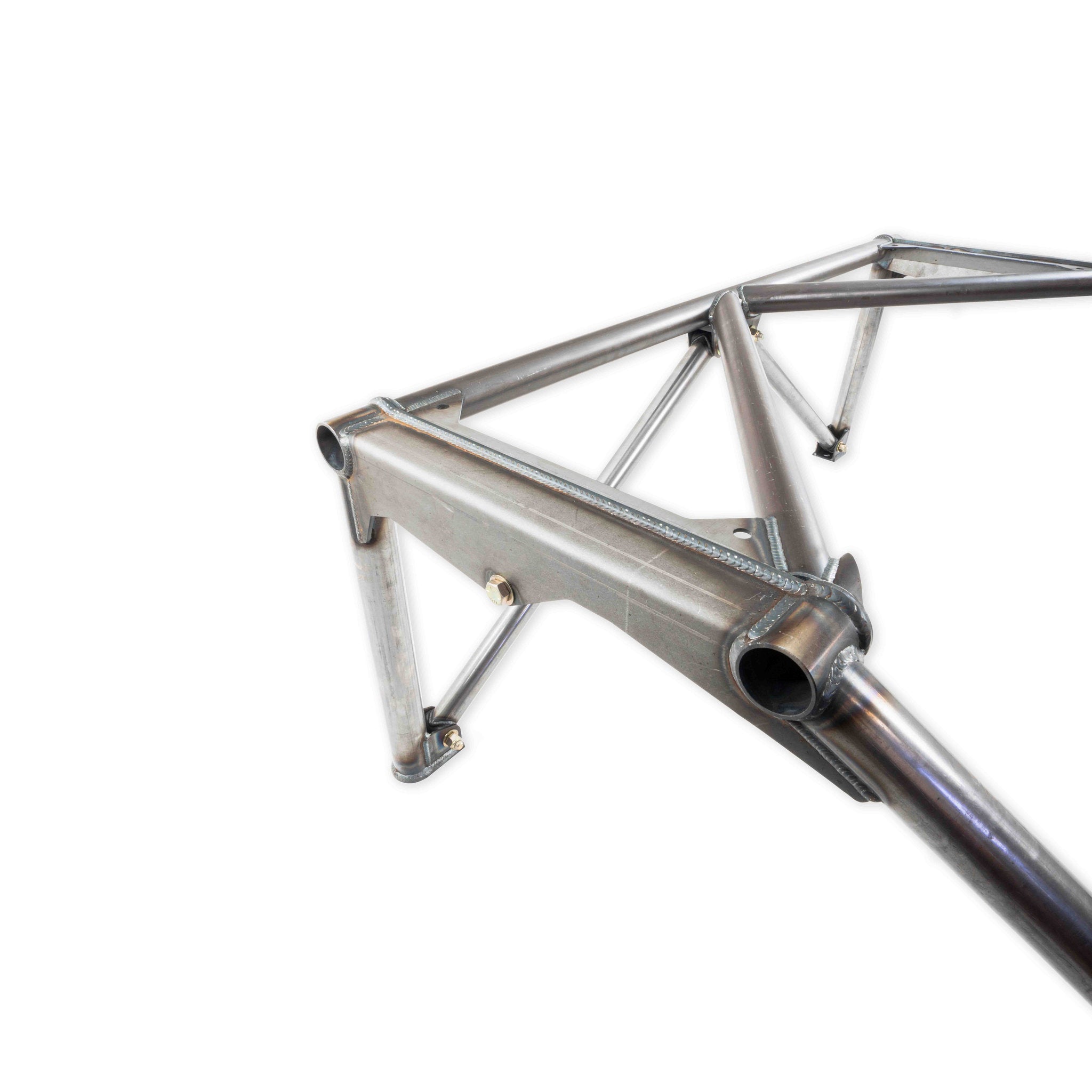

Boxed plate and tube construction
2"x.120" DOM tubing
1/4", 3/16", and 1/8" plate
Professionally MIG welded
Proudly made in the USA

Compatibility

2007-2021 Toyota Tundra 2WD / 4WD

*Returns or cancelations on powder coated bed cages are subject to a 10% restocking fee.
