2007-2021 Toyota Tundra - Lower Arm Bushing Rebuild Kit

*Note* Images are for reference; actual product may vary in color, size, or design.

Dirt King

2007-2021 Toyota Tundra - Lower Arm Bushing Rebuild Kit

In stock
Barcode: Make Selection
No reviews
$112.00 USD
Bushing Material
Inner Bushing Sleeves
Payment details
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Shop with confidence: flexible payment options, including major credit cards, financing, and trusted online payment providers, all protected by advanced encryption.

Product Details
  • Type Bushing
  • Vendor Dirt King
  • SKU Make Selection
  • Barcode Make Selection

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(619) 929-0590

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65



Description

This rebuild kit is for a pair of lower control arms.


Key Notes

Standard Delrin is a highly durable plastic-like compound that can endure significant mileage and time, provided it receives proper maintenance. However, if the bushings are not adequately greased or develope dry spots, they can produce a loud, unpleasant squeak.


PTFE-blended Delrin offers the advantage of being self-lubricating, resulting in reduced friction and noise. Though slightly more brittle than standard Delrin, it can still withstand substantial use over long periods with the right upkeep.

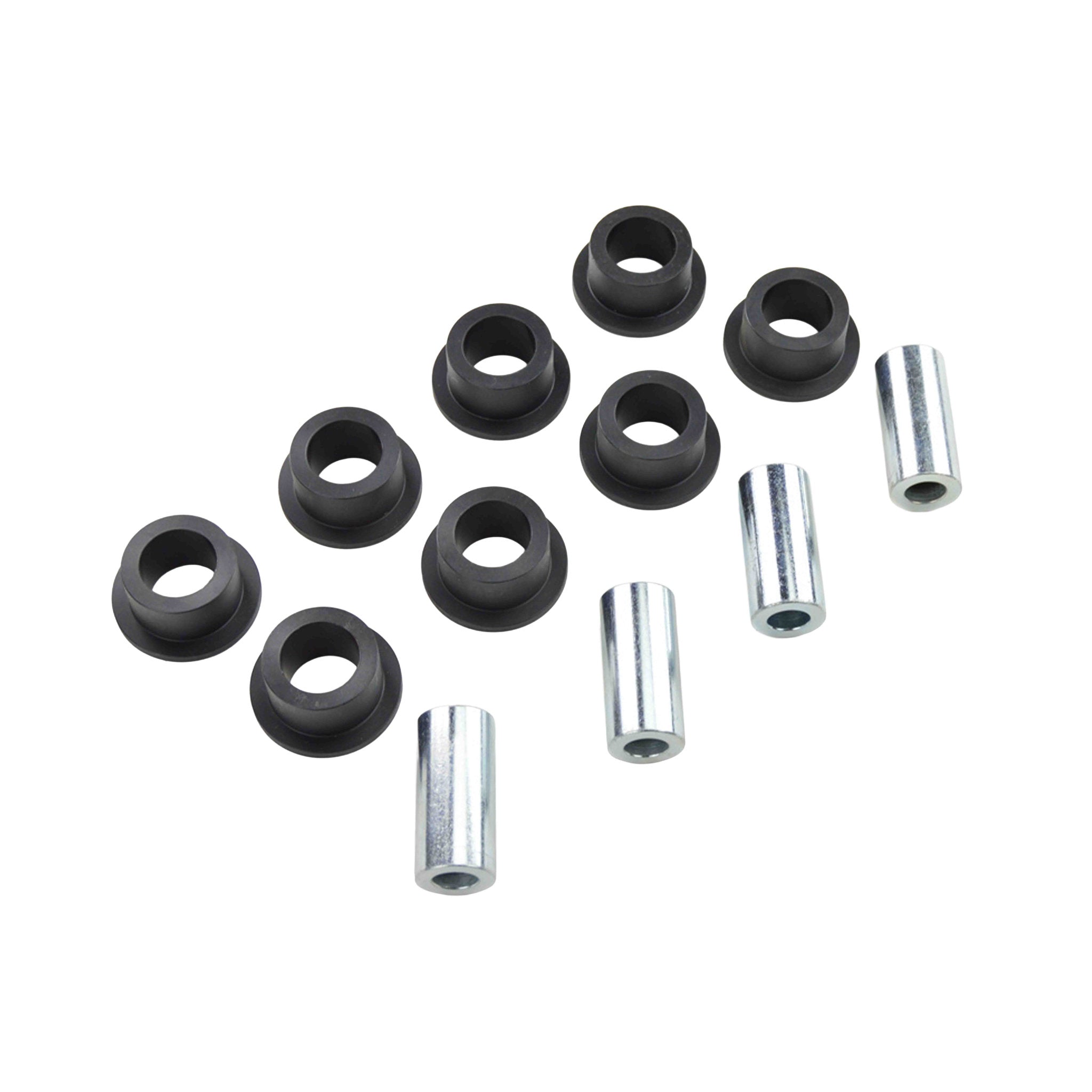

What's Included

  • (x4) 1.75"OD x 1.125"ID Bushings
  • (x4) 1.75"OD x 1.25"ID Bushings
  • (x4) Inner Bushing Sleeves (Optional)

Instructions


  • 1. Remove Components: Remove zerk fittings, inner bushing sleeves, and old delrin bushings
  • 2. Clean: Thoroughly clean all old grease from the control arms
  • 3. Grease Application: Apply a fresh, thin layer of Prothane Super Grease to the inside of the control arm bushing sleeves
  • 4. Install Bushings: Use an arbor press, dead blow hammer, or rubber mallet to press in the new bushings until they are fully seated
  • 5. Check Fit: Test if the inner bushing sleeves can be pushed through the new bushings, by hand, with medium-light tension. If excessive force is needed, ream the bushings.
    • 6. Reaming (if necessary):
    • Use the proper size reamer to ream the bushings while they are installed on the control arms
    • Spin the reamer fast but make slow passes
    • After reaming, check again if the inner sleeve can slide through the bushing by hand. Repeat if needed
  • 7. Debris Removal: If reaming was done, clean out any debris from between the bushings and inside the zerk fitting hole
    • 8. Final Grease Application: Apply more Prothane Super Grease inside the reamed bushings, re-install the inner bushing sleeves and zerk fittings, thoroughly grease the outside of the bushings and the inside of the control arm pockets

Compatibility

2007-2021 Toyota Tundra Dirt King Lower Control Arms 2WD/4WD
