Teraflex

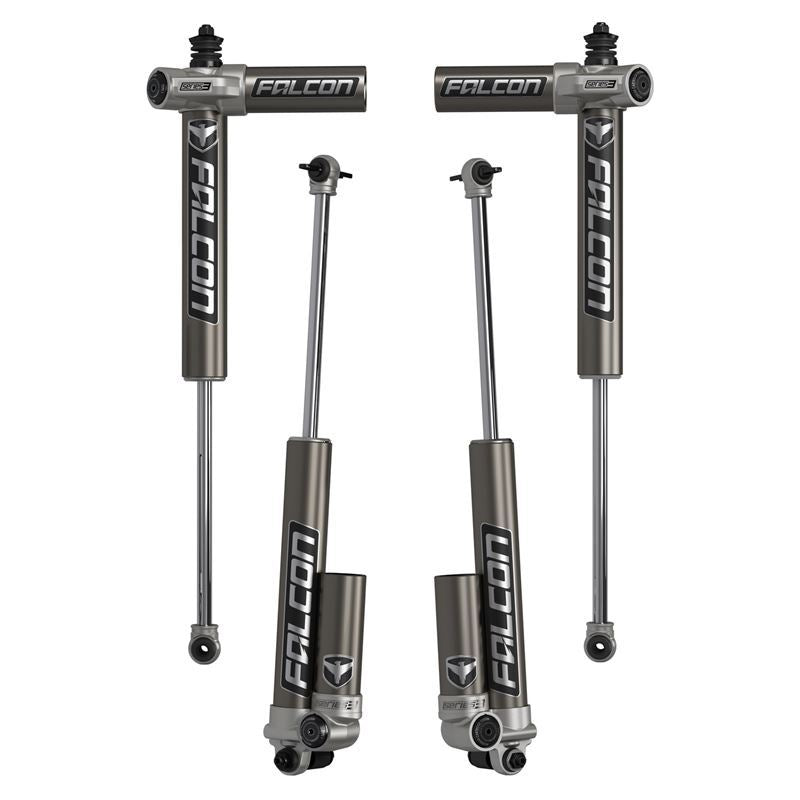

JK 4dr: Falcon Series 3.1 Piggyback Shock Kit (1.5-2.5 in. Lift) (03-01-31-400-002)

JK 4dr: Falcon Series 3.1 Piggyback Shock Kit (1.5-2.5 in. Lift) (03-01-31-400-002)

Regular price $1,333.99 USD
Regular price Sale price $1,333.99 USD
Sale Sold out
Shipping calculated at checkout.

Falcon Series 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling. Series 3.1 Shocks have been optimized for on- and off-road driving. High-Value Performance" is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. These Jeep-specific shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex. Series 3.1 Piggyback: Series 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling Optimized tuning for on- and off-road driving Ideal for daily-driven Jeeps as well as the serious enthusiast wanting a consistent, controlled feel through all driving conditions JK: JK corner-specific shock absorber w/ race-inspired performance Front upper offset stud design provides maximum shock body to frame clearance during articulation Outboard mounting increases clearance for lifted vehicles w/ raised track bar brackets Rear shock body (all) and reservoir (piggyback) positioned on bottom eliminates shaft damage from rocks kicked up by the tires Rear Shock Skid Plates available separately Piggyback: Piggyback design increases oil and gas capacity for reduced heat Flows 6x more oil than restrictive reservoir hose designs Eliminates common leakage issues found in banjo and swivel fittings Front shocks unique horizontal piggyback reservoir increases tire clearance Cartridge Upgrade Kits are available separately - contact customer service for details

Features

  • 1,000-hour salt spray corrosion resistance test on all hardware
  • 1-piece Teflon bronze piston wear band w/ O-ring
  • 2.3" shock body provides optimal performance
  • 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
  • 6061-T6 aluminum alloy shock body resists Impact to protect internal components
  • Designed, engineered, and assembled in-house from domestic and globally sourced components
  • Dramatic improvement in on-road comfort and off-road performance
  • Falcon Performance Shocks (all):
  • Hard anodized 6061-T6 aluminum alloy billet piston
  • High-viscosity, full synthetic Red Line shock oil for consistent performance across all temperatures
  • Improved dynamic roll control and low-speed damping
  • Large shaft diameter provides a wide range of adjustment on adjustable shocks
  • OGS (Oil/Gas Separator) prevents cavitation
  • Optimized fitment for unobstructed suspension travel and articulation
  • Patented design
  • Race-inspired performance for increased vehicle stability
  • Serviceable and rebuildable (factory serviced)
  • Smooth honed internal shock body surface for long-term performance
  • Synthetic formula also contains special anti-wear and lubricity agents
  • Vehicle-specific shock absorbers
  • VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
  • VOD reduces shock bottoming at full compression or over uneven terrain

Included Parts

  • All necessary hardware
  • Series 3.1 Piggyback Shocks - all 4

*NOTE* Some items may ship directly from the manufacturer or secondary suppliers; which can impact and delay shipping times.

SKU:03-01-31-400-002
