JK 4dr: 3" Sport ST3 Suspension System - No Shocks (1313000)
JK 4dr: 3" Sport ST3 Suspension System - No Shocks (1313000)
The all-inclusive TeraFlex Sport ST (Street and Trail) Suspensions Systems deliver performance and capability in a dependable and maintenance-free package.
At home on black diamond trails or city streets, the 3 Inch Sport ST3 Suspension System builds on the 2.5 inch Sport ST2 by adding preset rear upper and rear lower Sport flexarms, SpeedBump progressive bump stops, and more.
Although this kit clears the same size tires as the Sport ST2, the additional components increase ground clearance without compromising on- and off-road prowess. No alignment is needed thanks to the six preset Sport flexarms, heavy-duty front track bar, and rear track bar bracket, which optimize correct caster and pinion angles for 2.5-3 inch lift heights.
The Sport ST3 Suspension System can be installed on Friday, wheeled on Saturday, and driven to church on Sunday!
Does Not include shocks. We recommend Falcon shock absorbers for superior performance. Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.
Details:
- JKU 4-Door 3 Inch Sport ST3 Suspension System - No Shocks
- Delivers performance in a dependable and maintenance-free package
- No alignment is needed
- Clears 35 inch tire
- Install it on Friday, Wheel it on Saturday, and Drive it to Church on Sunday!
- Sold As A Kit
- SKU: 1313000
Fits:
- 2007-2018 Jeep JKU Wrangler Unlimited (4-door)
Specs:
- Lift Height: 3 Inches
- Max Tire Diameter: 35 Inches

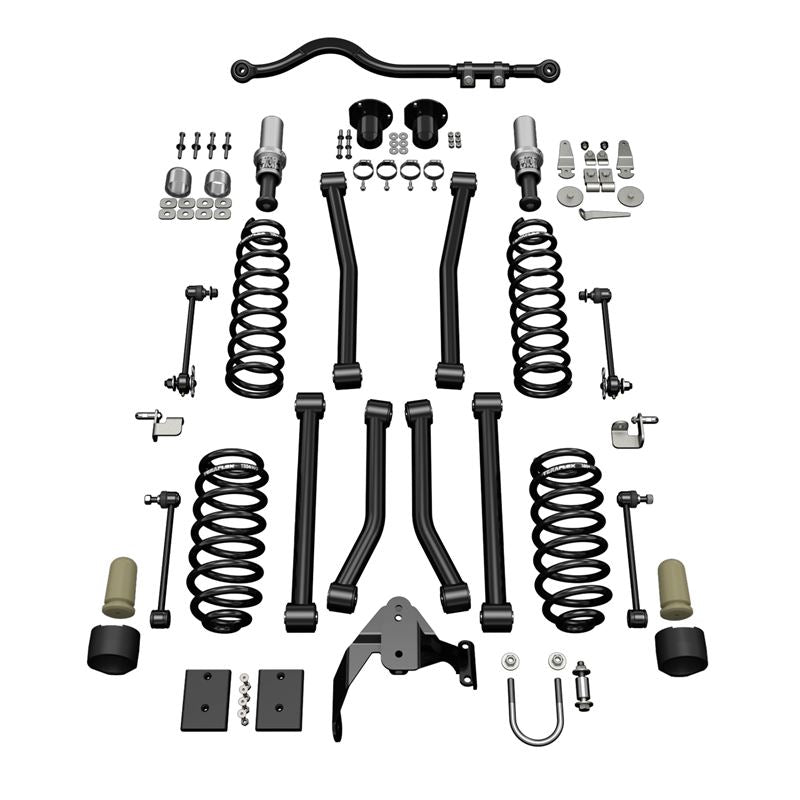

Includes:
- 3 inch lift coil springs
- Preset Sport Flexarms (front lower, rear upper and rear lower)
- HD forged adjustable front track bar
- SpeedBump bump stops
- Front brake line anchor kit
- Front sway bar disconnects
- Rear track bar bracket
- Rear sway bar links
- Exhaust spacers
- All necessary hardware
- And more
Features and Benefits:
- Delivers true street and trail (ST) performance
- Dependable performance w/ zero worries
- Positive, responsive handling w/ reduced noise, vibration, and harshness (NVH)
- Preset Sport flexarms optimize correct caster and pinion angles for 2.5-3 inch lift kits
- High-quality, maintenance-free factory-style bushings provide excellent vibration damping and ride quality
- HD forged adjustable front track bar
- SpeedBump progressive bump stops provide progressive compression during high-speed suspension movement
- Full range of movement for off-road flex and articulation
- Install and drive simple bolt-on installation - no welding required
- No alignment required
- TeraFlex Lifetime Warranty
Notes:
- This is a very heavy item and must be shipped by freight truck
- Requires aftermarket wheels w/ 4.5 inch backspacing or less - or Offset Wheel Adapters (P/N 1055000) for stock wheels
- Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (P/N 1744014)
- 2007-2011 JK/JKU models will require Extended Length Front Brake Lines (P/N 4353300)
- Requires cutting
- Requires longer shocks (not included in base kit) - Falcon shock absorbers recommended
- Install Time: 10 Hours (including shocks)
*NOTE* Some items may ship directly from the manufacturer or secondary suppliers; which can impact and delay shipping times.
