2007-18 Jeep JK Wrangler, 3" Lift, Stage 3 Suspension System (K22003)
2007-18 Jeep JK Wrangler, 3" Lift, Stage 3 Suspension System (K22003)
The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON V.S. 2.0 Aluminum Series Remote Reservoir shocks add the finishing touch with OE mounting, aircraft grade components, and vehicle specific valving. Remote Reservoir shocks are great for additional heat dissipation to prevent shock fade during off road use. Together the combination of ICON dual rate coils and V.S. 2.0 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 3 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. This ICON 3" JK lift system is designed from the ground up to give the Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).
FEATURES & BENEFITS
- Dual Rate Coil Springs Front and Rear
- Adds 30% More Wheel Travel over Stock
- Vehicle can be Returned Back to Stock
- No Welding or Cutting
- Includes High Performance Rebuildable / Revalvable Remote Reservoir 2.0 Aluminum Series Shocks
- Out Articulates Most Long Arm Kits of Comparable Height
- Includes Adjustable Track Bars for Optimized Axle Positioning
- Track Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
- Lifetime Guarantee that Coil Springs Won’t Sag
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
- APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014
- APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
- APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
- APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Ships in Multiple Boxes

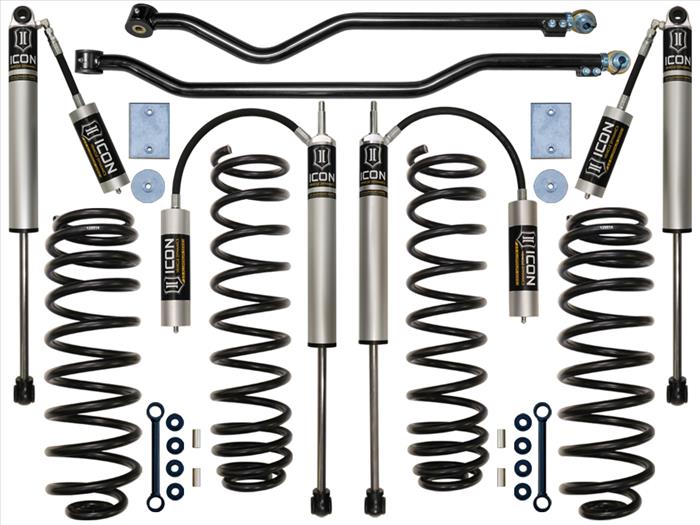

SYSTEM COMPONENTS:
- 22010 (QTY: 1) | 07-18 JK FRONT 3" DUAL RATE SPRING KIT
- 22015 (QTY: 1) | 07-18 JK REAR 2" DUAL RATE SPRING KIT
- 22040 (QTY: 1) | 07-18 JK 3" FRONT/REAR BOX KIT
- 21020 (QTY: 1) | 07-18 JK FRONT ADJ TRACK BAR KIT
- 21025 (QTY: 1) | 07-18 JK REAR ADJ TRACK BAR KIT
- 26519R (QTY: 2) | 07-18 JK 2-3" FRONT 2.0 VS RR
- 26520R (QTY: 2) | 07-18 JK 2-3" REAR 2.0 VS RR
*NOTE* Some items may ship directly from the manufacturer or secondary suppliers; which can impact and delay shipping times.
