HKS

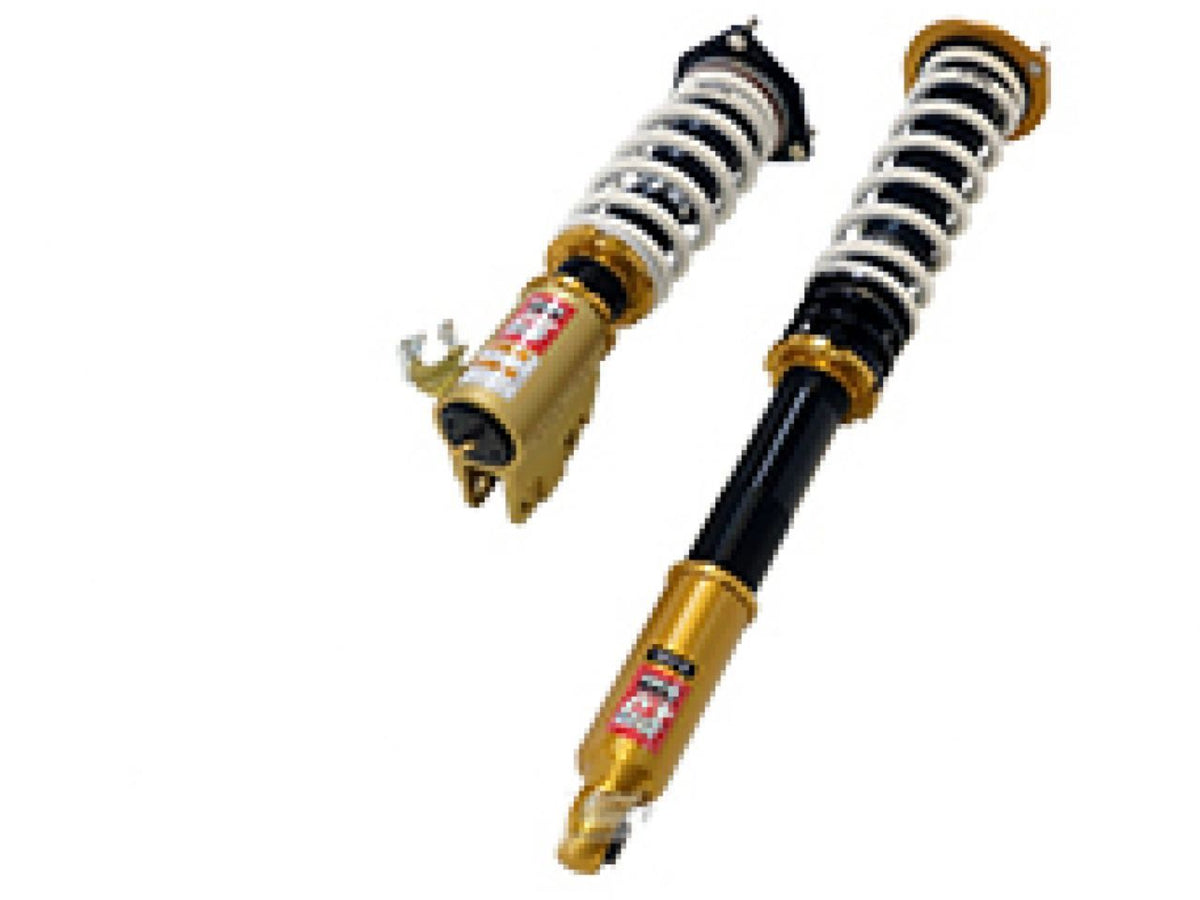

HKS Hipermax IV GT S15/S14 Full Kit

Contact for Availability
SKU: 0JN0N
No reviews
$1,500.00 USD
Product Details
  • Type Lowering Coilover
  • Vendor HKS
  • SKU 0JN0N

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(619) 929-0590

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65

Single Tube Damper Design

  • Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.

Dust Boot

  • Protect the shaft from the flying stones.

PNE Coating

  • Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.

M Shaft (?46 normal type)

  • With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.

Adopted Pillow Ball Upper Mount

  • For more accurate and sharp steering.

New Design Needle

  • Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.

Reduction of Unsprung Weight

  • In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)

30 Step Damping Force Adjustment

  • 30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.

Specification:

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket ? ?
Upper mount Rubber Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)		 - ? ( 19.8 )

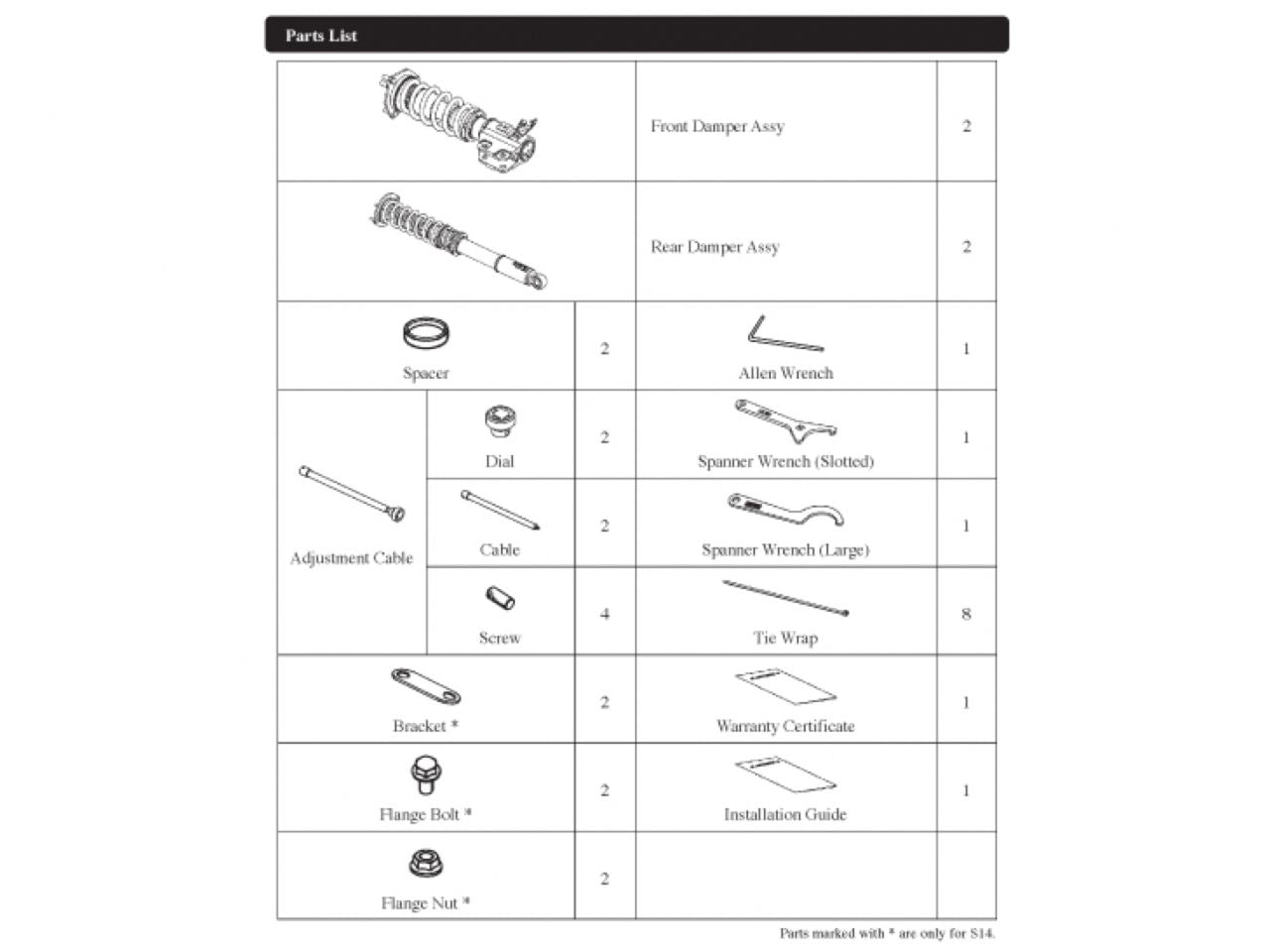

Kit Information

  • Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 59 ( 6 ) 49 ( 5 )
Free height (mm) 220 250
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )
  • Specification of damper
  F R
Damping force (Rebound/Damping)N* 839 / 382 211 / 137
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 32 / 81 79 / 85
  • Setting Data
  F R
Default Test Drivable limit
High *		 Drivable limit
Low *		 Default Test Drivable limit
High *		 Drivable limit
Low *
Length of
case (mm)		 230 ? 271 230 486 ? 516 469
Spring
Set length(mm)		 207 ? 207 220 316 ? 301 325
Length to ride hight
adjuster (mm)		 30 ? 71 17 171 ? 201 145
Lever ratio 1.14 1.00
