Elevate Front Coilover Billet Preload Collar, 1.5" lift, 17-20 Raptor

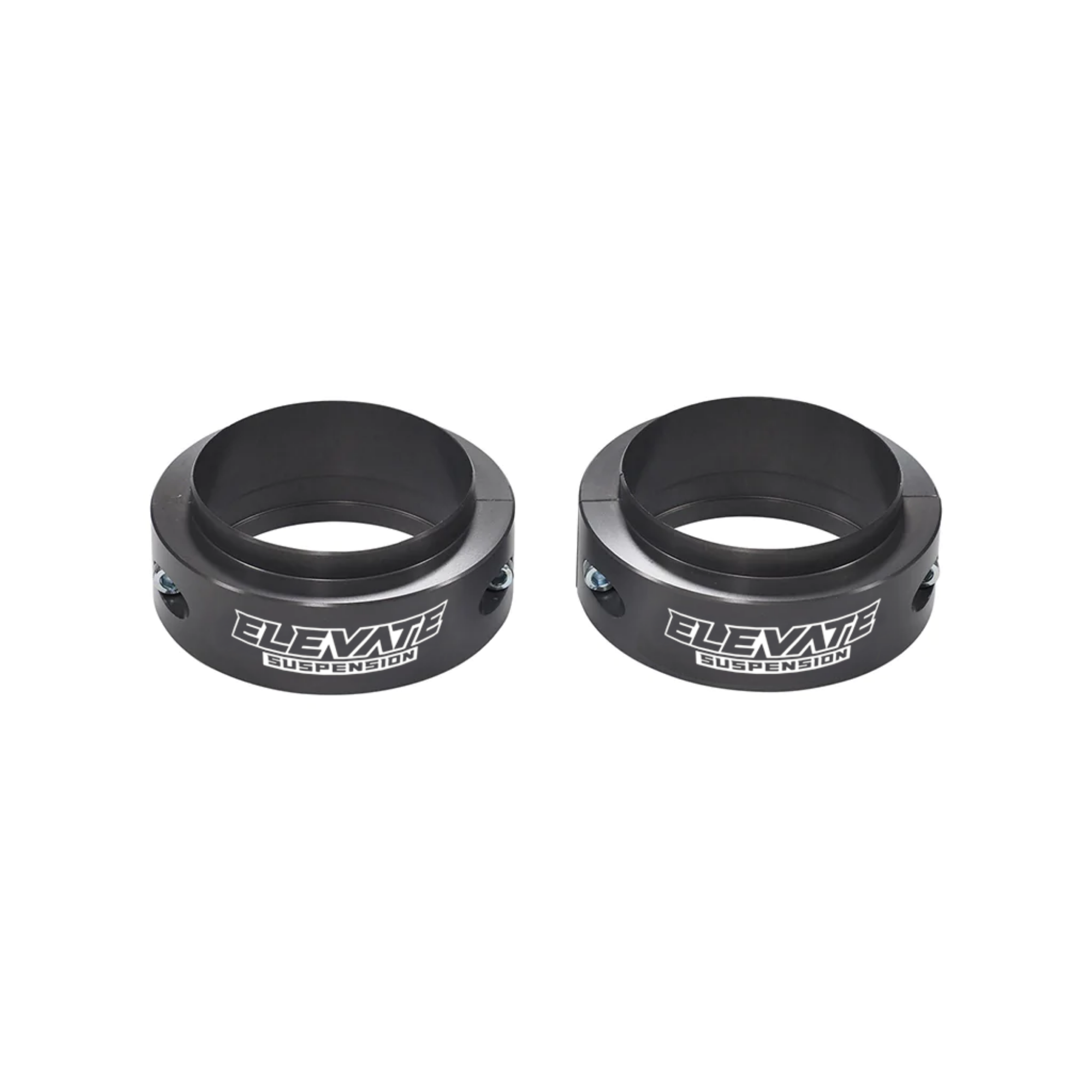

The latest-generation Ford Raptor is one of the most capable vehicles to ever roll off a showroom floor. But, for those lucky enough to own one, the Raptor’s nose-down stance is a bit of a bummer. A simple and affordable way to level out your shiny new Ford Raptor is Elevate Suspension's Front Spring Preload Spacers. Machined from high-quality 6061-T6 aluminum with a Type III hard anodized finish, our spacers provide 1.5-inches of lift for a level stance. A critical difference between Elevate's spacer system and cheaper kits is that ours adds preload instead of spacing the factory coilovers downward. This means that there is no loss of bump or droop travel since the coilover remains in the factory position. Restricting wheel travel on a Raptor is heresy and we will have none of that. The Elevate Front Spring Preload Spacers are designed to work with both Live Valve and non-Live Valve factory coilovers to maintain a smooth, factory ride. They are easy to install with a bolt-on design that does not require the coilovers to be removed. Elevate's front Spring Preload Spacers are a simple, effective, and budget-friendly way to level your Raptor.

• Provides 1.5-inches of lift on 2017+ Ford Raptors
• Does not limit wheel travel
• Moves lower spring perch up to gain lift height
• Precision machined from 6061-T6 aluminum with Type III hard anodized finish
• Works on factory Live Valve and non-Live Valve coilovers
• Stainless steel hardware

• A pair of Elevate Suspension Factory Coilover Billet Lift Spacers.
• 1011 – Billet Pre-Load Spacer (Front 1.5")

Q: What additional lift height do the spacers provide once installed on the factory Coilovers?

A: Elevate billet Raptor spacers will provide 1.5" of height in the front providing a near level stance.

Q: Can the spacers be installed with the Coilovers on the vehicle?

A: No, to properly install the spacers, the factory Coilovers assembly must be removed in order to properly collapse the spring in order to install.

Q: Will the spacers work with Fox Live Valve Shocks?

A: Yes, but it may be necessary to slightly modify the live valve wire retainer once reinstalling the shocks with the spring spacers installed.

Q: What size tires are recommended?

A: We recommend running the factory size tires (35") for proper tire clearance.

1. Elevate Billet Uniball / Heim UCA – Part Number: 1001
2. Stage 3 lift w/ Factory Series Gen 2 Live Valve– Part Number: K215
3. Fox Factory Series Shocks Live Valve– Part Number: K904
4. Rear Replacement Springs – Gen 2 – Part Number: K954
