2007-2018 Chevy Silverado / GMC Sierra 1500 - Boxed Upper Control Arms

*Note* Images are for reference; actual product may vary in color, size, or design.

Dirt King

2007-2018 Chevy Silverado / GMC Sierra 1500 - Boxed Upper Control Arms

In stock

SKU: Make Selection

No reviews

$849.00 USD

OEM Suspension Type

Select Cast Steel 07-16 Models Cast Aluminum 14-16 Models Stamped Steel 16-18 Models

Product Details

Type Upper Control Arm
Vendor Dirt King
SKU Make Selection
Barcode 266233119

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We upgraded the ball joints to heavy duty Moog joints for maximum strength and increased articulation. For the inner pivots we use durable delrin bushings with grease fittings for easy servicing. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

Specifications

Amount of Lift: 0-3”
Track Width: Stock
Maximum Backspacing: 4.75”
Minimum Rim Size: 17”
Compatible with Sway Bar: Yes
Coil Over Shock Size: Stock or OEM replacement shocks

Wheel Travel / Lift
The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer maximum down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

Tire Info
The upper control arms allow for 35” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

Magnetic Ride Control
Installing this suspension on vehicles equipped with magnetic ride control require modifications to the ride control sensors. If you choose to replace the magnetic ride control shocks with coil overs it will cause an indication light to appear on the gauge cluster.

What's Included

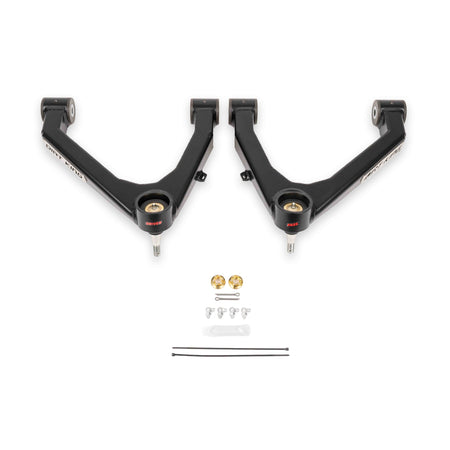

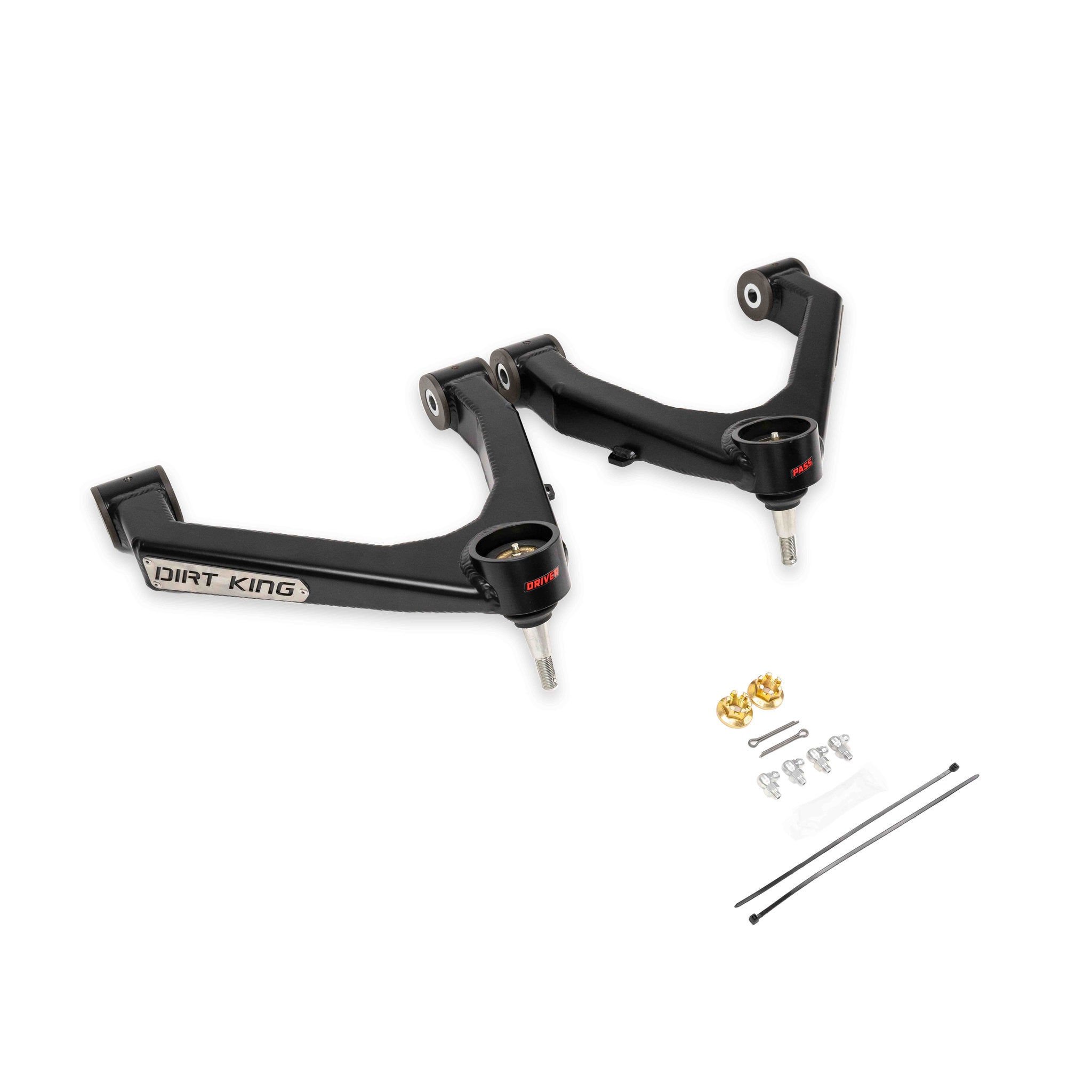

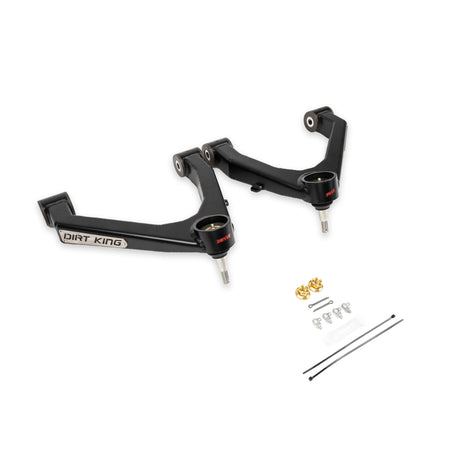

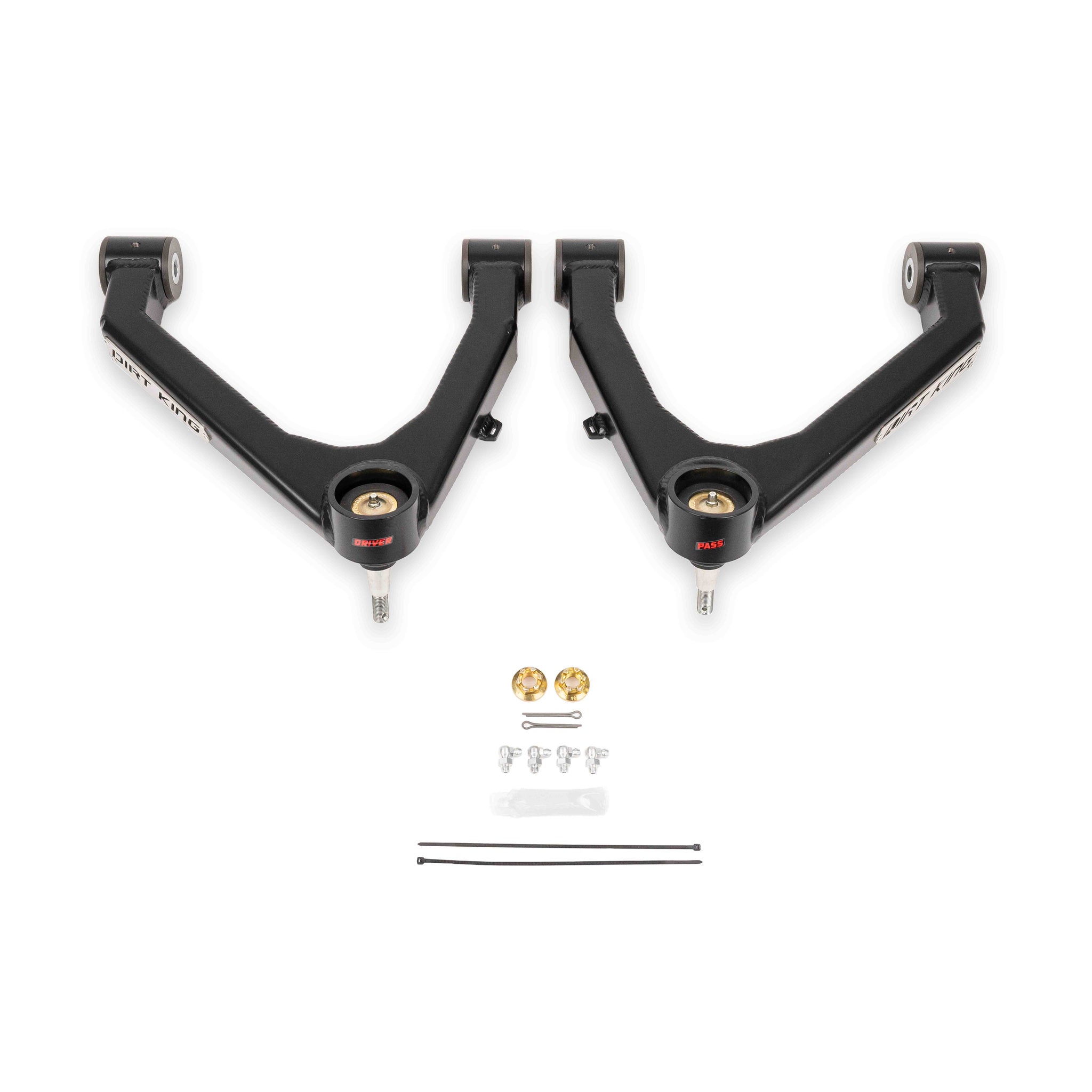

Boxed plate upper control arms
Delrin bushings
Grease fittings

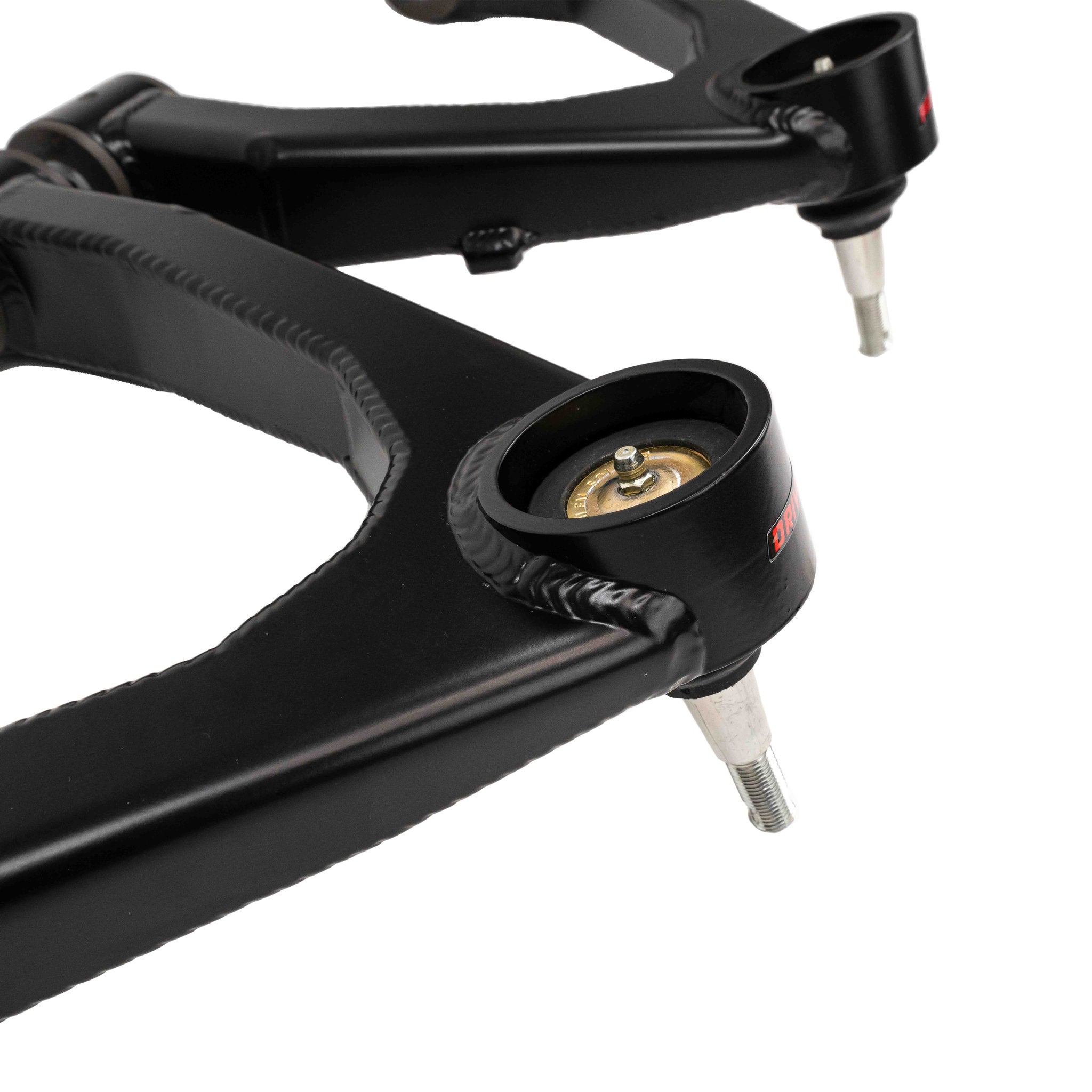

Moog ball joints
Zinc plated inner bushing sleeves
Durable black powder coat
Dirt King sticker pack
Installation instructions

Features

CAD designed

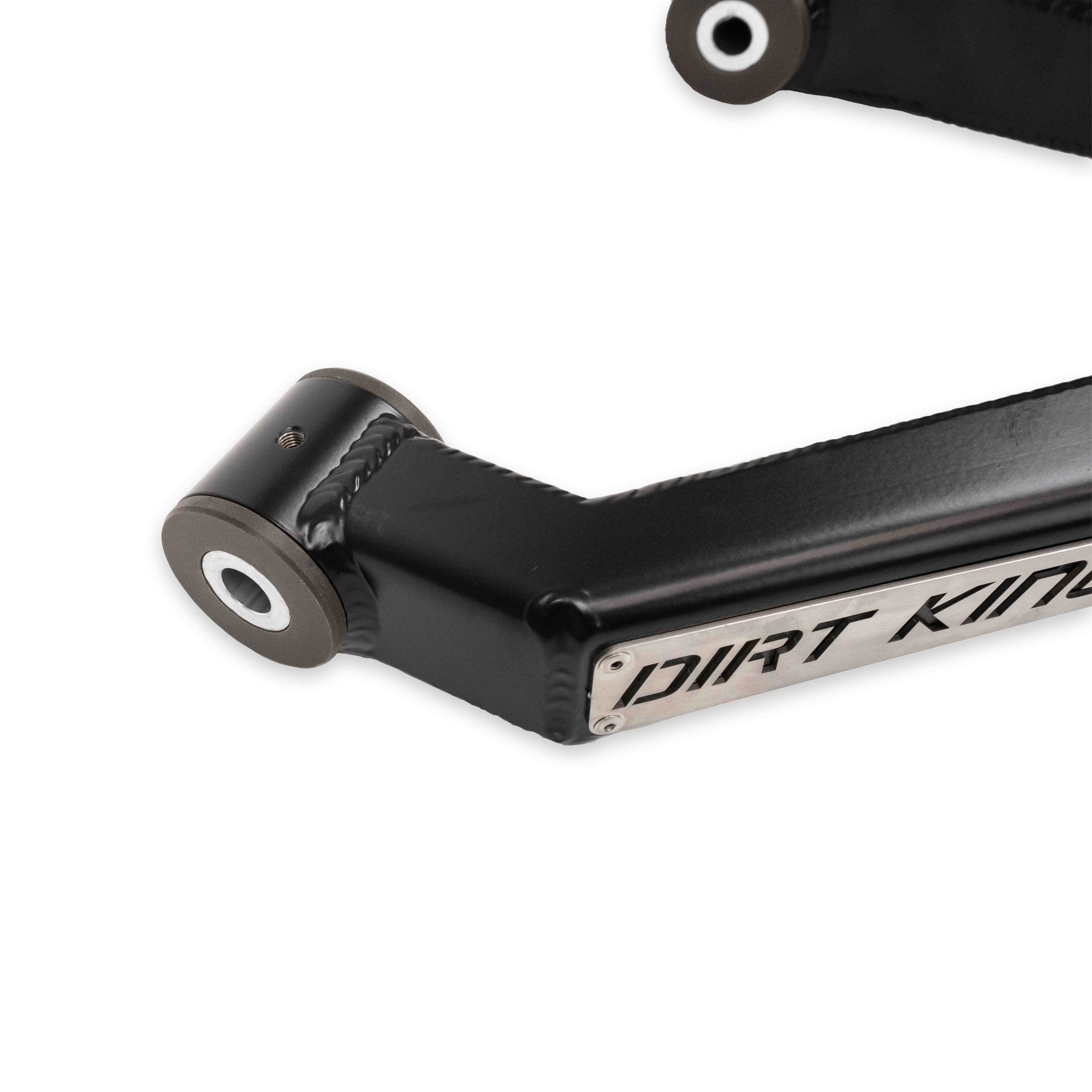

Boxed plate construction
Brushed stainless steel logo plates
Preassembled for fast installation
Grease fitting ports for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA

Compatibility

2007-2018 Chevy Silverado 1500 2WD / 4WD
2007-2018 GMC Sierra 1500 2WD / 4WD
