*Note* Images are for reference; actual product may vary in color, size, or design.

Dirt King

2003–2024 Toyota 4Runner - 4130 Upper Control Arms

In stock
SKU: DK-812993-GD
No reviews
$899.00 USD
Badge & Cap Color
Product Details
  • Type Upper Control Arm
  • Vendor Dirt King
  • SKU DK-812993-GD
  • Barcode DK-812993-GD

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65



Description

Dirt King 4130 Upper Control Arms – Built to Solve Real Problems

If you drive a 2003–2024 4Runner (2WD or 4WD) and ready for a suspension upgrade, these 4130 UCAs are for you. We made them to tackle the exact issues we kept running into ourselves—squeaky bushings, joints that need constant attention, and geometry thrown off as soon as you add a lift. Whether you’re daily driving, overlanding, rock crawling, or chasing desert trails, these UCAs handle it all.

These arms feature maintenance-free SilentSpin™ bushings that eliminate grease fittings and unwanted noise, along with heavy-duty Probearing Pro 4 ball joints for high articulation and superior strength. The ball joints are sealed to block out debris and finished with anodized caps. Built to maintain proper alignment from 0–3" of lift, these arms also add roughly an inch of down travel compared to stock, a must-have when paired with our shocks or other aftermarket coilovers like King, Fox, Icon, and more.

Why Go Dirt King?

  • SilentSpin™ bushings — no squeaks or maintenance
  • Pro 4 ball joints with sealed dust caps
  • Rebuildable, USA-made construction
  • Precision-welded 4130 chromoly tubing
  • Shipped preassembled for faster installs

Upgrade Your 4Runner With Confidence
Built and tested in the USA, these 4130 UCAs are engineered for the long haul—perfect for rigs that work hard on weekdays and explore even harder on weekends. It’s the last set of upper control arms you’ll ever need.

Specifications

  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 17”

Note: Do not install with coil spacers combined with extended-length aftermarket shocks.

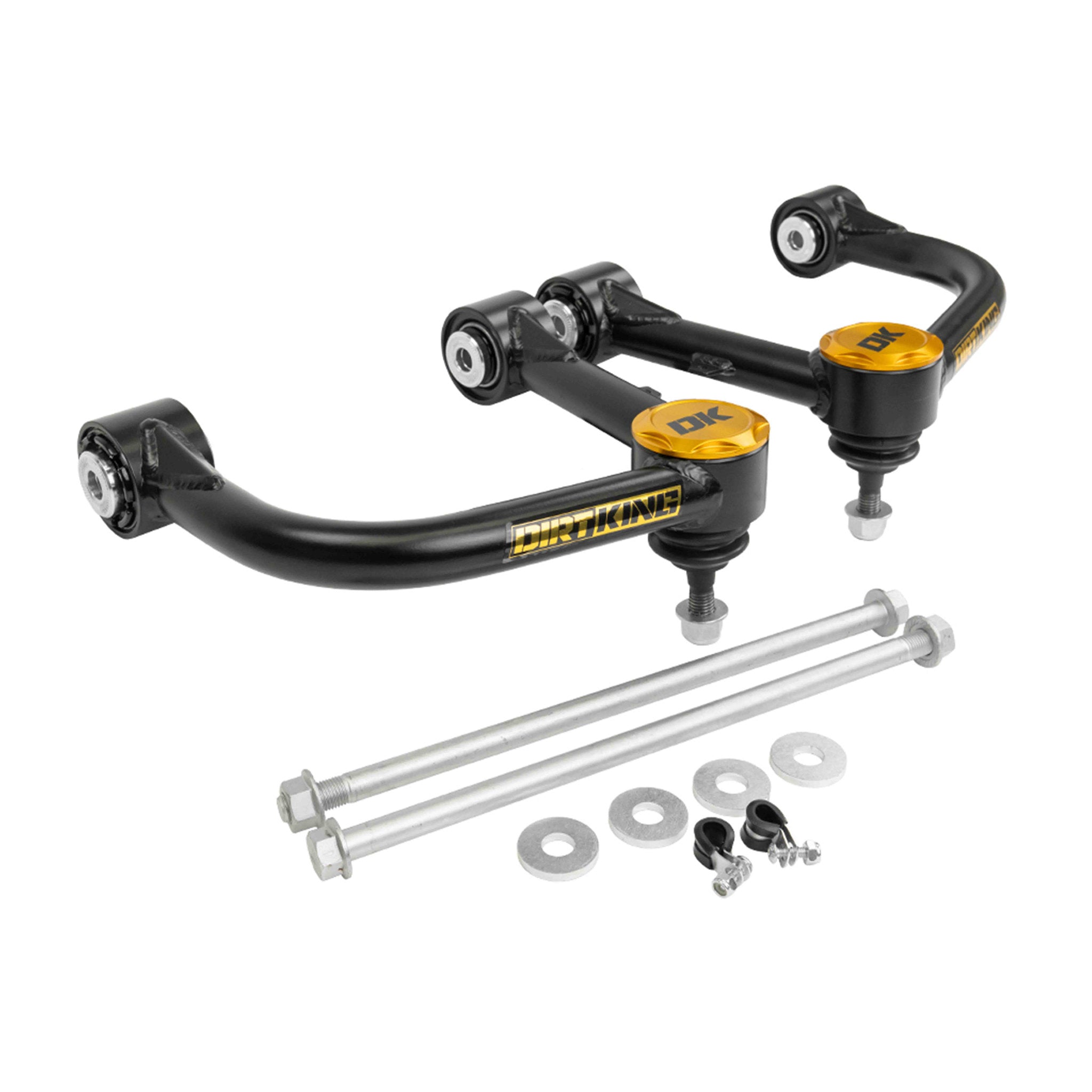

What's Included

  • 4130 Chromoly upper control arms
  • Probearing SilentSpin bushings
  • Probearing Pro 4 Series Ball Joints
  • Ball joint caps
  • Upper control arm bolts
  • Dirt King sticker pack

Features

  • Pro 4 Series Ball Joints – Forged SAE4140 housing, 76° of articulation, and induction-hardened ball stud for maximum strength and smoother steering feel
  • SilentSpin Hybrid Bushings – Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation
  • Geometry Corrected – Improved caster and pivot angles deliver better handling and control with up to 3” of lift
  • 4130 Chromoly Construction – Built with high-strength tubing and reinforced gussets for extreme durability
  • Fully Rebuildable Design – All wear items are replaceable for long-term reliability
  • Corrosion-Resistant Finishes – Zinc-plated hardware and black powder coat protect against the elements
  • Professionally MIG Welded – Ensures structural integrity for demanding off-road use
  • Preassembled – Quick, hassle-free installation with no guesswork
  • Made in the USA – Built with pride and quality you can trust

Compatibility

2003-2024 Toyota 4Runner 2WD / 4WD
2007-2014 Toyota FJ Cruiser 2WD / 4WD
2003-2009 Lexus GX470 4WD
2010-2023 Lexus GX460 4WD

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

Instructions
