2004-2008 Ford F-150 2WD - 3.5" Lift Spindles

*Note* Images are for reference; actual product may vary in color, size, or design.

Dirt King

2004-2008 Ford F-150 2WD - 3.5" Lift Spindles

Name: 2004-2008 Ford F-150 2WD - 3.5" Lift Spindles
Brand: Dirt King
SKU: DK-922906
Price: 1199.00 USD
Availability: InStock

In stock

SKU: DK-922906

No reviews

$1,199.00 USD

Product Details

Type Lift Kit
Vendor Dirt King
SKU DK-922906
Barcode DK-922906

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description

The Dirt King fabricated lift spindles raise the front end a true 3.5" without compromising the ride quality. These spindles are currently the only lift spindles available for the F-150’s that accept both factory or aftermarket upper and lower control arms. The spindles are the CAD designed and constructed from 1/4" thick steel plate. Included with the spindles is all necessary mounting hardware and detailed installation instructions.

Specifications

Amount of Lift: 3.5”
Track Width: 1.75" wider per side
Maximum Tire Size: 35”
Maximum Backspacing: 5.25”
Minimum Rim Size: 17”

Track Width
The Dirt King lift spindles increase the track width 1.75” per side. Due to the increased width wider fiberglass fenders may need to be installed.

Tire Info
If installing 35” tires modifications to the wheel wells and bumper may need to be made for proper tire clearance.

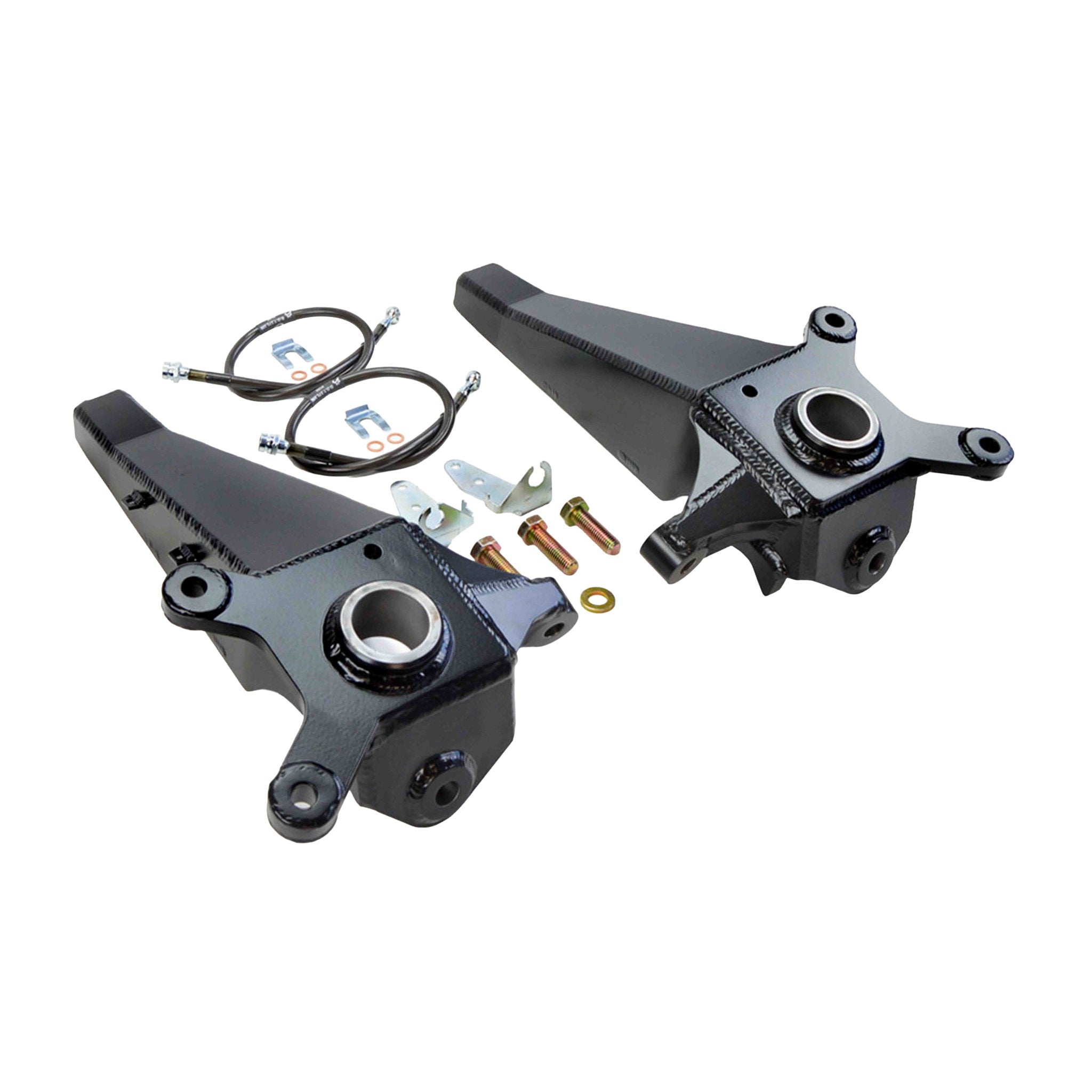

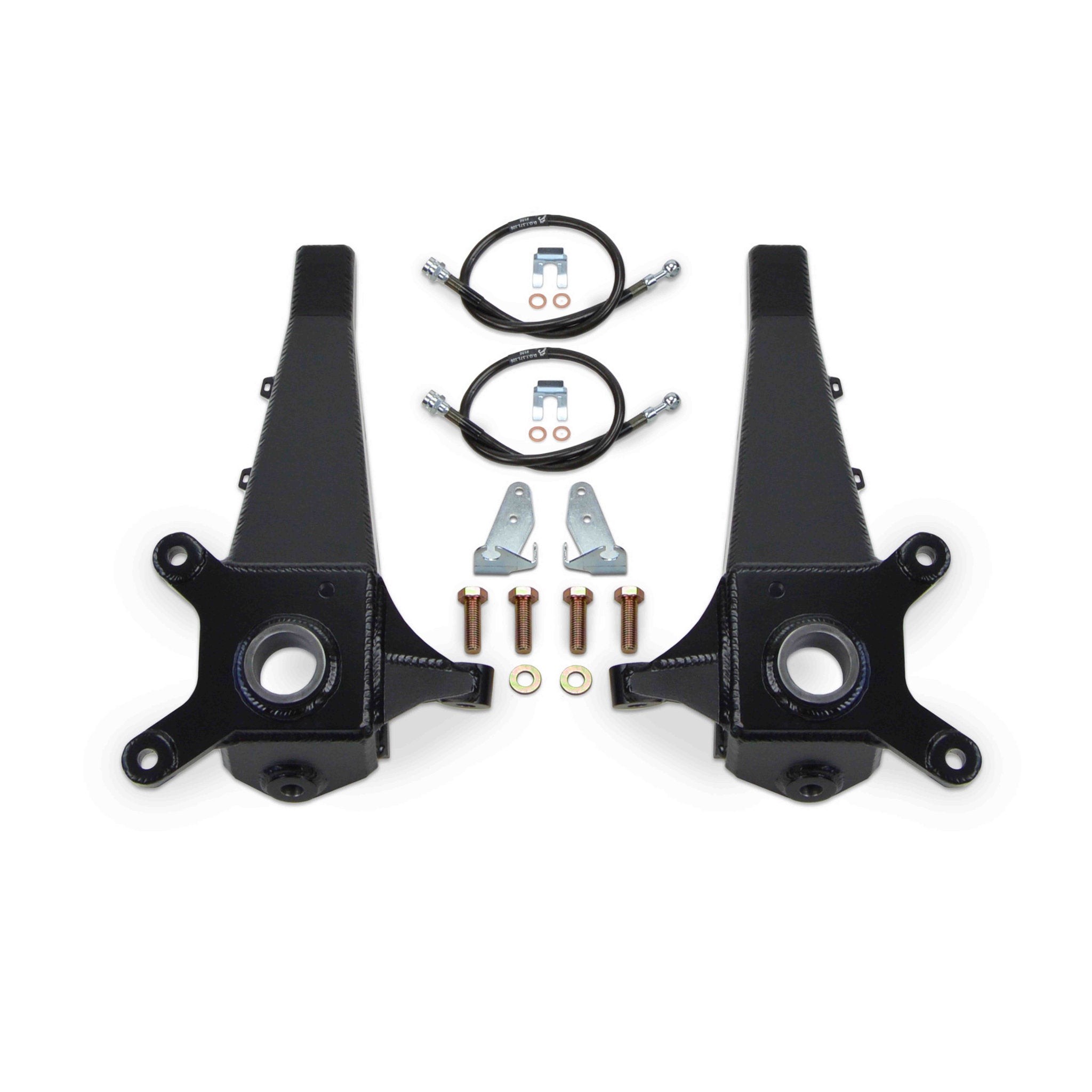

What's Included

Fabricated lift spindles
Extended DOT approved brake lines
Brake line mounting brackets
Grade 10.9 caliper mounting bolts
Upper control arm washers
Installation instructions

Features

Direct bolt on application
CAD designed
Professionally MIG welded
Proudly made in the USA

Instructions

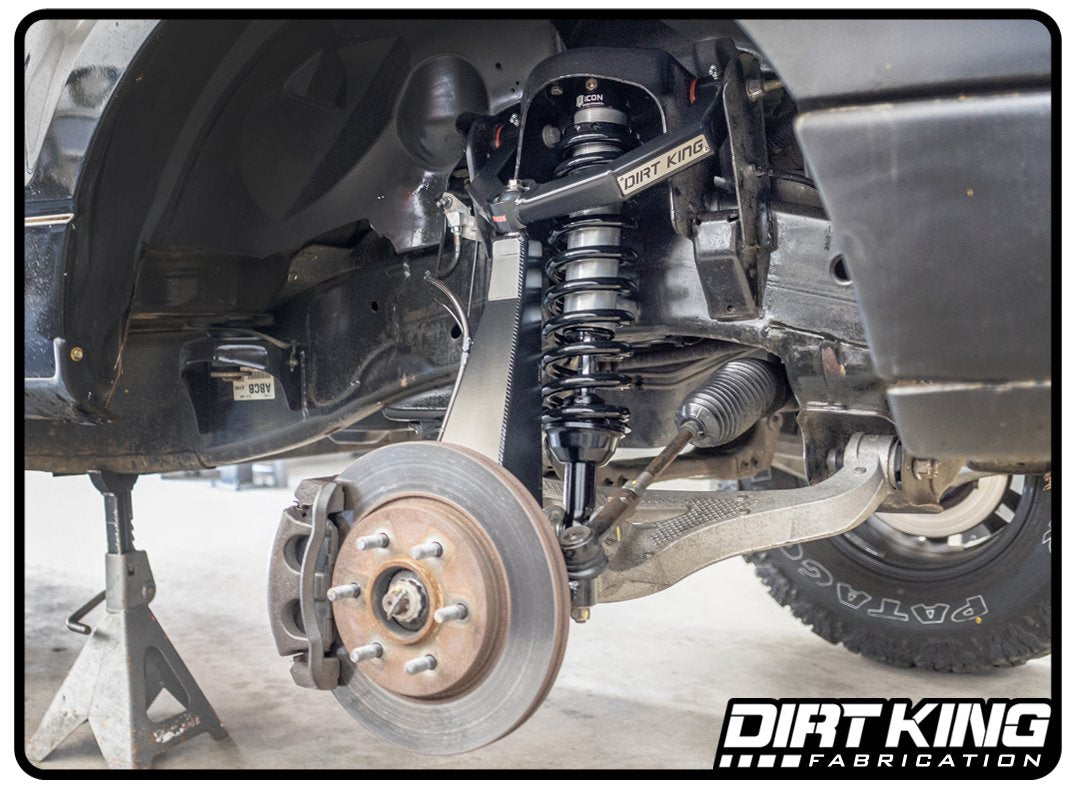

Installation
The installation of this product requires the use of factory hub snouts. They will need to be pressed out of the factory spindles and pressed into the new Dirt King lift spindles.

Compatibility

lift
