Icon Vehicle Dynamics

2020-Up Jeep Gladiator, 2.5" Lift, Stage 8 Suspension System, Billet UCA (K22108)

2020-Up Jeep Gladiator, 2.5" Lift, Stage 8 Suspension System, Billet UCA (K22108)

Regular price $6,976.40 USD
Regular price Sale price $6,976.40 USD
Sale Sold out
Shipping calculated at checkout.

The Stage 8 ICON 2.5” Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks with CDC Valve technology, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

FEATURES & BENEFITS

  • 2.5" lift height
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front upper and lower links included for caster angle correction and improved front end articulation
  • Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
  • Front and rear track bars ensure proper alignment and improved articulation
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070
  • APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
  • Ships In Multiple Boxes

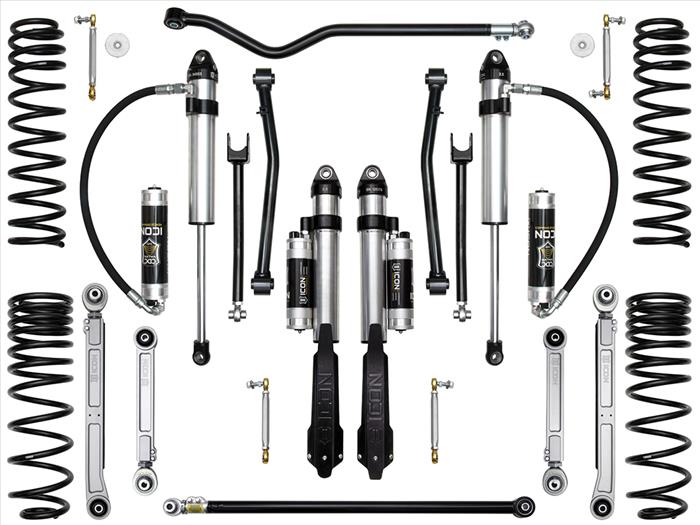

SYSTEM COMPONENTS:



  • 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
  • 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
  • 22063 (QTY: 1) | 20-UP JT BILLET REAR ADJUSTABLE LOWER LINK KIT
  • 22064 (QTY: 1) | 20-UP JT BILLET REAR ADJUSTABLE UPPER LINK KIT
  • 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
  • 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
  • 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
  • 22070 (QTY: 1) | 20-UP JT REAR SWAY BAR LINK KIT
  • 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
  • 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
  • 27821CP (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR CDCV PAIR
  • 27727CP (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB CDCV PAIR

*NOTE* Some items may ship directly from the manufacturer or secondary suppliers; which can impact and delay shipping times.

SKU:k22108
