Icon Vehicle Dynamics

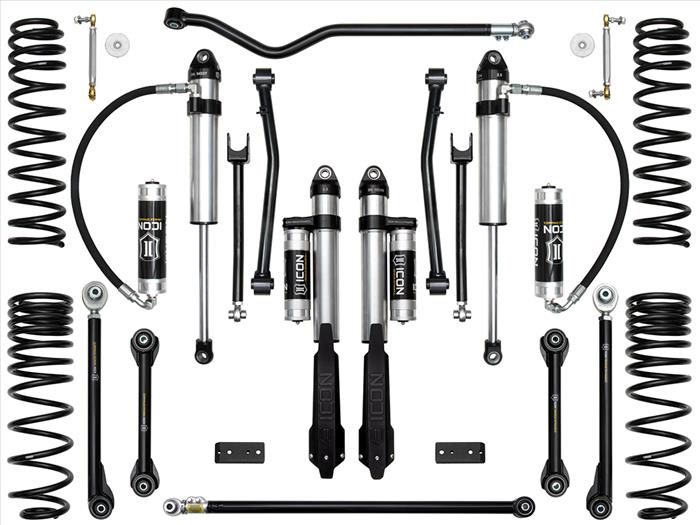

2020-Up Jeep Gladiator, 2.5" Lift, Stage 7 Suspension System, Tubular UCA (K22107T)

In stock
SKU: k22107T
No reviews
$5,228.40 USD

Product Details

  • Type Lift Kit
  • Vendor Icon Vehicle Dynamics
  • SKU k22107T

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65

The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

FEATURES & BENEFITS

  • 2.5" lift height
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front upper and lower links included for caster angle correction and improved front end articulation
  • Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Front and rear track bars ensure proper alignment and improved articulation
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070
  • APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
  • Ships In Multiple Boxes

SYSTEM COMPONENTS:



  • 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
  • 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
  • 22063T (QTY: 1) | 20-UP JT TUBULAR REAR ADJUSTABLE LOWER LINK KIT
  • 22064T (QTY: 1) | 20-UP JT TUBULAR REAR UPPER LINK KIT
  • 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
  • 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
  • 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
  • 22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
  • 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
  • 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
  • 27821P (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR
  • 27727P (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB PAIR
