Icon Vehicle Dynamics

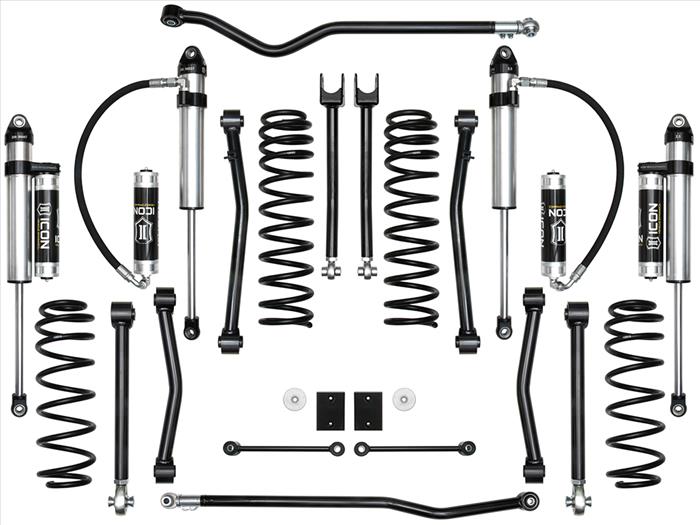

2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 7 Suspension System (K22017)

In stock
SKU: k22017
No reviews
$4,893.50 USD

Product Details

  • Type Lift Kit
  • Vendor Icon Vehicle Dynamics
  • SKU k22017

Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779

Like this product? Share via the links below!

Description Fitment Shipping Reviews Prop 65

The ICON Vehicle Dynamics Stage 7 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 7 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 7 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.

FEATURES & BENEFITS

  • 2.5" lift height
  • Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
  • 3" front, 2" rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Dual rate coil springs with lifetime guarantee against sagging/breakage
  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
  • APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
  • APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine.
  • Ships In Multiple Boxes

SYSTEM COMPONENTS:



  • 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
  • 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
  • 22023 (QTY: 1) | 18-UP JL REAR ADJ LOWER LINK KIT
  • 22024 (QTY: 1) | 18-UP JL REAR FIXED UPPER LINK KIT
  • 22025 (QTY: 1) | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT
  • 22026 (QTY: 1) | 18-UP JL 2.5" REAR DUAL RATE SPRING KIT
  • 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
  • 22028 (QTY: 1) | 18-UP JL REAR ADJ TRACK BAR KIT
  • 27821P (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR
  • 27726P (QTY: 1) | 18-UP JL 2.5" REAR 2.5 VS PB PAIR
