Icon Vehicle Dynamics

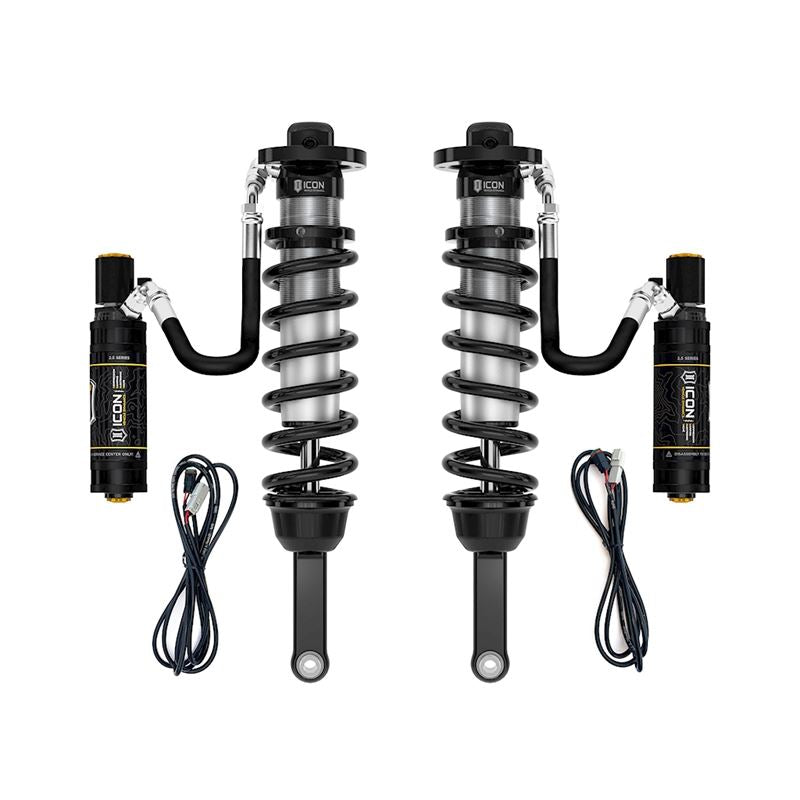

2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, RR/CDEV Coilover Kit, 700 lbs/in Coils (58735E-700)

2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, RR/CDEV Coilover Kit, 700 lbs/in Coils (58735E-700)

Regular price $2,807.95 USD
Regular price Sale price $2,807.95 USD
Sale Sold out
Shipping calculated at checkout.

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

FEATURES & BENEFITS

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-2023 models) of lift height over stock
  • ICON engineered coil springs with 700 lbs/in spring rate
  • External reservoirs to attain cooler operating temperatures during extended off-road use
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Bolt-on kit - no cutting or welding necessary for installation
  • 100% Rebuildable
  • 100% Revalveable

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • TECH NOTE: Aftermarket front upper control arms required for installation
  • TECH NOTE: Also requires installation of IIC kit (Part # 53502 or 53507) and CDEV rear shocks (Part # 57826EP)
  • TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
  • TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models

*NOTE* Some items may ship directly from the manufacturer or secondary suppliers; which can impact and delay shipping times.

SKU:58735E-700
