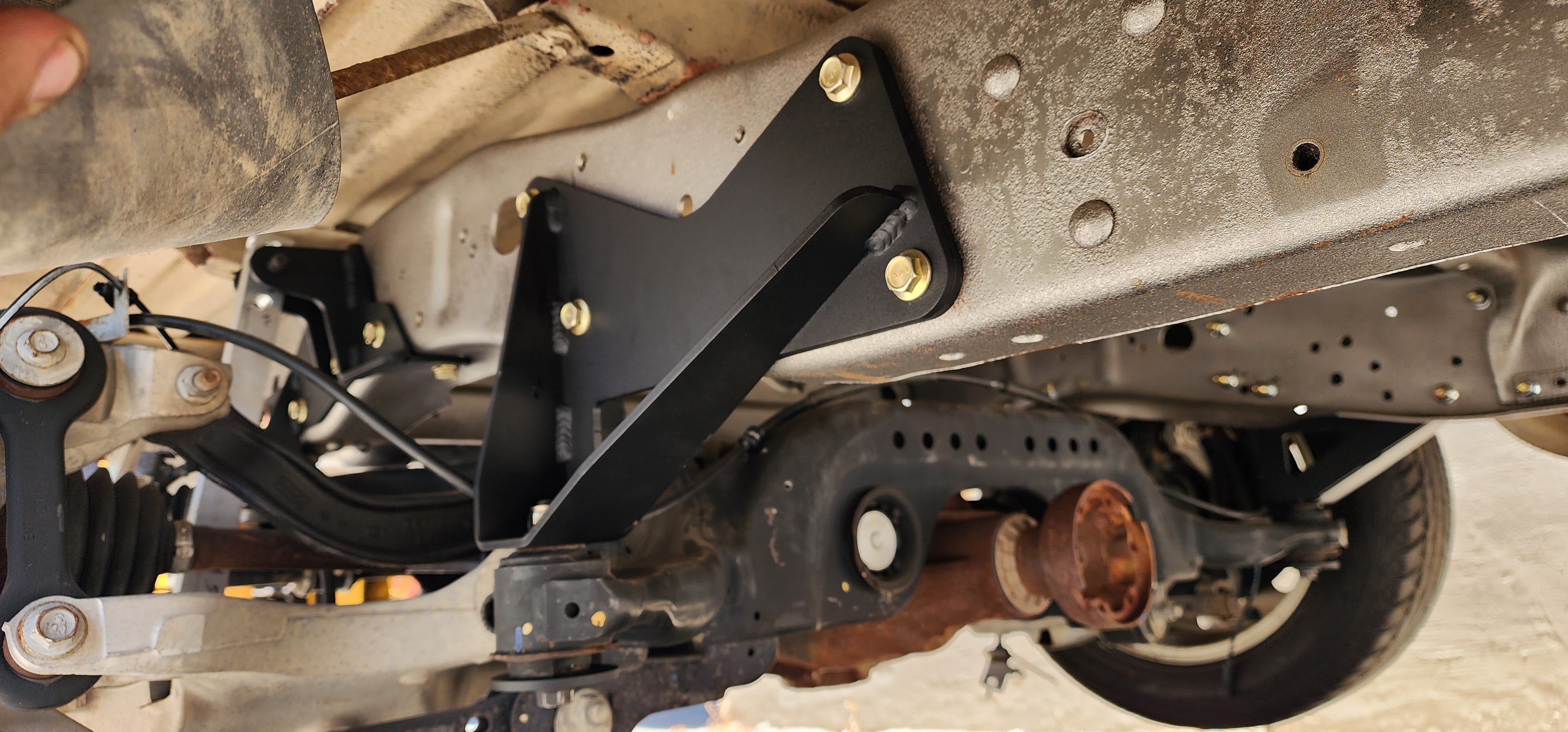

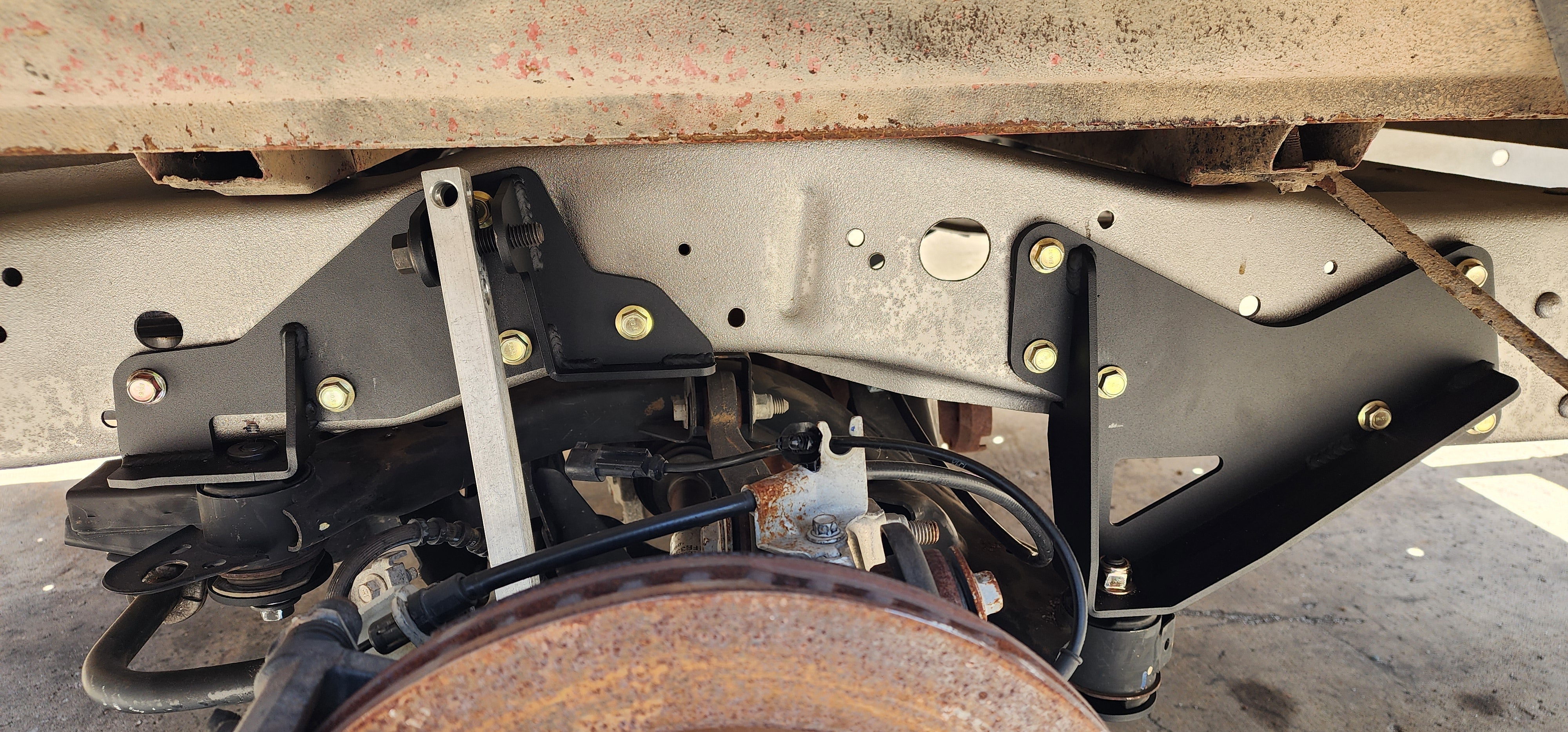

This kit is designed to allow the S-550 suspension to bolt to a F-100 (38" wide rear frame) using the factory subframe mounts on the 2014-2023 Mustang S-550 rear suspension. It also integrates mounts for a 12” coil-over (We recommend 300-350 lb spring rate.). This setup allows for an unmodified bed and much lower than stock ride height, as well as modern, brakes, suspension, and a limited slip differential. The kit uses the leaf spring bracket holes to locate the assembly (be careful not to mangle the holes when you are removing the factory rivets!) and bolts to the side and bottom of the frame rails. You will need to drill some holes for installation, but the brackets act as templates to keep the install simple and straight forward.
Need a yoke to run a normal driveshaft with the S550 Rear Suspension? Click the link below!
INSTALL GUIDE

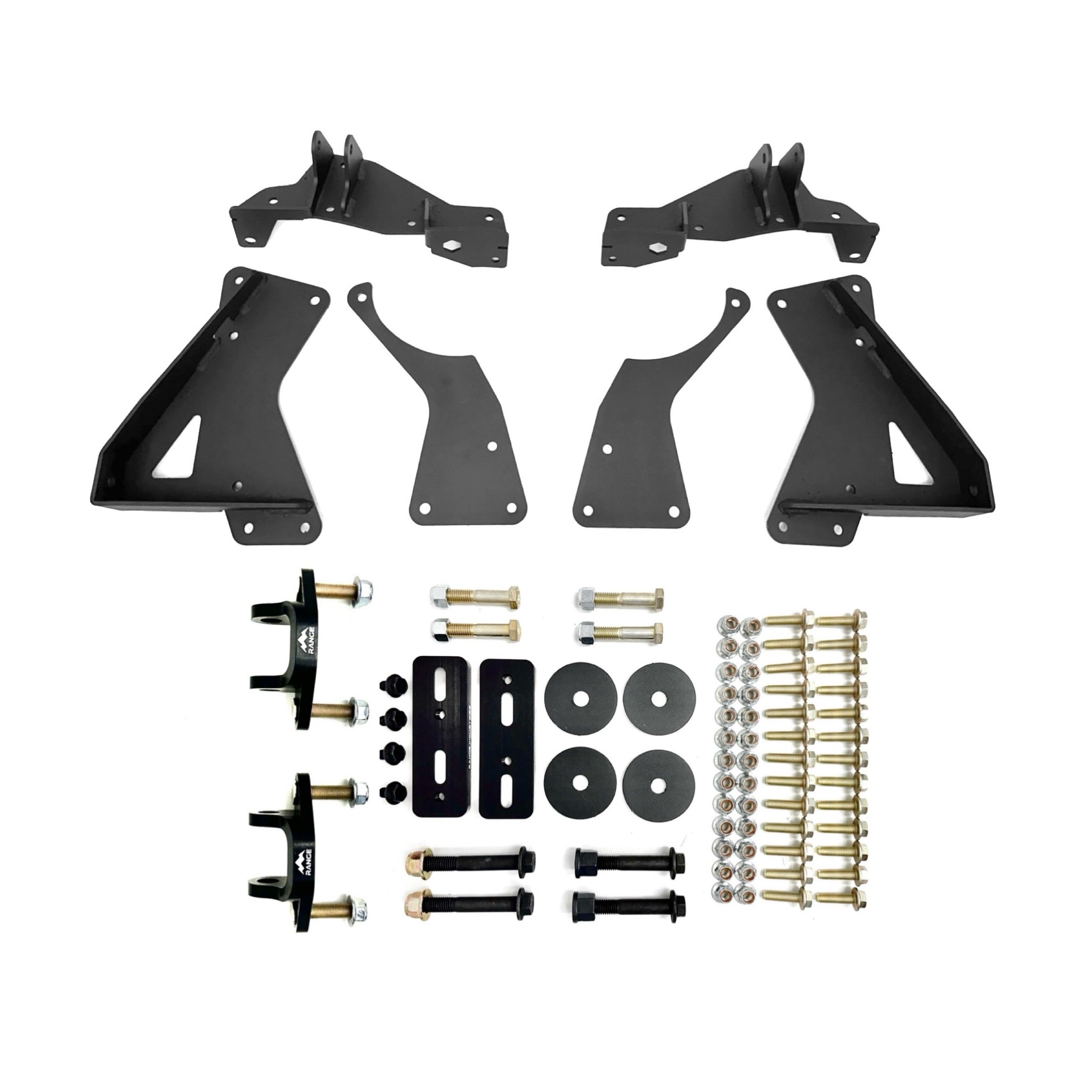

Kit contains all mounting brackets and hardware required to mount the 2014-2023 Mustang S-550 rear subframe to your F-100 frame. Coil-overs not included in kit.
Ride height is designed to match a crown vic front (Approx 4" drop with 12 in eye to eye coilover).
Will these fit my car? We can only confirm fitment for the vehicles listed above pertaining to the tile, content, and description. For questions or concerns regarding fitment, reach out to us via phone or text. 📞(831)-222-0779
