1961-1978 34" F-100 Bolt-In S-550 Mustang Rear Mounting Kit
Regular price
$795.00 USD
Couldn't load pickup availability
Product Details
- Type Suspension Mounting Kit
- Vendor Range Industries
- SKU 000-107-696
Questions and concerns regarding fitment and availability? Reach out via call or text! 📞(831) 222-0779
Like this product? Share via the links below!

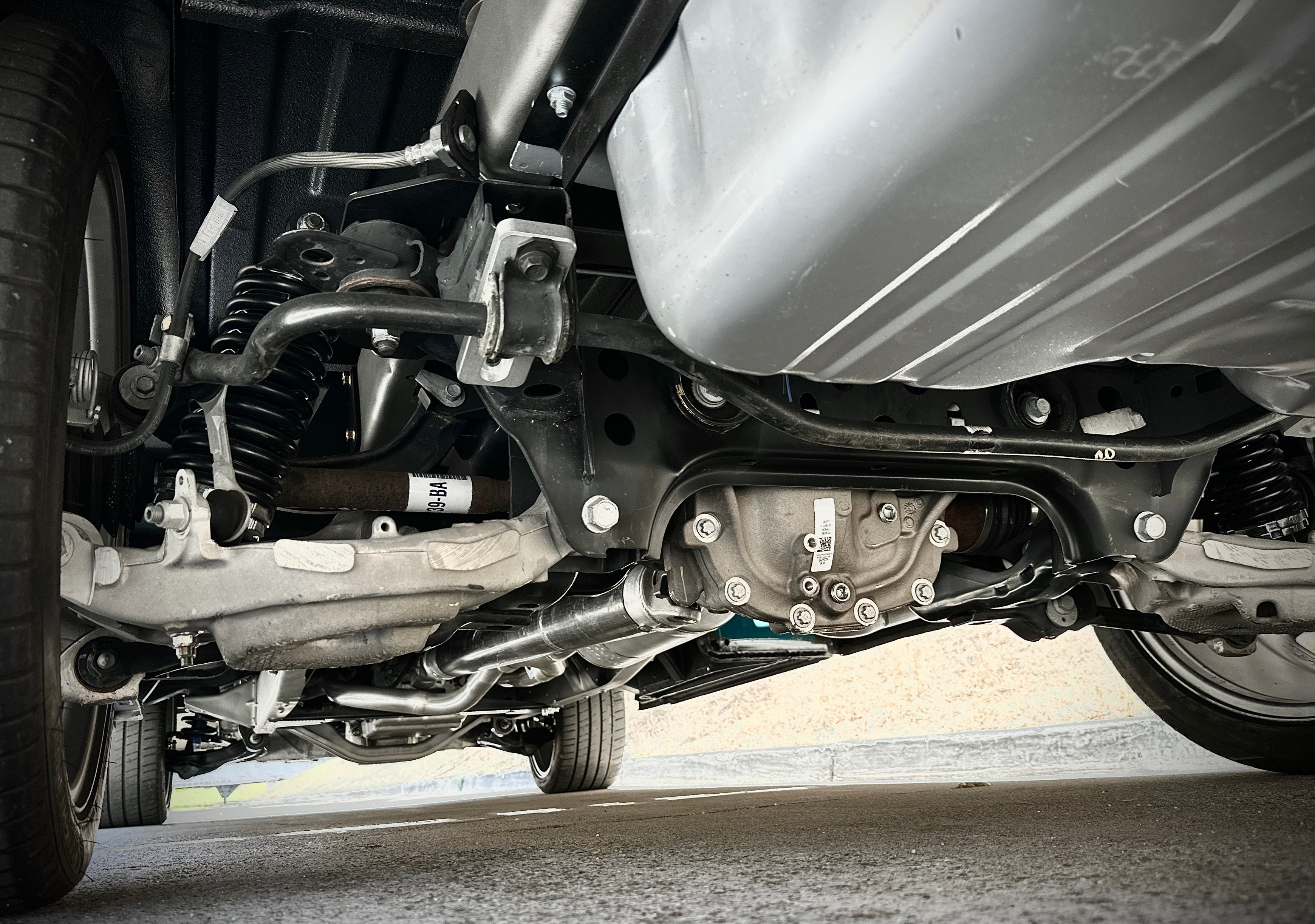

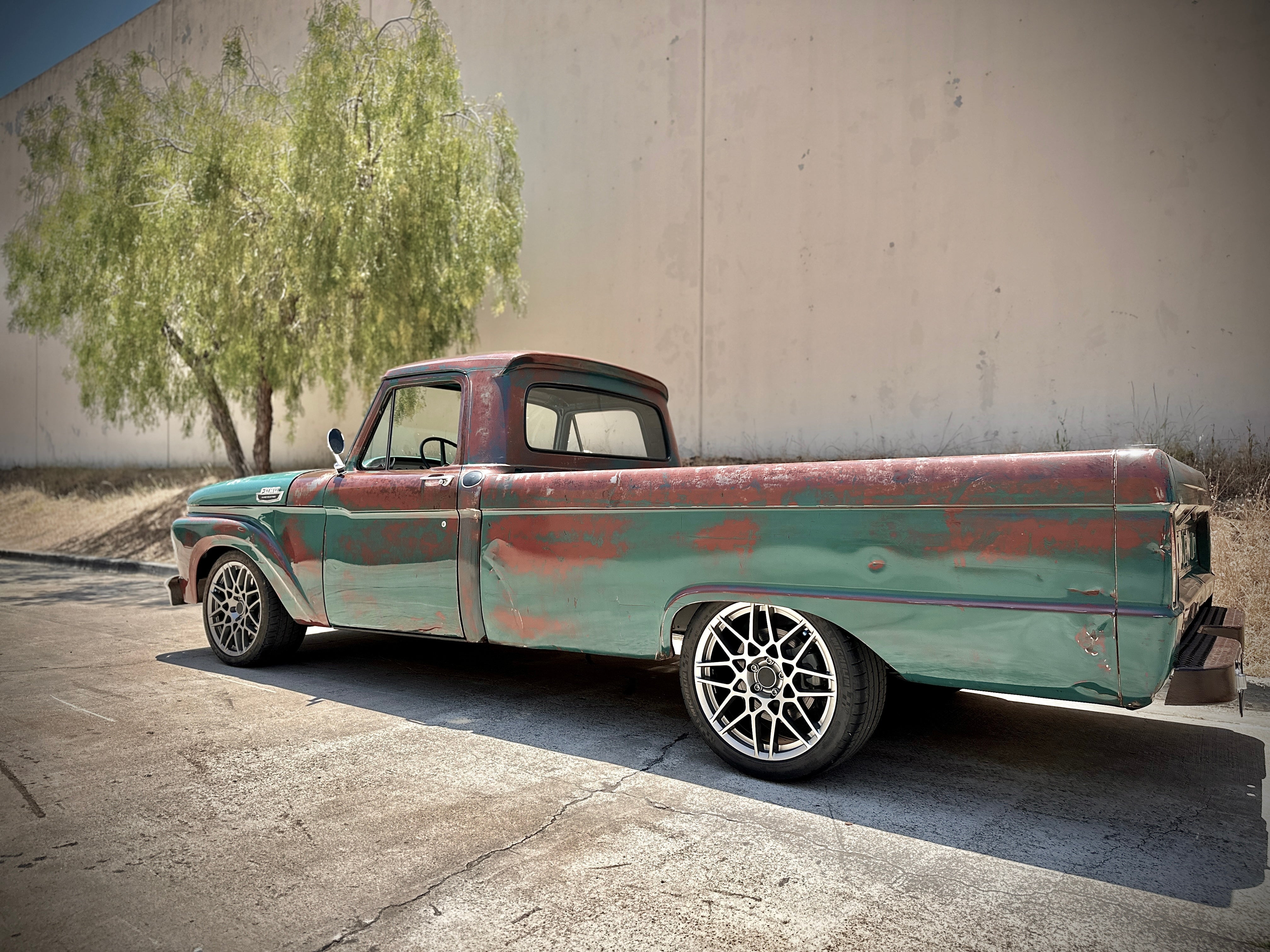

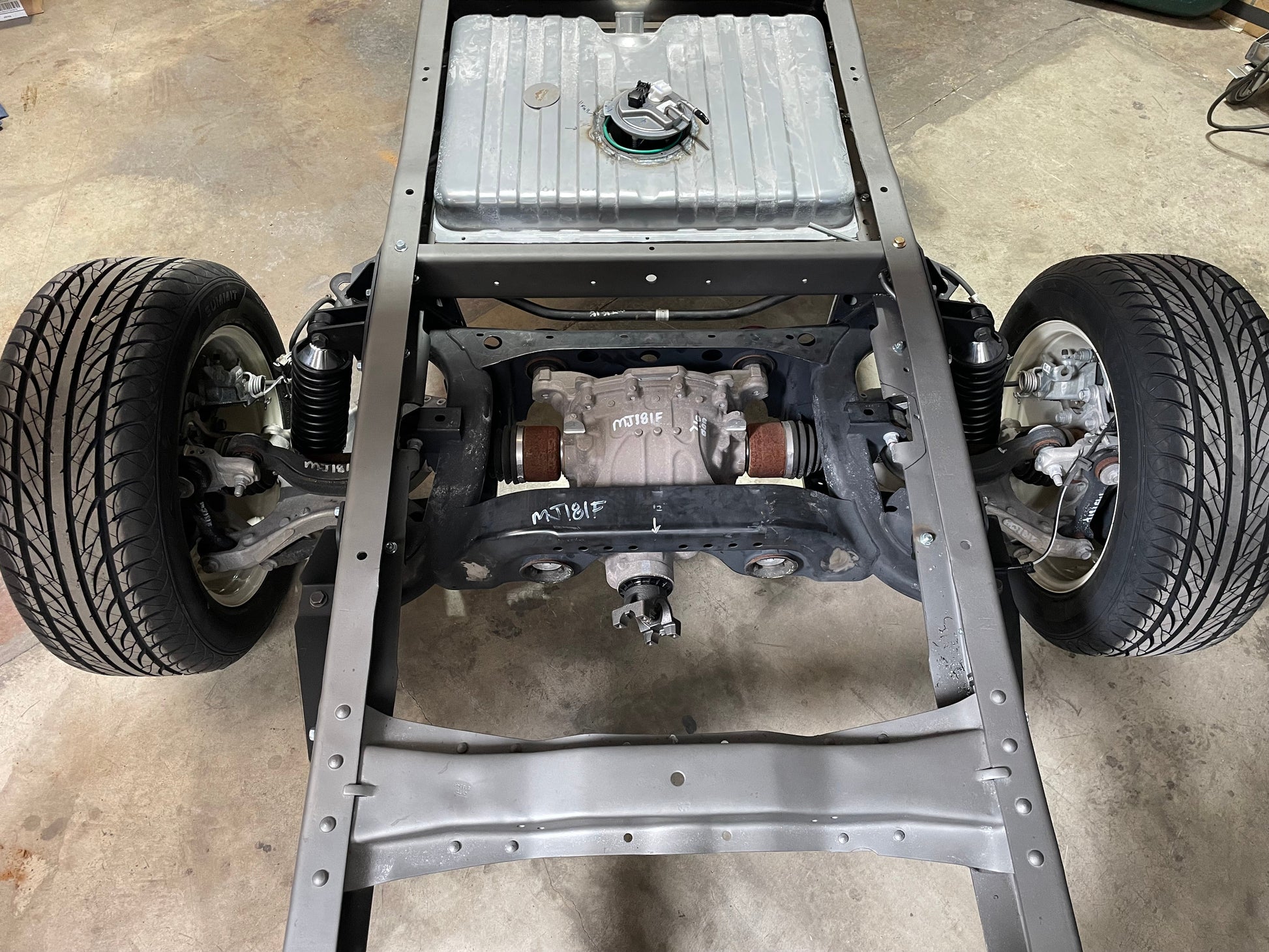

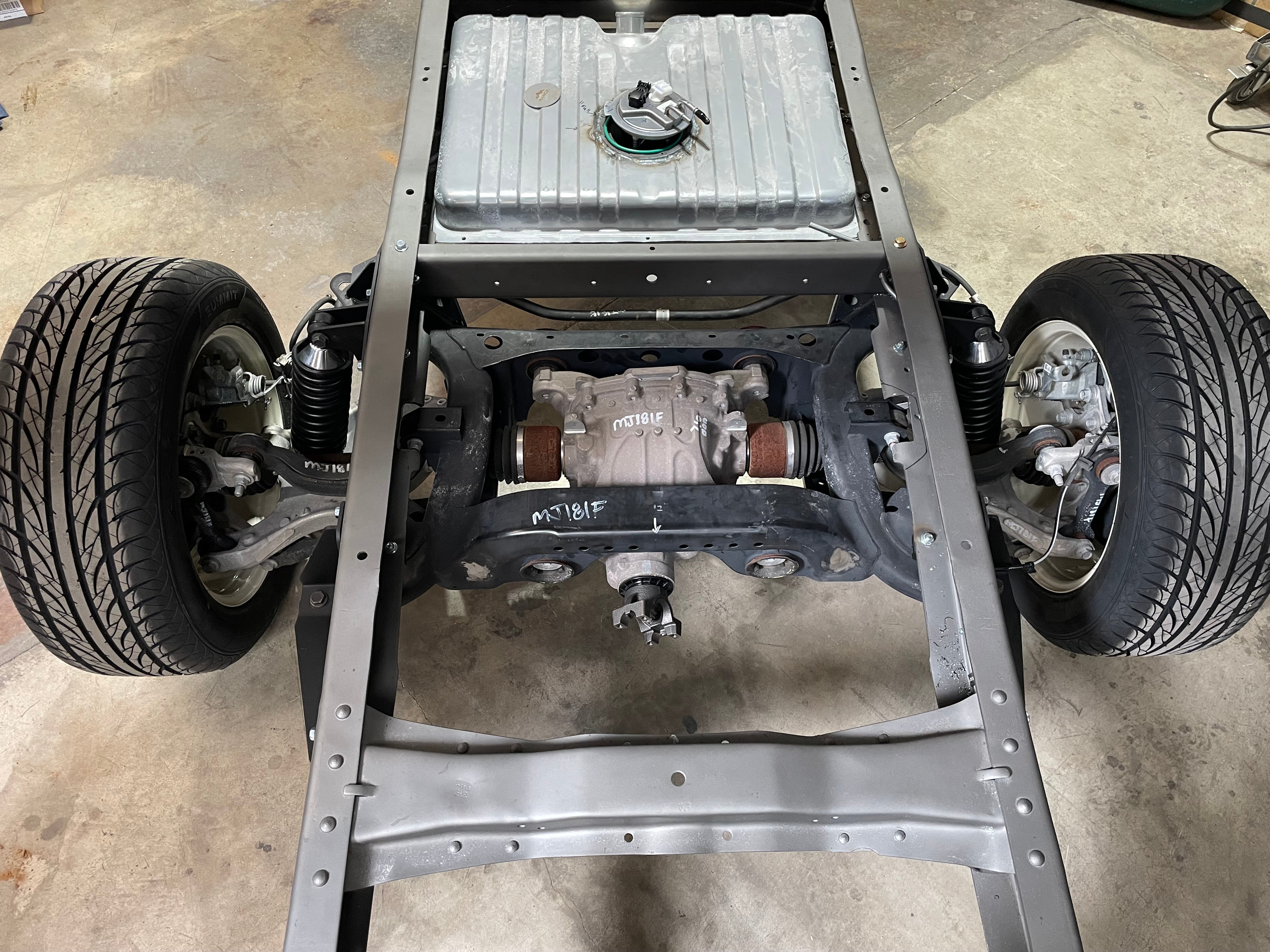

This kit is designed to allow the S-550 suspension to bolt to a F-100 (34" wide rear frame) using the factory subframe mounts on the 2015-2023 Mustang S-550 rear suspension. It also integrates mounts for a 12” coil-over. This setup allows for an unmodified bed and much lower than stock ride height, as well as modern, brakes, suspension, and a limited slip differential. The kit uses the leaf spring bracket holes to locate the assembly (be careful not to mangle the holes when you are removing the factory rivets!) and bolts to the side and bottom of the frame rails. A small notch in the bottom flange of the frame rail is the only cutting you need to do (to clear the upper arm). You will need to drill some holes for installation, but the brackets act as templates to keep the install simple and straight forward.

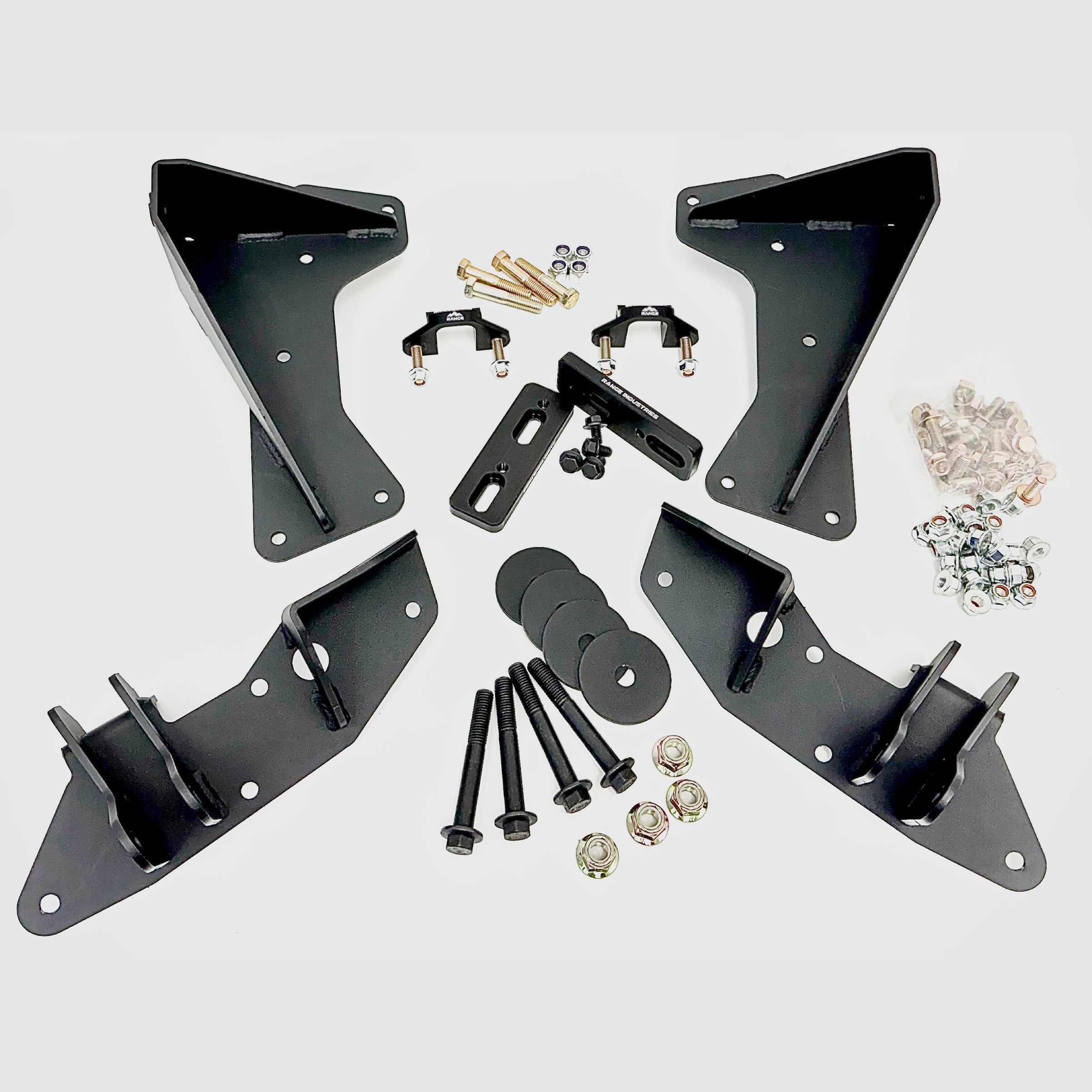

Kit contains all mounting brackets and hardware required to mount the 2014-2023 Mustang S-550 rear subframe to your F-100 frame. Coil-overs not included in kit.
Need a yoke to run a normal driveshaft with the S550 Rear Suspension? Click the link below!
- Range Industries S550 Driveshaft Yoke -
Install Overview:

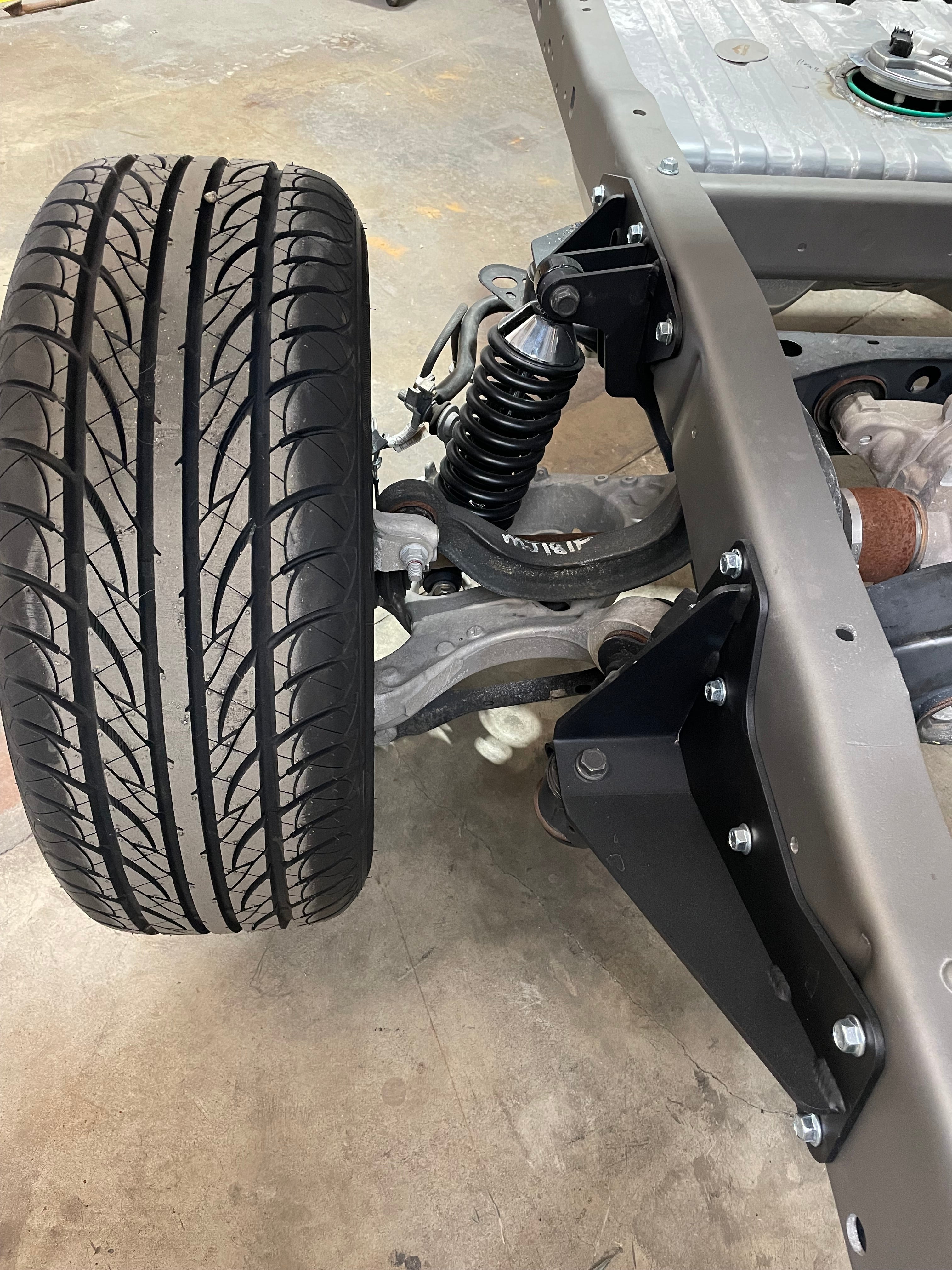

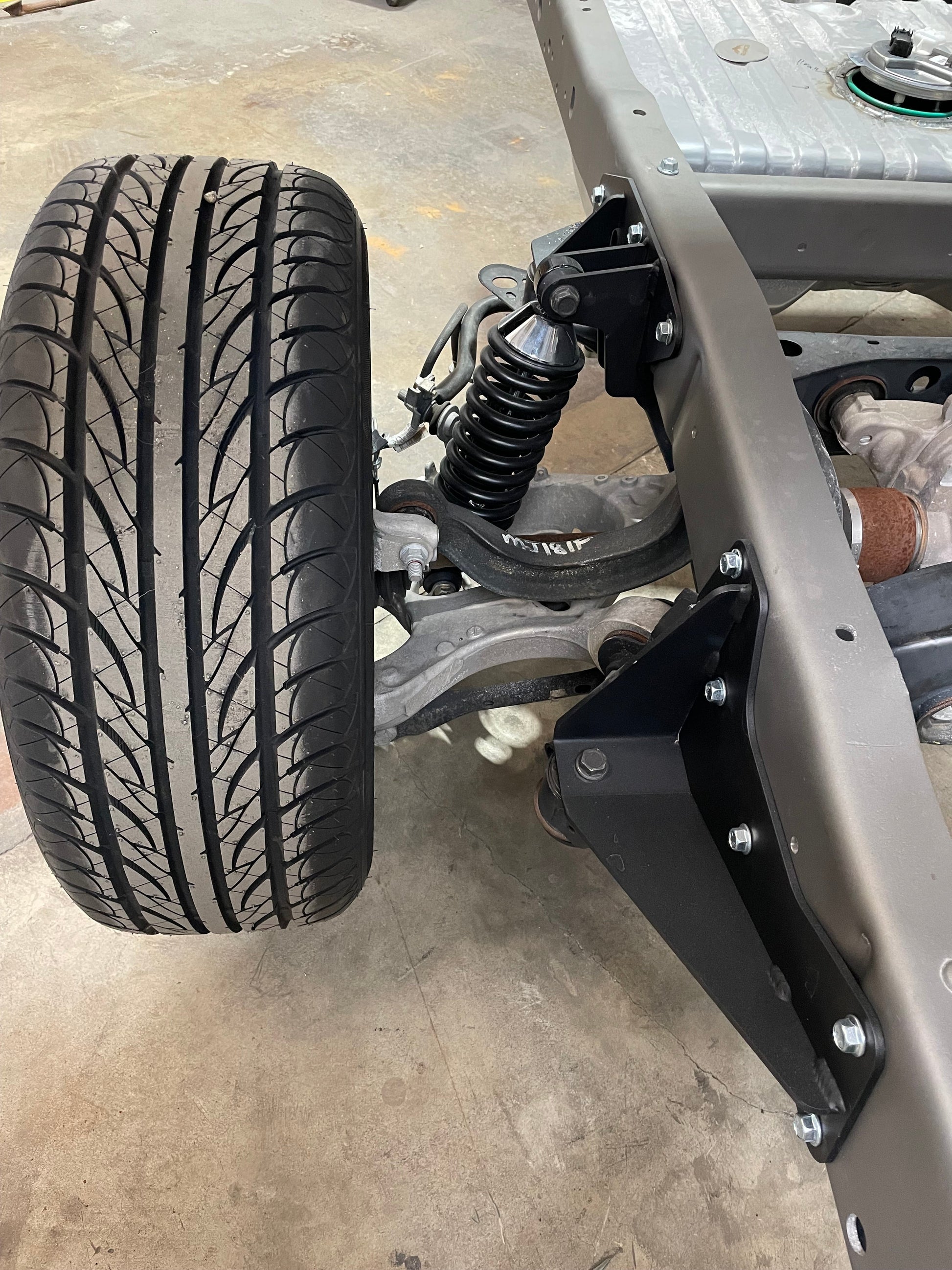

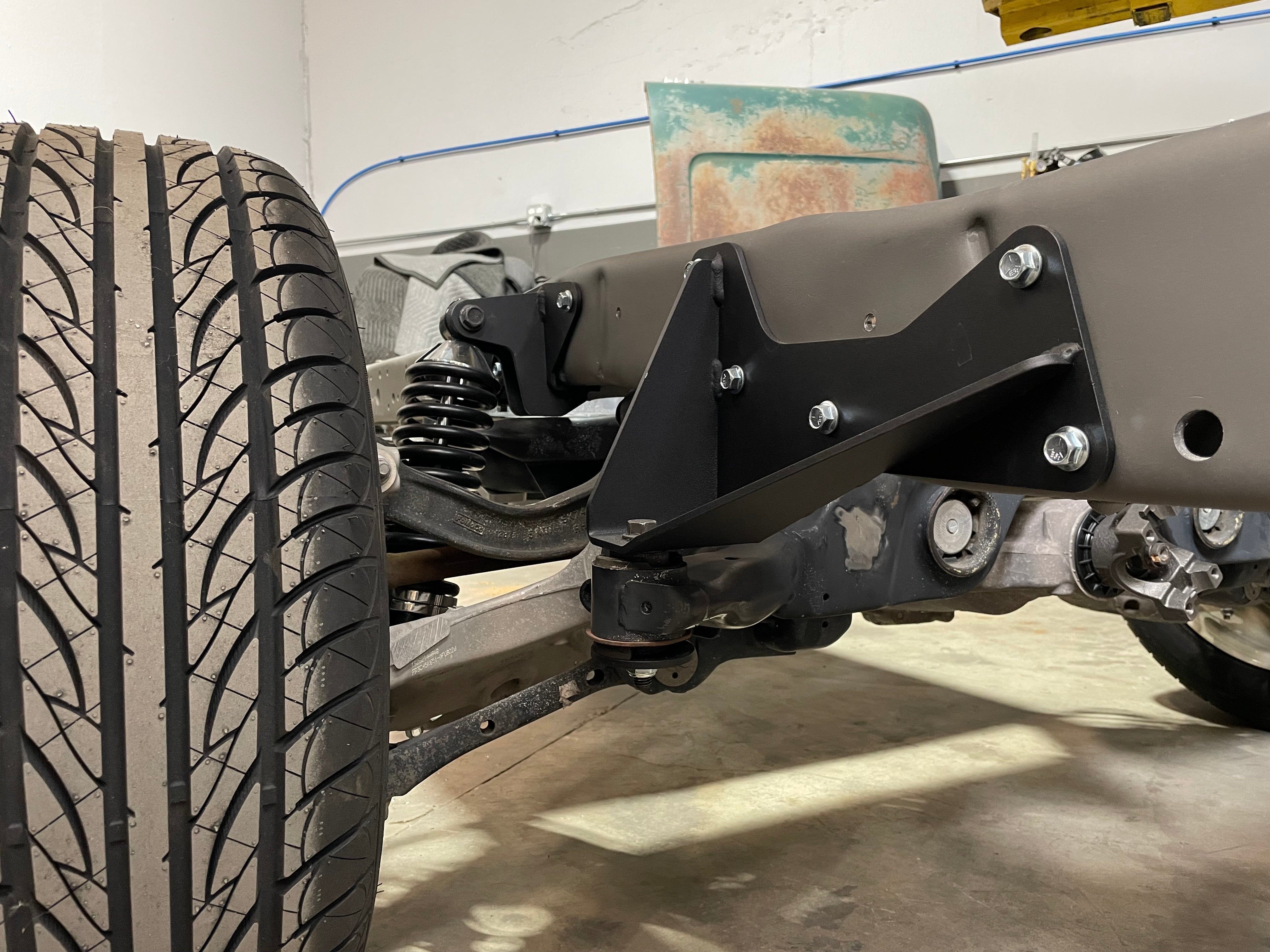

Install this kit by first removing the old suspension, including the leaf spring hangers. Then bolt in the front brackets using 2 of the leaf spring hanger bolt holes. At this point, bolt on the s-550 suspension to the front mounts, and mark & notch the bottom flange of the frame as required. Install the rear brackets to the s-550 subframe and clamp them tight against the bottom and side of the frame rails. Drill and install bolts to hold it in place, then remove the subframe to allow you to finish drilling and bolting the brackets in.

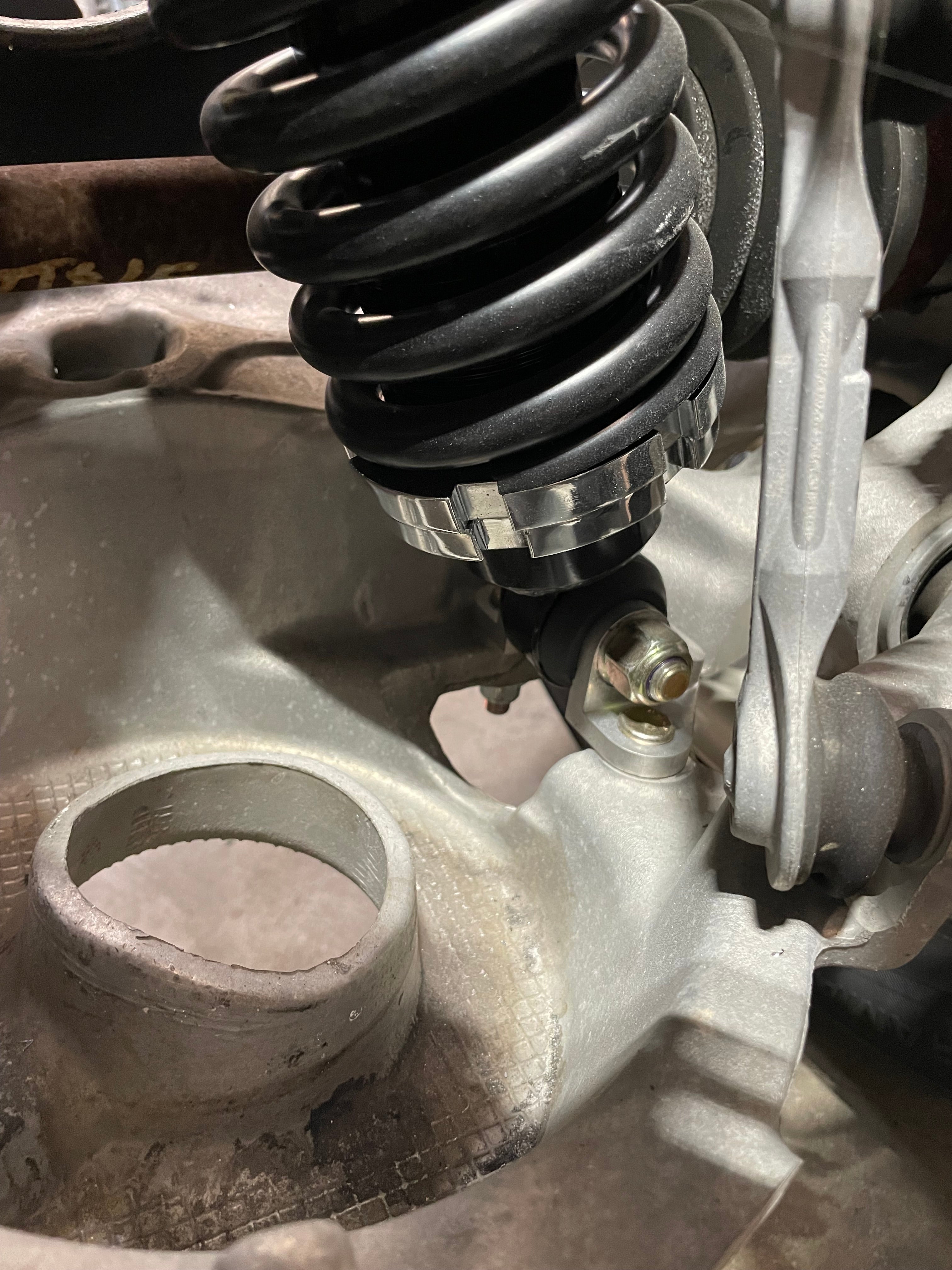

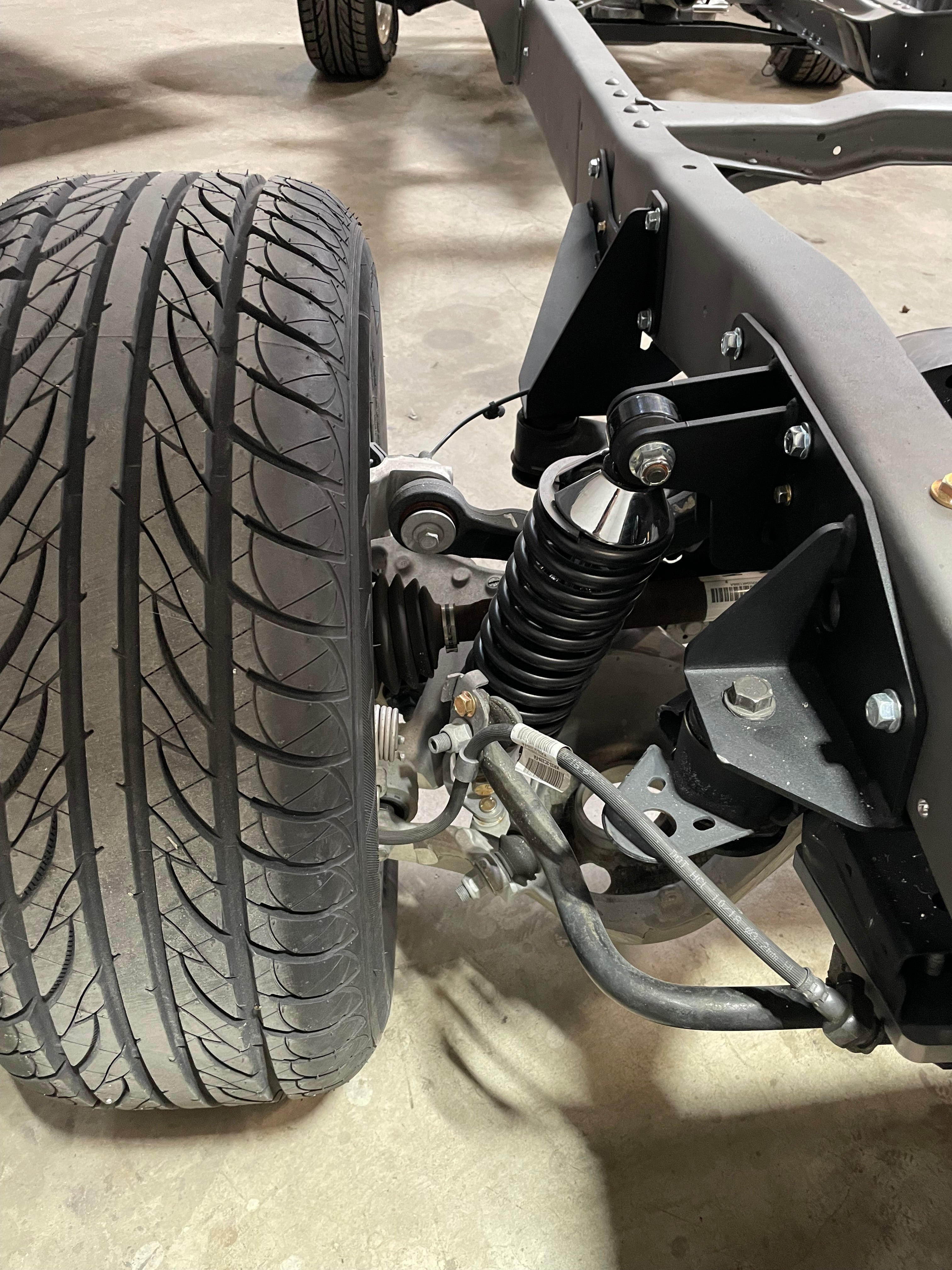

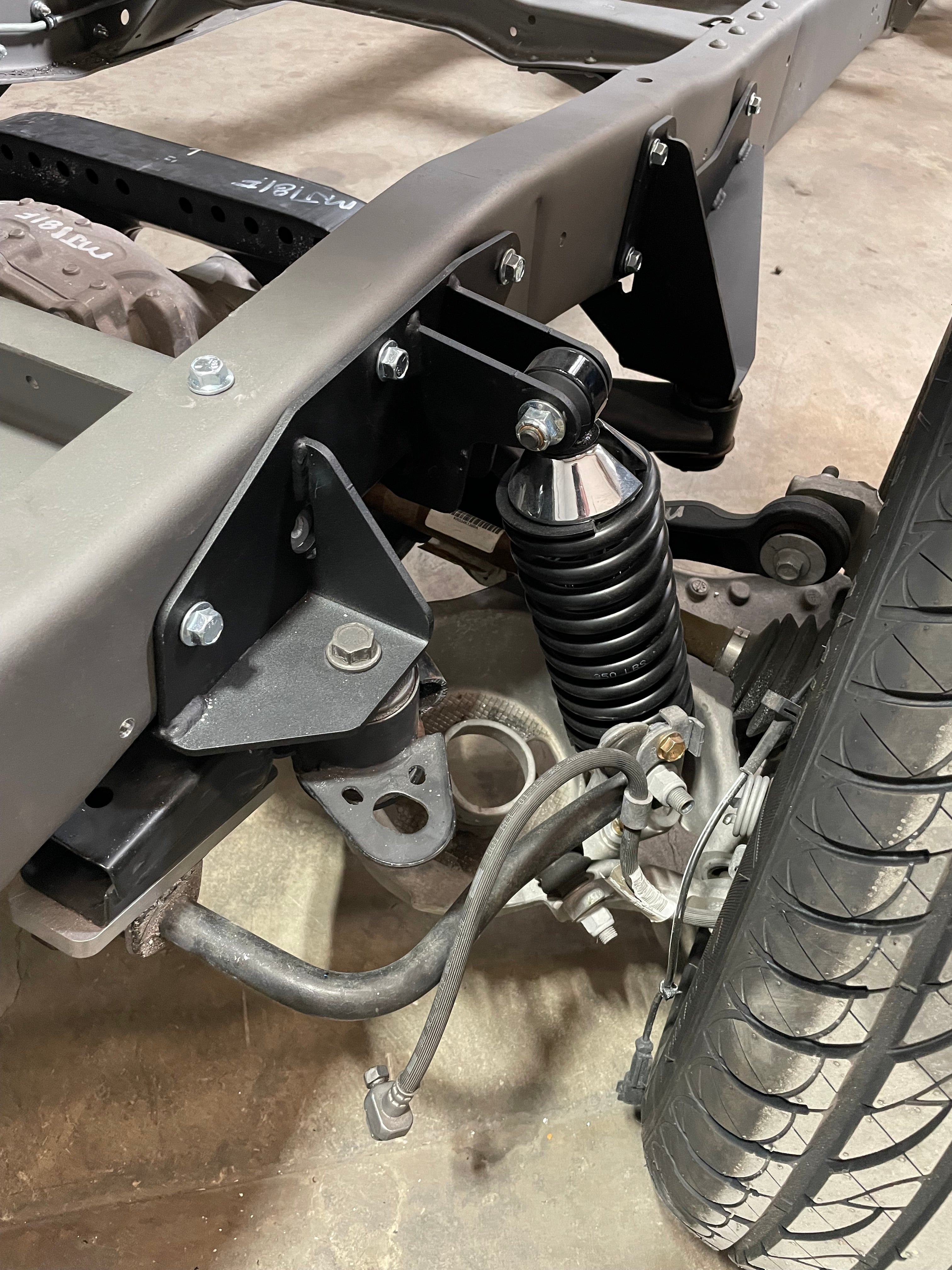

A machined shock adapter is provided for the lower arm to allow a standard coil-over to bolt in place. A bracket is also included to slide the sway bar backwards if needed to clear your coil-over. The kit is designed to fit a 12” coil over (~12” eye to eye at ride height). We recommend a 350-400 lbs./in spring. Please note, coil-overs are not included.
Enjoy your modern suspension, brakes, and limited slip!
Will these fit my car? We can only confirm fitment for the vehicles listed above pertaining to the tile, content, and description. For questions or concerns regarding fitment, reach out to us via phone or text. 📞(831)-222-0779
