1957-1978 Ford F-100 Bolt-In Crown Victoria Front Suspension Kit

In stock - 7 items available
SKU: 000-107-697
Regular price $695.00 USD
Regular price $750.00 USD Sale Sale price $695.00 USD

Product Details

  • Type Suspension Mounting Kit
  • Vendor Range Industries
  • SKU 000-107-697

Questions and concerns regarding fitment and availability? Reach out via call or text! ๐Ÿ“ž(831) 222-0779

Like this product? Share via the links below!

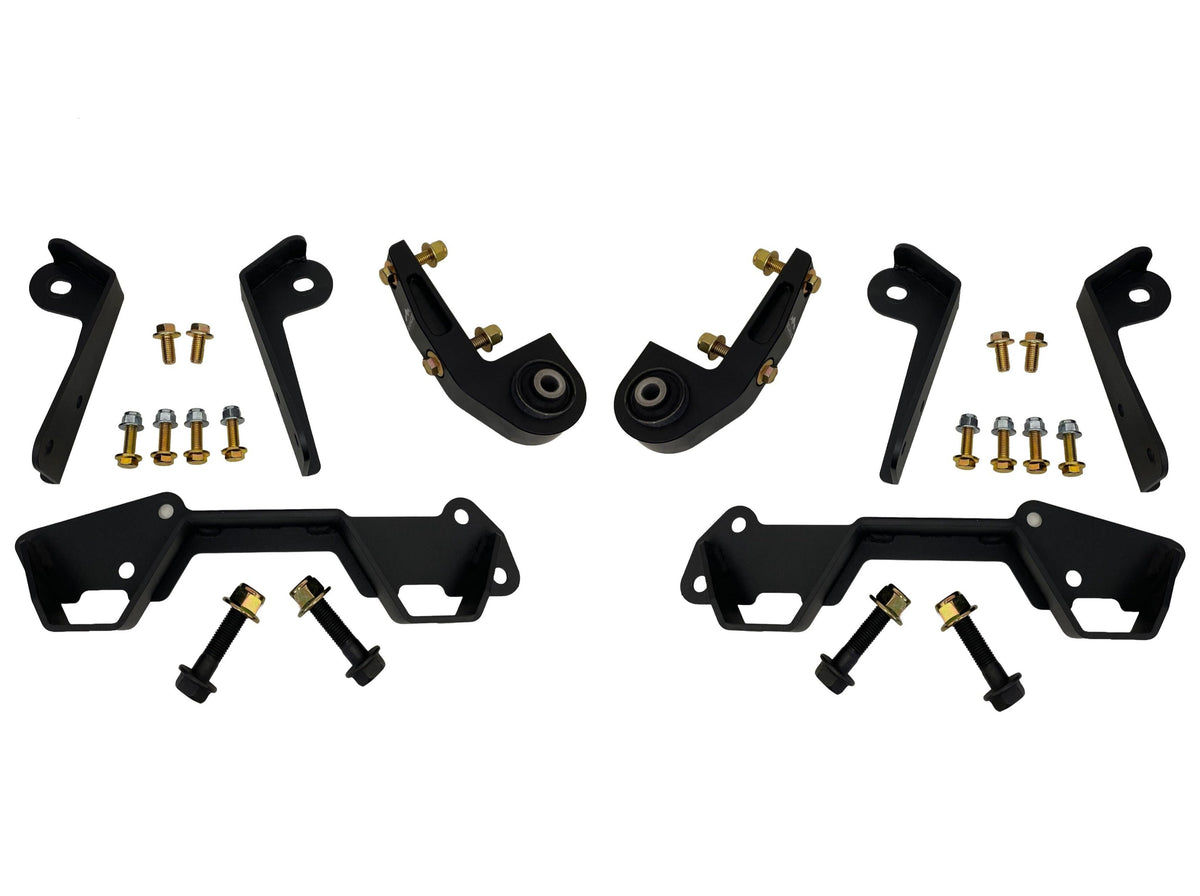

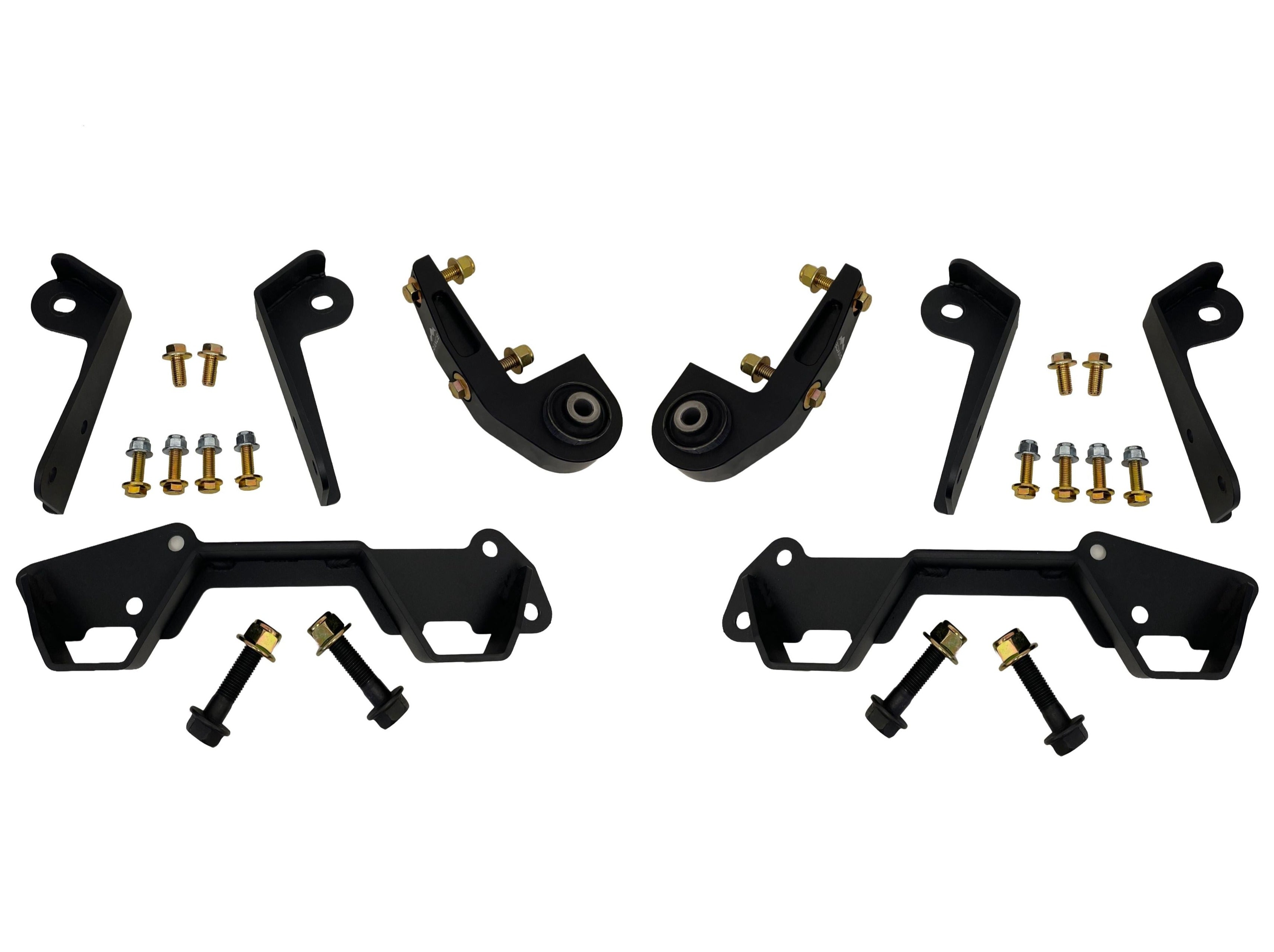

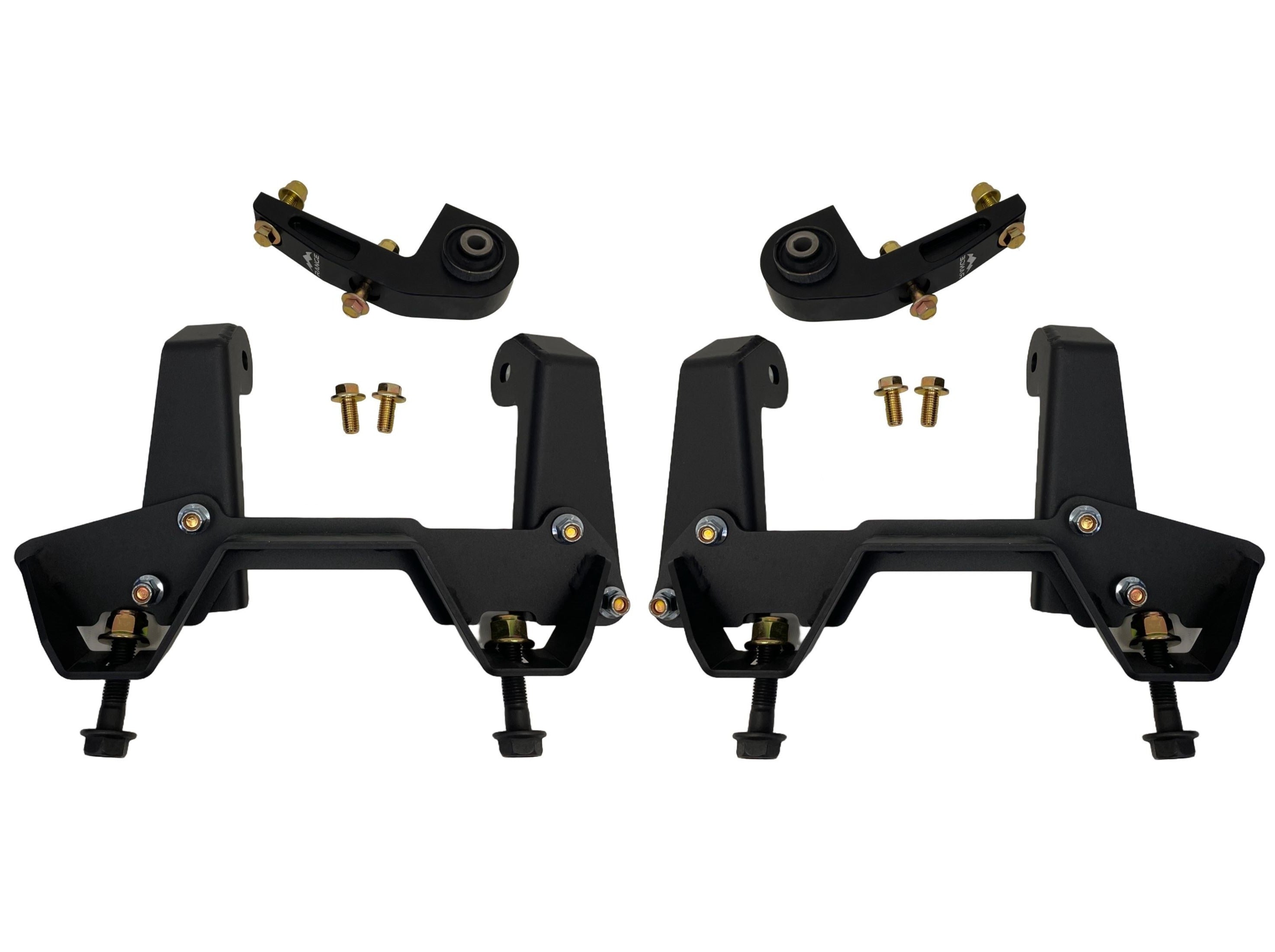

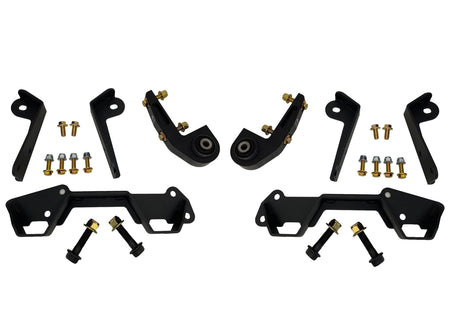

This bolt in kit is designed to mount the 2003-2011 Crown Victoria front suspension to trucks with 34โ€ outside to outside frame rails. It does not require welding, only drilling holes. It stiffens the factory frame where the crossmember mounts and ties the Crown Victoria suspension securely to your frame. This kit contains all brackets and hardware necessary for install. You will need to cut/grind away your old front suspension brackets.

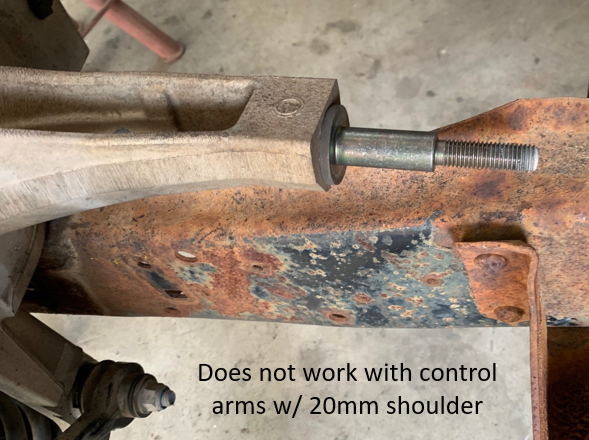

Fitment Note: Not compatible with lower control arms with 20mm shoulder on stud.

ย  INSTALL GUIDE

Install Notes:

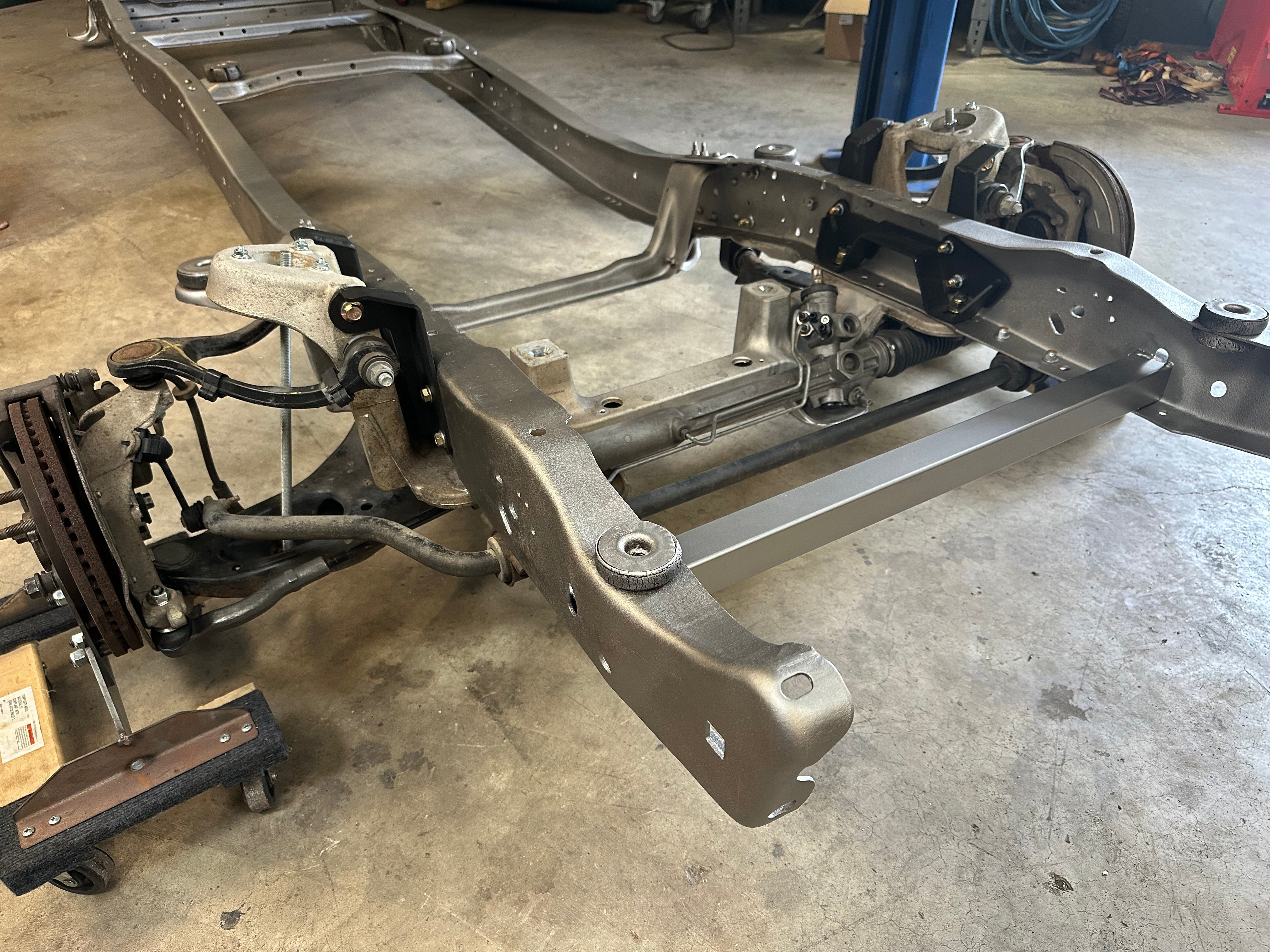

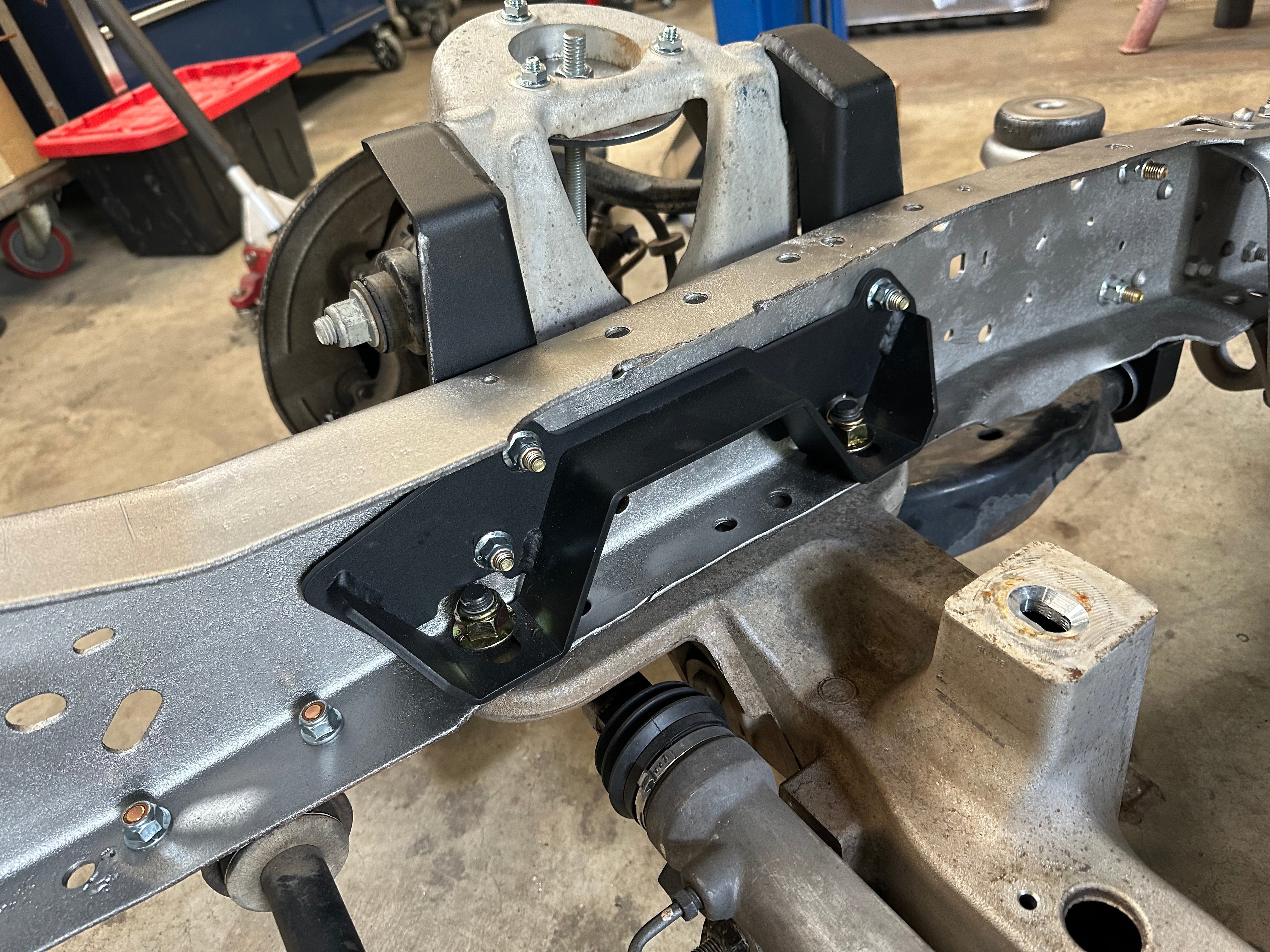

Install this kit by first cutting all old bracketry out of the way. ย Also pop out the factory assembly/alignment pins from the CV crossmember. Then place the crown Vic suspension under your frame and check wheel/fender alignment. Once you are happy with wheel placement, make sure it is centered and square, then mark the 5/8โ€ holes in the frame rail. We recommend drilling to ยพโ€ to have some wiggle room. Now install the crossmember, inserting the inner frame brace in place. Push it tight against the inside of the frame and tighten the mounting bolts. You can now use the bracket as a template to drill 4x 1/2โ€ holes in the vertical web of the frame rail to bolt the upper brackets in place. Use the M10 bolts and nuts to attach them to the frame, and the M12 bolts to attach to the CV crossmember. Once the crossmember is installed, bolt the rear mounts to the control arm and use them as a template to drill ยฝโ€ holes in the frame rails for the M12 mounting bolts. Install using the M12 fasteners and nuts, Use 2 shims per side to set your caster.
