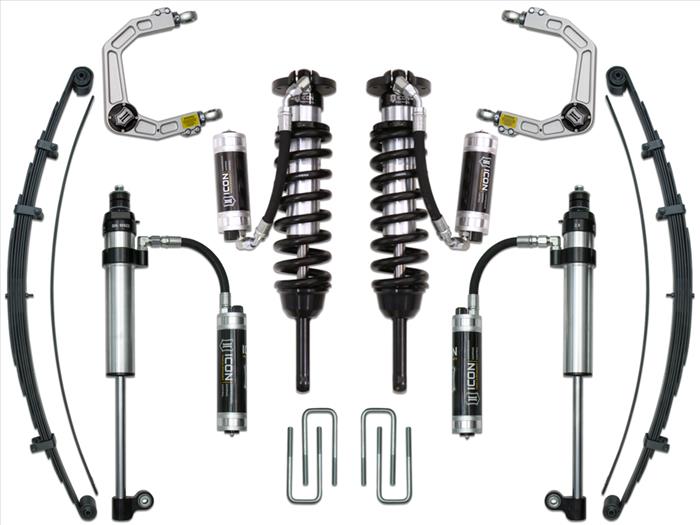

05-15 Tacoma 0-3.5 16-23 0-2.75 Stage 9 Suspension System, Billet UCA (K53009)
Regular price
$5,912.70 USD
Couldn't load pickup availability
Product Details
- Type Lift Kit
- Vendor Icon Vehicle Dynamics
- SKU K53009
Questions and concerns regarding fitment and availability? Reach out via call or text! ๐(831) 222-0779
Like this product? Share via the links below!
ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems Stage 9 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Series shock.
The Stage 9 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle โfeelโ through the range of travel, and are height adjustable from 0-3.5โ for 2005-2015 models or 0-2.75" for 2016-Up models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an โunloadedโ vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 9 system includes a unique 2.5 Aluminum Series CDC remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. This shock also features ICON's CDC technology for simple compression adjustability, and a large ten inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.
This system features billet aluminum upper control arms with ICON's patentedย Delta Joint. Theย Delta Jointย is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. Theย Delta Jointย features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of theย Delta Jointย while at the same time allowing for noise-free operation. What makes theย Delta Jointย unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
FEATURES & BENEFITS
- Increased wheel travel and ride quality over stock
- FK Rod End bearings for extended longevity and minimal deflection
- Shocks are fully rebuildable and revalveable
- Bolt-on system means no cutting or welding necessary for install
- โICON 1Kโ tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Vehicle-specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series remote reservoir RXT rear shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts
- Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT CDCV Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75โ Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00โ Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00โ Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75โ
- APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
- APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25โ BEYOND MAXIMUM
- TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
- Ships in Multiple Boxes
SYSTEM COMPONENTS:
ย
- 58735C (QTY: 1) | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
- 58550DJ (QTY: 1) | 05-UP TACOMA BILLET UCA DJ KIT
- 158505 (QTY: 2) | 05-UP TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
- 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
- 57826CP (QTY: 1) | 05-UP TACOMA RXT REAR 2.5 RR CDCV PAIR
